3 axles fuel semi-trailer truck,50cbm semi-trailer for sale

Specifications

3 axles fuel semi-trailer truck,50cbm semi-trailer for sale
carbon steel ,stainless steel can choose
manufacturer directly



3 axles fuel semi-trailer truck,50cbm semi-trailer for sale
carbon steel ,stainless steel can choose
manufacturer directly sale



Feature& Fuction

It takes advantage of compression resistant tank for transporting and laying up the liquefied , which is the special-purpose vehicles(For example propane , propylene, liquid ammonia, liguid nitrogen, liquid hydrogen, liquefied netural gas , liquid state sulphur dioxide and so on ).

Tank shaped use the advanced welding technology, end socket arc butt welding, and the once-forming of  composite steel-plastic technology. Equipped with active and passive safety devices to meet an emergency and can load and unload the material in long distance and completely close condition. Be applied to transport varied oil, feul and chemical material, such as natural gas, liquefied petroleum gas, liquefied ammonia, carbon bisulfide, epoxy ethane, gas, butane, dimethylmethane, propylene, etc. Cross section of tank could be oval, round and round-square. heat insulation and heating device is optional.



Specifications

<

Product model,name	CLW9403GYY transportation semi-trailer truck(transportation media:Fuel)
Total weight(Kg)	40000	Tank capacity(m3)	50.5
Payload (Kg)	32830	Overall dimension(mm)	13000×2500×3977
Curb weight(Kg)	7170	Tank size(mm)	inner diameter×wall thickness×length:2470×12×12840
Tank material	Q345R	Design pressure(Mpa)	1.61
Design temperature(°C)	50	Filling capacity per unit(t/m3)	0.42
Tank corrosion allowance(mm)	1	Axle load(Kg)	-/24000(three axles)
Approach/departure angle (°)	-/16	Front/rear hang(mm)	-/1870
Steel spring number	-/7/7/7	Tractor	90#
Number of axles	3	wheelbase(mm)	7200+1310+1310
Tires No.	12	Tire specification	11.00R20 12PR
ABS	yes	Rear track(mm)	1840/1840/1840
Configuration instructions	Single out the liquid,doulbe side loading and discharge,Double valve boxes,single tool box,safety valve,thermometer,pressure gauge,emergency shut-off valves,fire extinguisher , anti-static grounding tape.

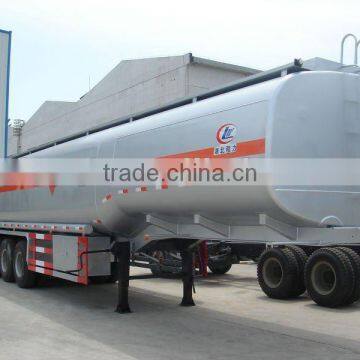

Product pictures:

Notes:

A. Delivery time: Normally with 10-25days after received your first deposit.
B. Payment item: Normally 30% in advance and the balance should be paid before the shipment after your checking and confirmed.
C. Guarantee time and services: from the vehicles safely arrived at destination and under proper operation situation, normally 12 months, but the whole life supply maintenance
