Specifications
20GP or 40GP container carrier semi trailer truck1Factory direct sale, best price
2Certificate ISO9001
3loading 40T
4New de
20GP or 40GP container carrier semi trailer truck
factory direct sale,best price
1. Certificate ISO9001
2. 3 axle, 12 wheels
3.loading capacity 40T
4.length 40ft
5.new design heavy duty
FEATURE&FUNCTION :
Flat Transporter used to load container , flat construction machinery, excavator, forklift, harvesting and other construction machinery transport, car rear with rear ladder, with legs, 6mm thick floor is checkered.

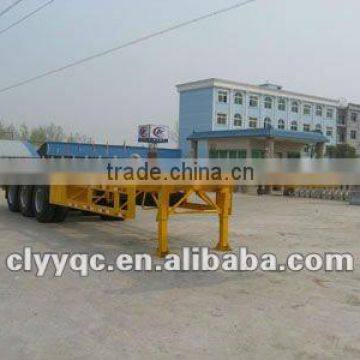

product image:
Main parameter
Triple Axles 40ft Container Skeletal Semi-trailer
1>Axle numbers:3
2>Max loading capacity:40000KGS
3>Usage: loading one
Name: Double Axles 40ft Container Skeletal Semi-trailer
Model: CLW9401TJZG
Oversize: 12420*2480*1405 mm
Weight
(1) Complete vehicle curb mass: 4500 Kgs
(2) Capacity load: 40000 Kgs
(3) Total weight: 45000 Kgs
Frame: Double main beams (Q345B/ST52-3), it is high intensity, 4 container locks will meet requirement of loading one 20GP or 40GP container.
Running gear
(1) Axle: 3 units of 12 tons axle
(2) Suspension: Double axles leaf spring suspension system,
leaf spring: 7x16x90mm
(3) Wheel rim: 7.5-20
(4) Tire: 10.00-20x9 (Spare tire 1pc included)
Kingpin : 2" Bolting type
Landing gear : Double-speed linkage,
Braking system : Double pipe line air brake, WABCO brake valve, first axle is 30 air chamber, rear axle is 30/30 air chamber.
Electrical system : 24V, seven core socket, lights accord to standard in China.
Others
(1) Articulated frame spare tire bracket: 2 units
(2) Tool box: 1 unit
(3) One set of drivers tool: 1 Tire spanner, 1 Gudgeon sleeve, 1 Cranking bar
(4) Semicircular plastic mudguard
(5) The height of the fifth wheel: 1350mm
(6) The space from the front to the kingpin: 1350mm
(7) Others according to LOHRs standard
Surface treatment:
(1) Shot blasting for complete semi-trailer
(2) Painting: Zinc-rich prime coat and final coat, color accord to the requirement of customer.
Payment terms and delivery:
Delivery date: 7-10 days
Payment terms: 30% TT as deposit and 70% TT upon receipt of B/L copy
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
The picture and parameter mentioned above is only for reference. The Specific product will be produced according to your order.
For more information about the delivery, warranty,payment,more specific details , please don't hesitate to contact with us!
International Trade Manager Rokc Hwang
Tel.0086-13886861936 0086-0722-3819709 Fax 0086-0722-3819809
Official website international
Hubei Chengli Special Automobile Co.,Ltd
Factory Address: Chengli Auto Industrial Park, Suizhou City, Hubei Province, China
