Dongfeng Tianjin 10ton refrigerator cooling van truck for meat and fish
3ton to 5ton refrigerator cooling van truck specification as attached
Main specification | |||||||||||
Product model and name | JDF5121XLCDFL Refrigerator truck | ||||||||||
Gross weight(Kg) | 11900 | Drive type | 4x2 | ||||||||
Payload(Kg) | 4850 | Overall dimension(mm) | 8550X2500X3850 | ||||||||
Curb weight(Kg) | 6855 | Cab seats | 3 | ||||||||
Approach/departure angle(°) | 20/12 | Front/rear hang(mm) | 1430/2420 | ||||||||
Axle No. | 2 | Wheelbase(mm) | 4700 | ||||||||
Axle load(Kg) | 4400/7500 | Max speed(Km/h) | 90 | ||||||||
Chassis specification | |||||||||||
Chassis model | DFL1120B | Manufacturer | Donfeng Motor Co.,Ltd | ||||||||
Brand name | Dongfeng | Dimension(mm) | 8290×2370×2760, | ||||||||
Tyre specification | 9.00-20 | Tyre No. | 6 | ||||||||
Steel spring number | 7/9+6 | Front track base(mm) | 1880 | ||||||||
Fuel type | Diesel | Rear track base(mm) | 1800 | ||||||||
Emission standard | Euro 3 | Transmission | 6 forward gear,1 reverse gear | ||||||||
Cab | D530 flat one and half row flat cab, electric window regulator, central control door lock, PXD-B dashboard with air condition | ||||||||||
Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) | ||||||||
B170 33 | Dongfeng Cummins Engine Co.,Ltd | 5900 | 125(170HP) | ||||||||
Performance | |||||||||||
Van body size | 6000X2250X2300 | Load capacity(TON) | 10 | ||||||||
Lowest refrigeration temperature(℃) | -18 Centigrade | ||||||||||
Feature and Application | |||||||||||
The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed. | |||||||||||

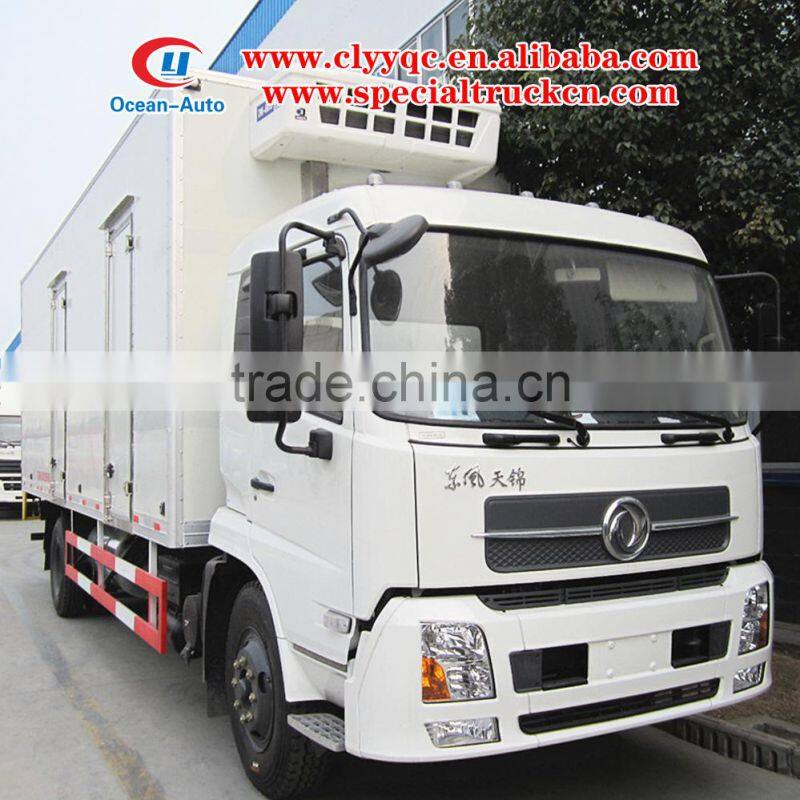

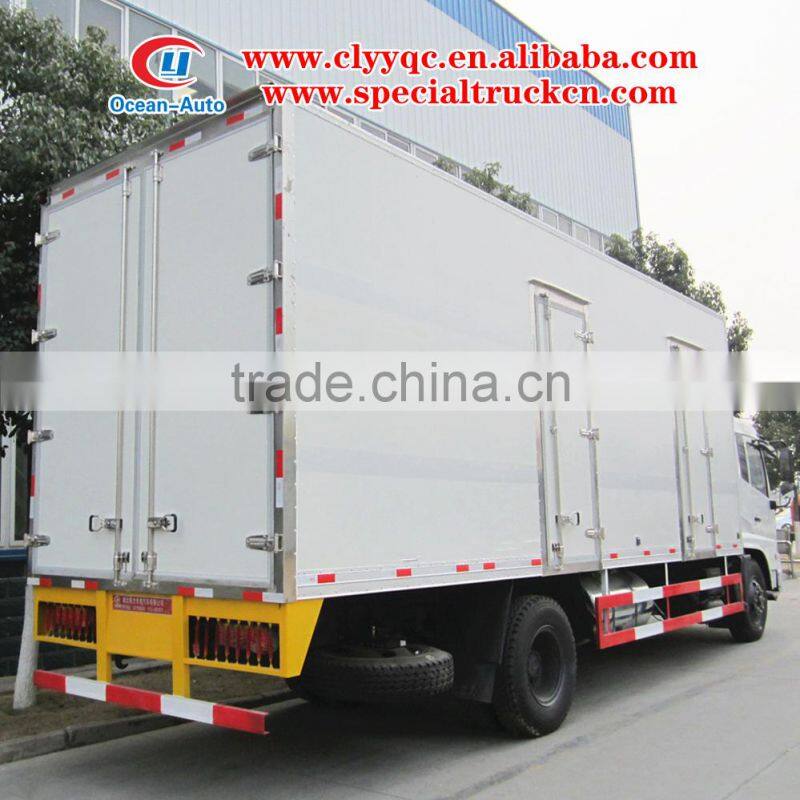

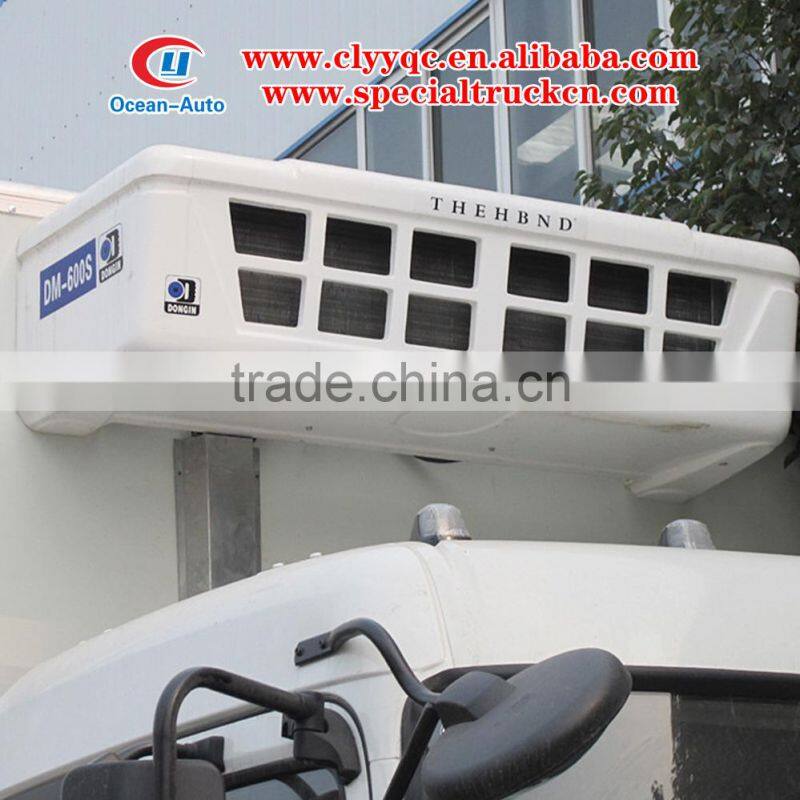

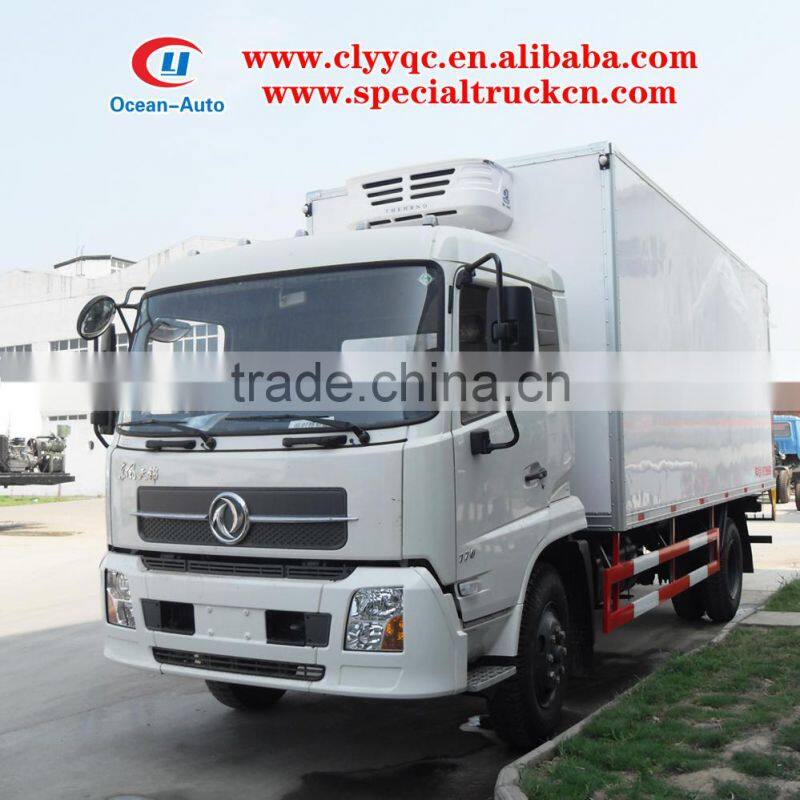

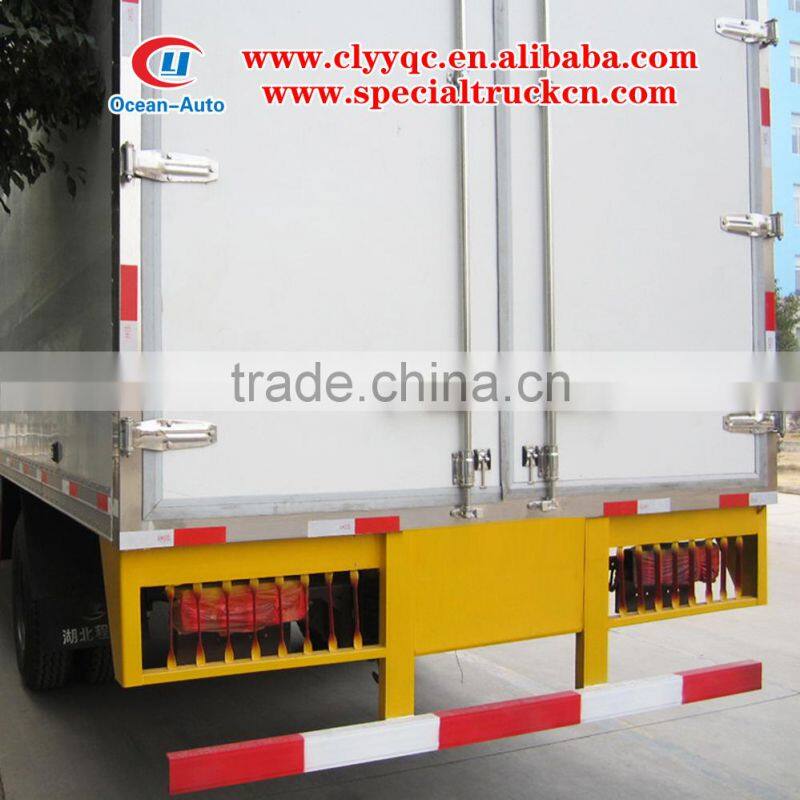

10ton refrigerator cooling van truck image
| A.Delivery time | ||||||||
| Usually within 10 to 25 days after getting your deposit. And the accurate time depends on your QTY. | ||||||||
| B.Terms of payment | ||||||||
| 30% of contract amount must be paid by T/T before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment. | ||||||||
| C.Truck warranty to solve our clients’ worries when purchasing | ||||||||
| The warranty period is one year or 25000KM that drove under normal operation and control since our clients get the trucks. And we can supply maintenance for the whole life. |
1.About the package of our trucks,usually it is nude that covered with wax. And it also can be packed as your need. 2.About the shipping,there are many ways,such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request. | ||||||||
