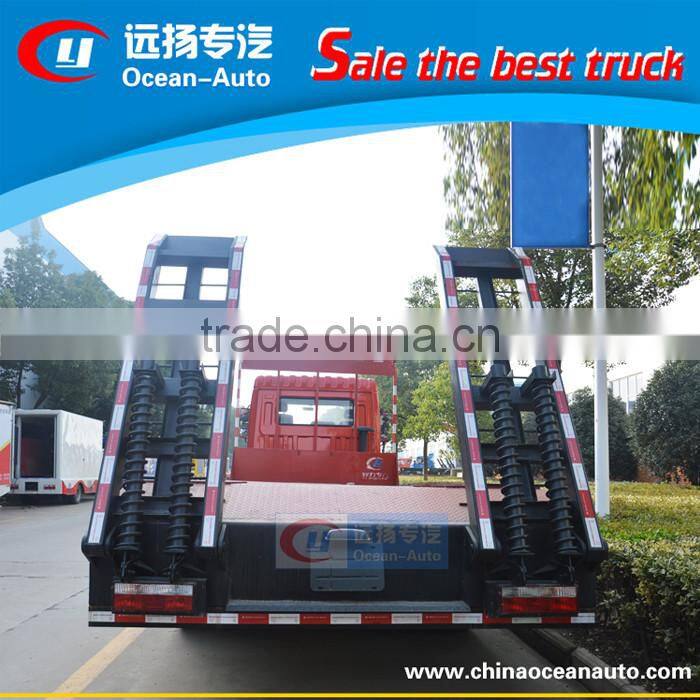

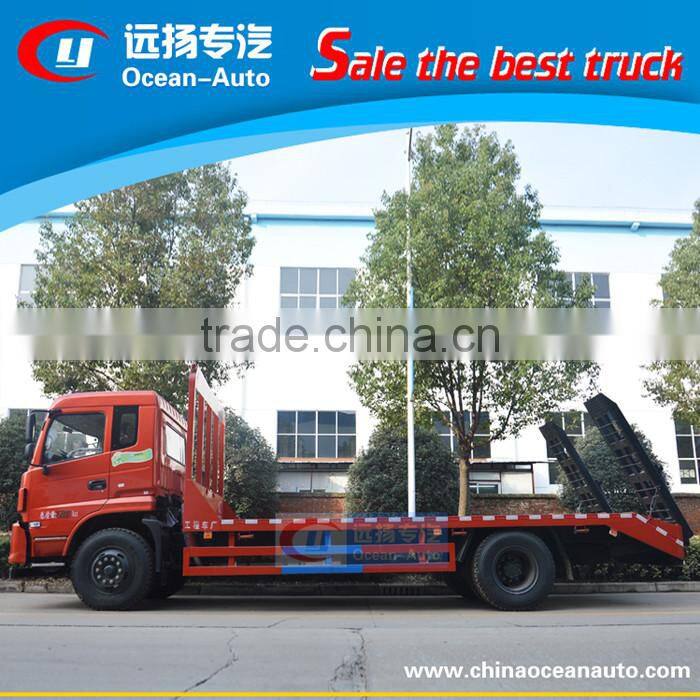

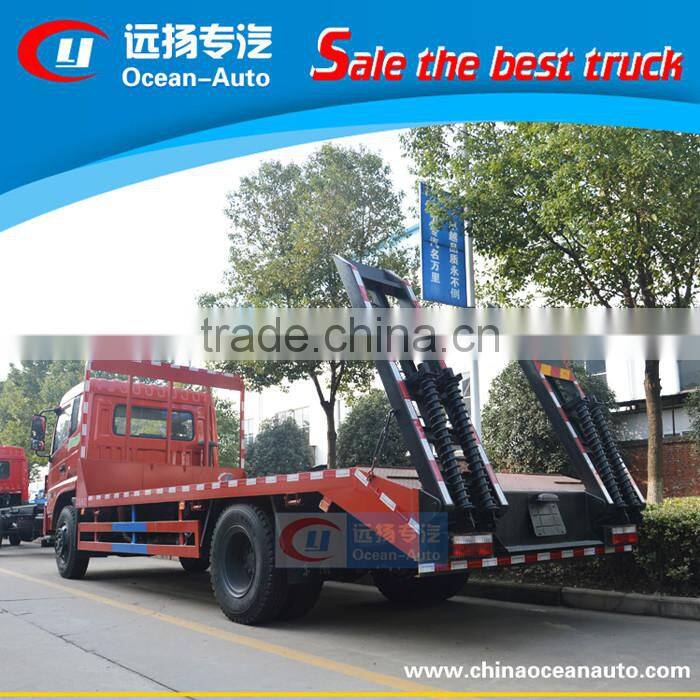

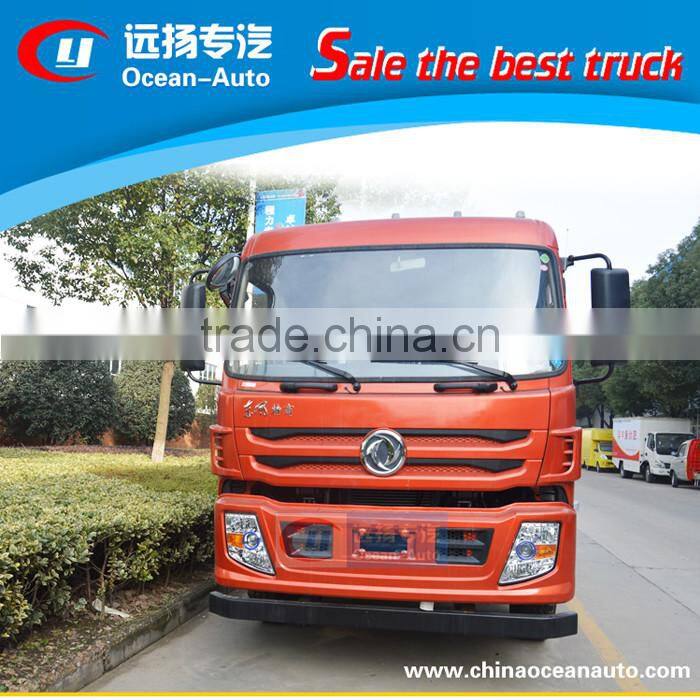

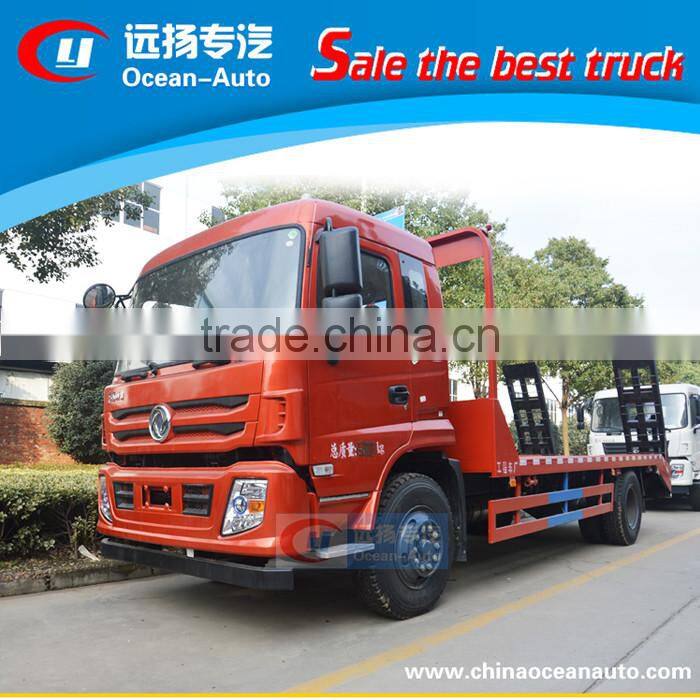

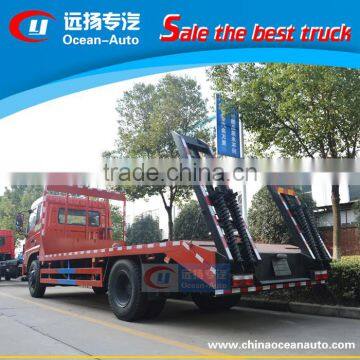

Chinese Famous Brand New Flatbed Truck 15 tons Excavator Transport Truck
Flatbed truck, also called construction machinery transportation truck, flat bed truck,flat deck truck, tow truck, is mainly used to transport some machines like excavators, loaders, harvester and other combined and non-removable objects. Flat bed truck is common in life, widely used in factories, construction and other large-scale production or project.The bearing capacity of the truck is very strong, making it played an important role in the process of economic development. It can suitable for all kinds of road conditions.
1.Technical Specification
[Main specifications] | ||||||
Product model,name | Flatbed truck | |||||
Gross vehicle weight(kg) | 15900 | Drive type | 4 * 2 | |||
Payload(kg) | 9000 | Overall dimension (mm) | 9000×2500×2850 | |||
Curb weight(Kg) | 6000 | cab seats (man) | 3 | |||
Approach/departure angle (°) | 23/11 | Front/rear hang(mm) | 1450/2450 | |||
Number of axles | 2 | Wheelbase(mm) | 5100 | |||
Axle load(Kg) | 5950/9950 | Max speed(Km/h) | 90 | |||
Loading bearing surface dimension(L*W mm) | 6600*2300 | |||||
[Chassis specifications] | ||||||
Chassis model | EQ1168VFJ1 | Manufacturer | Dongfeng Motor Corporation | |||
Brand name | Dongfeng | Overall dimension (mm) | 8900×2470×2850,3000 | |||
Tire specification | 10.00R20 | Tires No. | 6+1(spare tire) | |||
Steel spring number | 9/10+8 | Front track(mm) | 1920,1960 | |||
Fuel type | Diesel | Rear track(mm) | 1860 | |||
Emission standard | Euro IV | Transmission | 8JS85E | |||
Cabin | flat,one and half row flat tilt cab, with power steering. Air conditioning can be equipped if customer requirement. | |||||
Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) | |||
YC6J180-46 | Guangxi Yuchai Machinery Co.,Ltd | 6494 | 132 | |||
[Functions] | ||||||
Mainly used for transport for excavator, wheel loader, harvest ect undisassemble machines. | ||||||
3.Quality
The above goods shall be in accordance with the Manufacturer’s standards and Chinese export standards.
4.TIME OF DELIVERY
Within 10-25 working days from the receipt date of deposit payment.
5.GUARANTEE PERIOD
The guarantee period for all equipment/accessories and spare parts shall be valid 12 months from Shipment date or 10000klm.
6.Packing and shipping
(1) About the package of our trucks,usually it is nude that covered with wax. And it also can be packed as your need.
(2)About the shipping,there are many ways, such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request.
7.Terms of Payment:
30% of the contract value should be paidin advance, remaining 70% payment shall be paid upon notification of completion and inspection certificate.
Customer visite
For more information,please feel free to contact me! We will do our best to work with you to get the job done.
