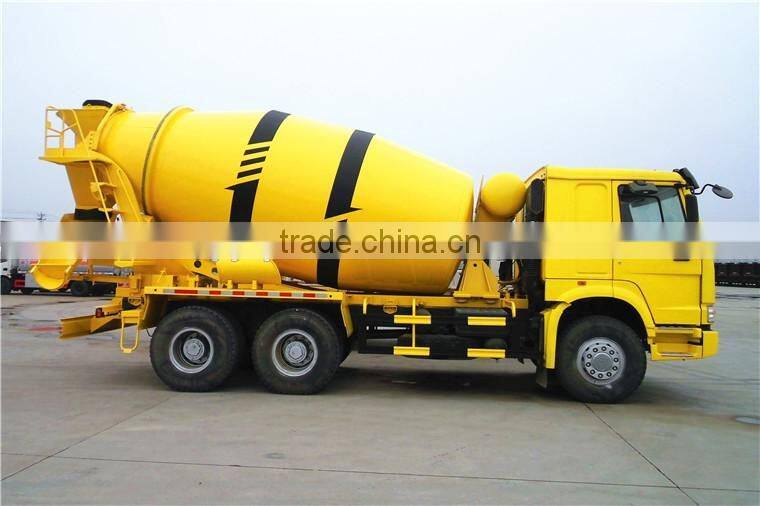

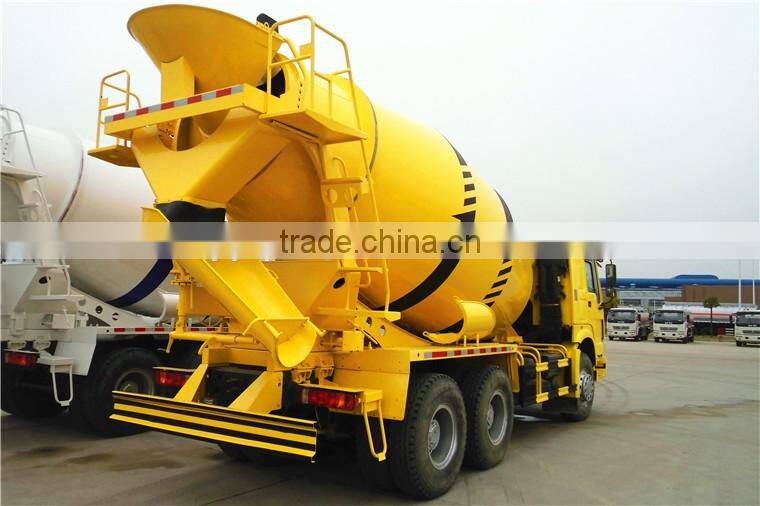

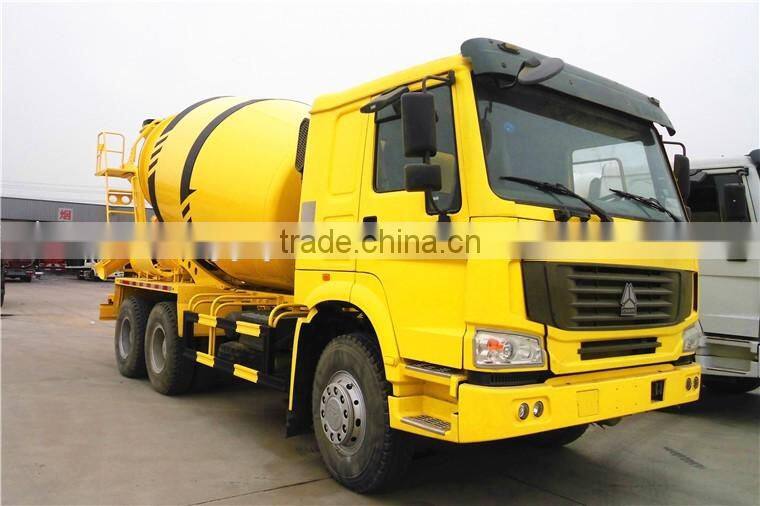

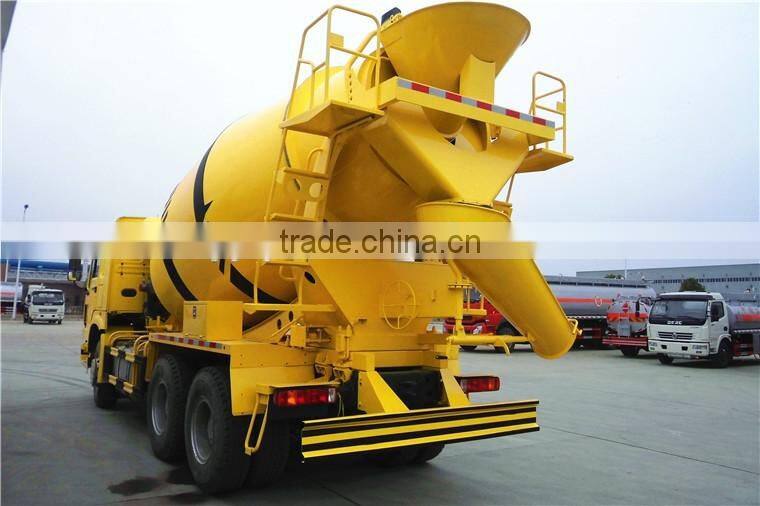

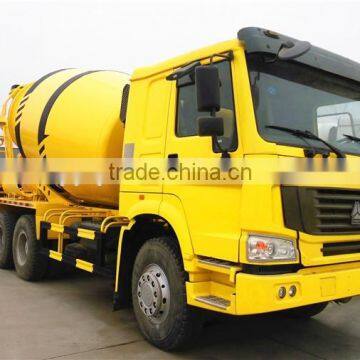

HOWO 6x4 Concrete Mixer Truck in Africa With a Low Price

Name: HOWO 6x4 Concrete Mixer Truck in Africa With a Low Price
Brand: SINOTRUCK HOWO
SKU: 140781958
Availability: InStock

Hubei Ocean Special Automobile Co., Ltd.

US$ 65,000 - 80,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Hubei, China

Brand Name:

SINOTRUCK HOWO

Payment & Shipping

Payment Methods:

Port of Shipment:

any ports available

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Hubei, China

Brand Name SINOTRUCK HOWO

Model Number ZZ5317GJBN3667D1

Motor Power 247

Mixing Power Find below tech specification

Charging Capacity Find below tech specification

Reclaiming capacity Find below tech specification

Speed of Mixing Drum Find below tech specification

Water Supply Mode Find below tech specification

Working Cycle Period Find below tech specification

Discharge Way Automatic

Outline Dimension 8935*2490*3875

After-sales Service Provided Overseas service center available

HOWO 6x4 concrete mixer truck in africa with a low price

Product Description

1.running stable
2.quality reliable
3.inner environmental comfortable
4.energy efficient
5.famous brand chassis

Main specifications
Product model,name	ZZ5251GJBN3841C Concrete mixer truck
Gross weight(Kg)	25000		Drive type	6 x 4
Payload(Kg)	11980		Overall demension(mm)	8935×2490×3875
Curb weight(Kg)	12890		Cab seats(man)	2
Approach/departure angle(°)	20.5/22		Front/rear hang(mm)	1320/2515
Number of axles	3		Wheelbase(mm)	3750+1350
Axle load(Kg)	7000/18000		Max speed(Km/h)	74
Chassis specifications
Chassis model	ZZ1251N3841C		Manufacture	China National Heavy Duty Truck G roup Co., Ltd
Brand name	Star - Steyr		Overall dimension(mm)	7820×2490×3070
Tire specification	11.00-20		Tires No.	10
Steel spring number	12/12,10/12		Front track(mm)	2047
Fuel type	Diesel		Rear track(mm)	1850
Emission standard	Euro III		Transmission	10 forward gear
Cabin	Luxury interior and Instrument bar, with air conditioning and sleeper.
Main engine model	Engine manufacutre	Displacement(ml)		Power(kw)
WD615.95E	China National Heavy Duty Truck G roup Co., Ltd	9726		247
Concrete mixer truck performance
Tank volume(m³)	10	Material of tank		Q345
Pump	Import	Motor		Import
Reducer	Import	Surplus ratio		≤1.0%
Water tank volume(L)	350L	The supplied water method		Pneumatic
Concrete mixer truck features
This is mainly used for the modern roads and major construction projects, which is for ensure the quality of the concrete poured by stirring the concrete slowly and continuously during transporting or one the construction site.
