Dongfeng DLS 6X4 Concrete Agitating Lorry With 8~10cbm Capacity for Sale

Name: Dongfeng DLS 6X4 Concrete Agitating Lorry With 8~10cbm Capacity for Sale
Brand: Dongfeng
SKU: 140781928
Availability: InStock

Hubei Ocean Special Automobile Co., Ltd.

US$ 55,000 - 60,000 MOQ: 1 Unit

Key Specifications

Fuel Type:

Diesel

Emission Standard:

Euro 3

Condition:

New

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in china

Delivery Detail:

Delivery time depends on order quantity.

Fuel Type Diesel

Emission Standard Euro 3

Condition New

Transmission Type Manual

Dimensions (L x W x H) (mm) 8100*2500*3750

Place of Origin Hubei, China

Brand Name Dongfeng

Model Number DFL5250GJBA

Dongfeng DLS 6X4 concrete agitating lorry with 8~10cbm capacity for sale

Product Description

1.running stable
2.quality reliable
3.inner environmental comfortable
4.energy efficient
5.famous brand chassis

Main specifications
Product model,name	DFL5250GJBA Concrete mixer truck
Gross weight(Kg)	25000		Drive type	6 x 4
Payload(Kg)	11805,11870		Overall demension(mm)	8100×2500×3750
Curb weight(Kg)	13000		Cab seats(man)	2,3
Approach/departure angle(°)	30/18,30/20,30/19		Front/rear hang(mm)	1460/1910
Number of axles	3		Wheelbase(mm)	3650+1350
Axle load(Kg)	7000/18000		Max speed(Km/h)	80
Chassis specifications
Chassis model	DFL5250GJBA		Manufacture	Dongfeng Motor Co., Ltd.
Brand name	DongFeng		Overall dimension(mm)	8070×2500×3030
Tire specification	11.00R20		Tires No.	10
Steel spring number	25/30,25/32		Front track(mm)	2040
Fuel type	Diesel		Rear track(mm)	1860
Emission standard	Euro III		Transmission	9 forward gear
Cabin	Luxury interior and Instrument bar, with air conditioning and sleeper.
Engine model	Engine manufacutre	Displacement(ml)		Power(kw)
L340 30	Dongfeng Cummins Engine Co., Ltd.	8900		250
Concrete mixer truck performance
Tank volume(m³)	8	Material of tank		Q345
Pump	Import	Motor		Import
Reducer	Import	Surplus ratio		≤1.0%
Water tank volume(L)	350L	The supplied water method		Pneumatic
Concrete mixer truck features
This is mainly used for the modern roads and major construction projects, which is for ensure the quality of the concrete poured by stirring the concrete slowly and continuously during transporting or one the construction site.

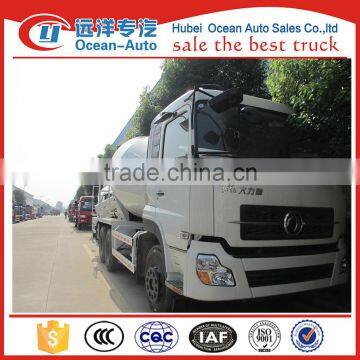

Dongfeng DLS 6X4 concrete agitating lorry with 8~10cbm capacity for sale

image as below:

Our company Detail:

Production equipment introduction

Packaging & Shipping

1.About the package of our trucks,usually it is nude that covered with wax.And it also can be packed as your need.
2.About the shipping,there are many ways,such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request.

Our Services

A.Delivery time
Usually within 10 to 25 days after getting your deposit. And the accurate time depends on your QTY.
B.Terms of payment
30% of contract amount must be paid by T/T before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment.
C.Truck warranty to solve our clients’ worries when purchasing
The warranty period is one year or 25000KM that drove under normal operation and control since our clients get the trucks. And we can supply maintenance for the whole life.
