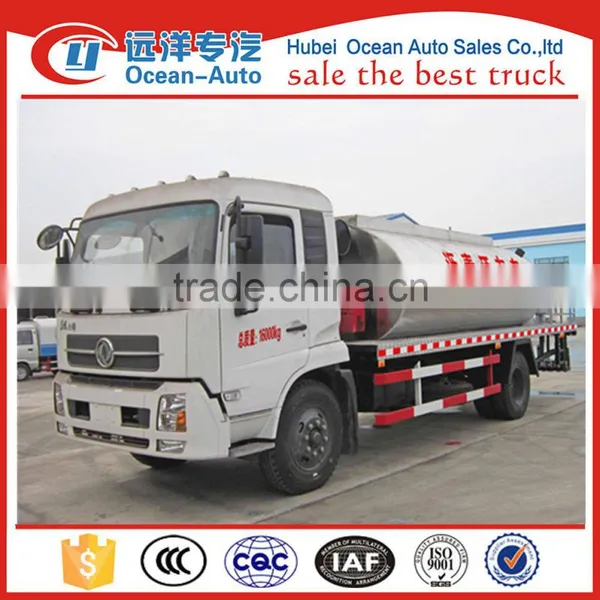

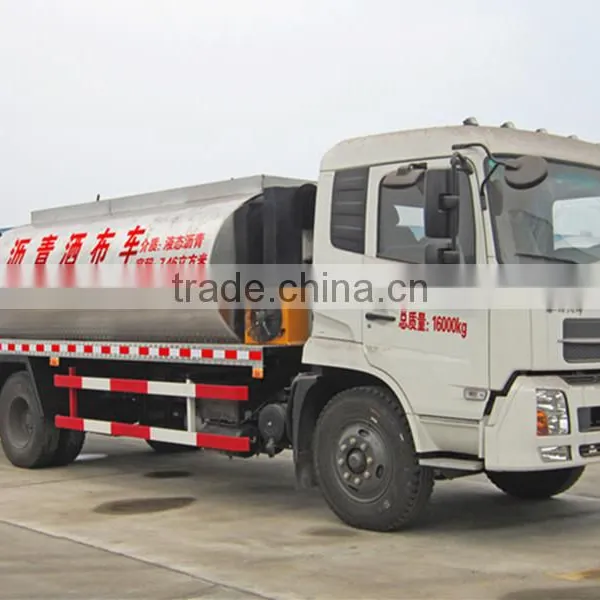

Dongfeng 8Cbm Bitumen Sprayer Asphalt Distributor truck For Sale
- 500 Set / Sets per Month
- Shanghai or any port in China
- T/T Credit Card
- BJ5280THB37 pump truck for cummins Municipal Machinery oem with so20139 M11-C380E20 diesel engine Nice France
- Dongfeng 12 tons of green spraying vehicles flew out of the country to fight the plague
- HOWO 6x4 Watering Cart
- SINOTRUK HOWO Watering Cart
- Cheap Price SINOTRUK HOWO 6X4 Water Tank Truck For Sale
- Water Truck Duckbill Spray Head Nozzle
Product Details
Drive Wheel: | 4x2 | Fuel: | Diesel | Transmission Type: | Manual |
Condition: | New | Sprinkling Area (m): | 8 - 12m | Emission Standard: | Euro 3 |
Engine Capacity: | 4 - 6L | Tank Volume: | 5001 - 10000L | Dimensions (L x W x H) (mm): | 8995x2490x3200 |
Brand Name: | Dongfeng | Place of Origin: | Hubei, China | Model Number: | DFL1160BX |
Gross Vehicle Weight: | 16000 | Certification: | CCC | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
10000L asphalt road spray truck for sale
No. | Name | Specification and Parameter | Remarks |
1 | Vehicle Name | asphalt distribution truck |
|
2 | Drive Type | 4X2 |
|
3 | Chassis | DFL1160BX | Dongfeng |
4 | Engine | EQH160-40 | Dongfeng Chaoyang |
5 | Displacement / Power | 6700ml/136kw |
|
6 | Emission standard | Euro 3 |
|
7 | Fuel type | Diesel |
|
8 | Wheelbase | 5000mm |
|
9 | Tire specification | 9.00-20 |
|
10 | Gross weight | 16000 kg |
|
11 | Payload | 6405kg |
|
12 | Curb weight | 9400 kg |
|
14 | Asphalt Tank volume | 10000 L |
|
15 | Hydraulic pump | CBQ550-L | Made in China |
16 | Transmission | 5 forward gears and 1reverse |
|
17 | Asphalt pump hydraulic drive pump | 05-110-BD31 | Made in China |
18 | relief valve , reversing valves | Made in China | Made in China |
19 | proportional valve | EFBG-03-160-HF | Made in Taiwan |
20 | Asphalt pump | QGB950( max displacement 680L/min) | Made in China |
21 | Burner | G20 | Made in Italy |
22 | Heat-transfer oil pump | 40-25-160 | Made in China |
23 | Control system | CLW-39-01 (GERMANY SIEMENS) | optional |
24 | generator | 6KW( gasoline generator ) |
|
25 | Sprinkle the cloth width | 6M |
|
26 | Asphalt spraying No. | 30-48PCS | (Optional Intelligent spraying ) |
27 | Cab | D530 flat,one and half row flat cab, electric window regulator,central control door lock, PXD-B dashboard with air condition . |
10000L asphalt road spray truck for sale ---- Products Description:
The bitumen distributor truck consist of chassis, asphalt tank, asphalt pump , spray system, hot oil heating system , hydraulic system, burning system, control system, pneumatic system and operational platform. It is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt, it is an intelligent automation high-tech truck. The truck sprinkles road surface with asphalt and spray the priming oil, waterproof layer, bond layer on asphalt roadbed. It is widely used in highway, urban road, airport and wharf .
Dongfeng 8Cbm Bitumen Sprayer Asphalt Distributor truck For Sale ---- performance Feature:
1. Adjust the nozzles in any form through the computer according to the asphalt spraying quantity and working width.
2. Control the nozzles independently through the manual/automatic control, this can adjust the nozzles in any form.
3. It can control the asphalt spraying quantity not only in the cab but also on the operational platform at the end of the truck.
4. The automatic system can measure the truck speed, it also can automatically calculate the revolution of asphalt pump according to entered asphalt spraying quantity and spraying width, then adjust the pump number through the automatic system
5. Equipped with Italy imports of diesel burner heating, with auto ignition and temperature control. It can improve the heating efficiency and reduce the construction time to ensure the spray temperature.
6. Adopt to the advanced high viscosity asphalt pump, can put outside pump in the Tank to achieve self-absorption, also can put the asphalt out of the tank.
7. In order to make sure the vehicle reliabilityand extend the service life, the critical part of the vehicle adopt to the international famous parts.
8. All the heat pipe has the insulation layer to reduce heat release and avoid to scald the operator at the same time.
9. The asphalt spray bar is designed three-stage folded structure, move the asphalt spray up and down to achieve dual or multiple spraying, move the asphalt spray left and right to achieve extend the distributing range, what’ more . It can avoid obstacles efficiently.
10.The manual spraying function can make spraying through the hand nozzle,it is quite flexible but only applicable to small and marginal construction Condition.
11. Blow the rest asphalt through the spray nozzle function, this function also can prevent the asphalt frozen on the nozzle, thus can extend the nozzle service life.
12. It has good thermal insulation layer, this is preservative and durable and ensure the static heat preservation performance index≤12℃/8h.
Dongfeng 8Cbm Bitumen Sprayer Asphalt Distributor truck For Sale --- packaging & Shipping
Dongfeng 8Cbm Bitumen Sprayer Asphalt Distributor truck For Sale ----- Notes:
A. Delivery time: Normally with 20-35days after received your first deposit.
B. Payment item: Normally 30% in advance and the balance should be paid before the shipment
after your checking and confirmed.
C. Guarantee time and services: from the vehicles safely arrived at destination and under proper
operation situation, normally 12 months, but the whole life supply maintenance .
