Product Details
Place of Origin: | Hubei, China | Brand Name: | Dongfeng | Model Number: | CLW5160GLQD4 |
After-sales Service Provided: | Overseas service center available |
Product Description

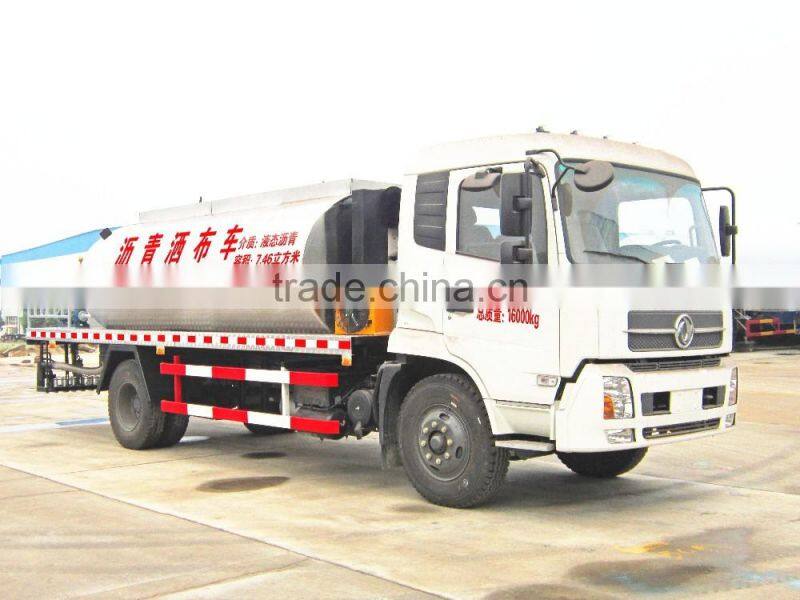

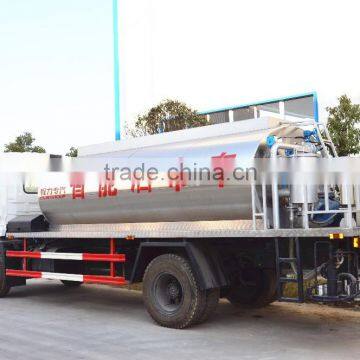

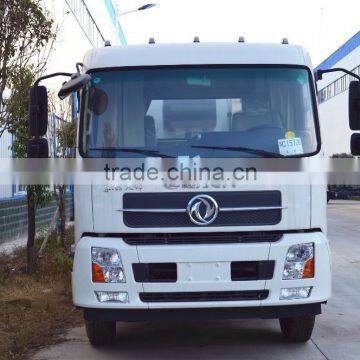

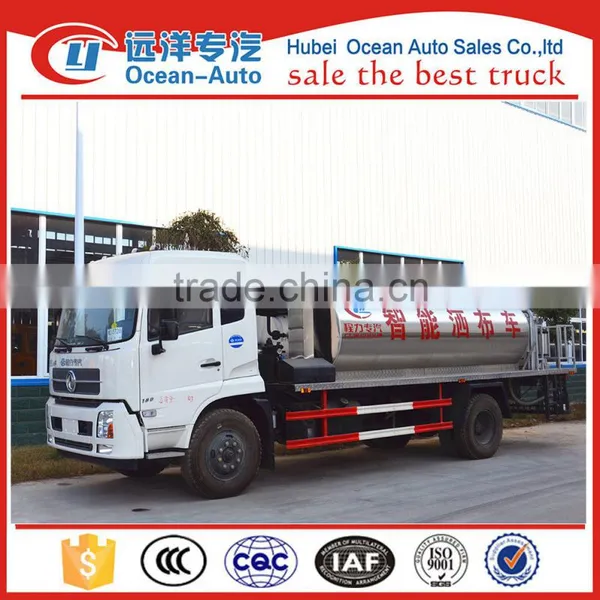

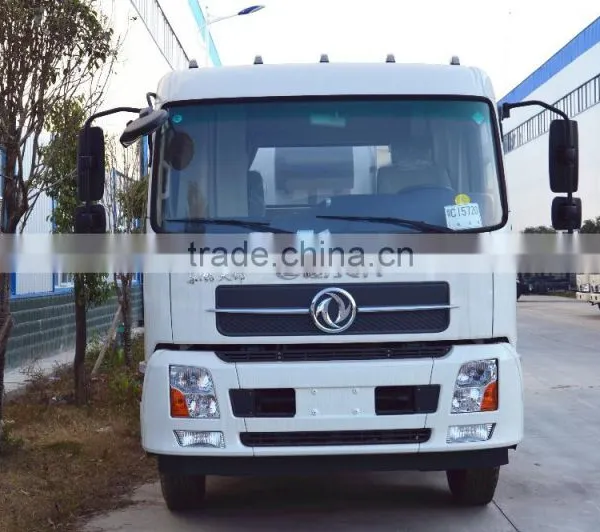

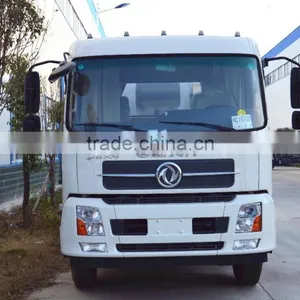

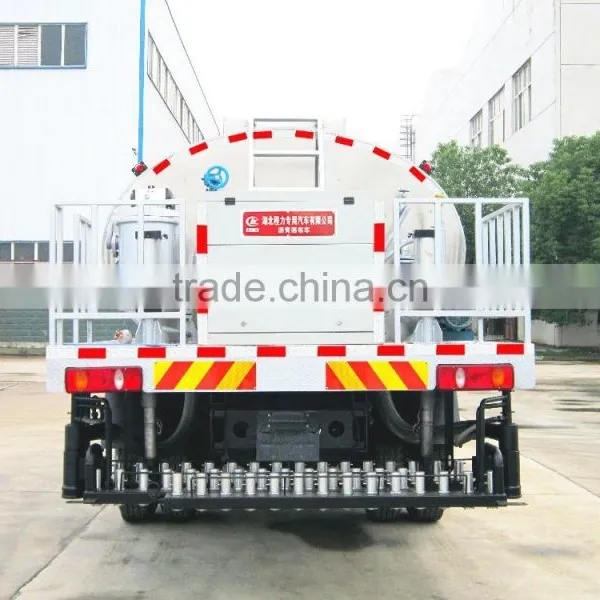

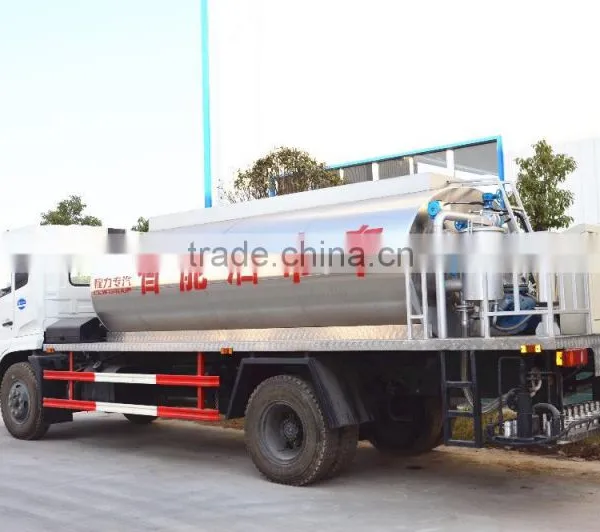

NEW dongfeng kingrun road bitumen spraying machine for sale
Truck introduction & Function:
The bitumen distributor truck consist of chassis, asphalt tank, asphalt pump , spray system, hot oil heating system, hydraulic system, burning system, control system, pneumatic system and operational platform. It is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt, it is an intelligent automation high-tech truck. The truck sprinkles road surface with asphalt and spray the priming oil, waterproof layer, bond layer on asphalt roadbed. It is widely used in highway, urban road, airport and wharf.
NEW dongfeng kingrun road bitumen spraying machine for sale
No. | Name | Technical specification | Remarks |
1 | Chassis | DFL1160BX5 | Dongfeng |
2 | Engine | ISDe185 40 | Dongfeng |
3 | Displacement / Power | 6700ml/136kw |
|
4 | Emission standard | Euro III |
|
5 | Fuel type | Diesel |
|
6 | Wheelbase | 4700mm |
|
7 | Tire specification | 10.00R20 |
|
8 | Gross weight | 16000 kg |
|
9 | Payload | 6405kg |
|
10 | Curb weight | 9400 kg |
|
11 | Asphalt Tank volume | 8000 TO 10000 L |
|
12 | Hydraulic pump | CBQ550-L | Made in China |
13 | Asphalt pump hydraulic drive pump | 05-110-BD31 | Made in China |
14 | relief valve / reversing valves | Made in China | Made in China |
15 | proportional valve | EFBG-03-160-HF | Made in Taiwan |
16 | Asphalt pump | QGB950 ( max displacement 950L/min) | Made in China |
17 | Burner | G20 | Made in Italy |
18 | Heat-transfer oil pump | 40-25-160 | Made in China |
19 | Control system | Semi intelligent control(Manual:one operation two) |
|
20 | Generator | 6 KW( gasoline generator ) | Honda |
NEW dongfeng kingrun road bitumen spraying machine for sale
