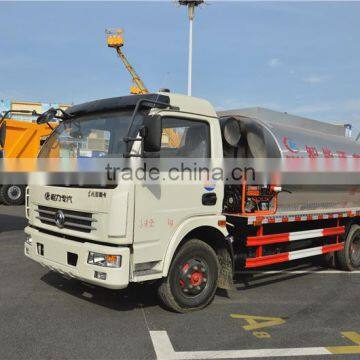

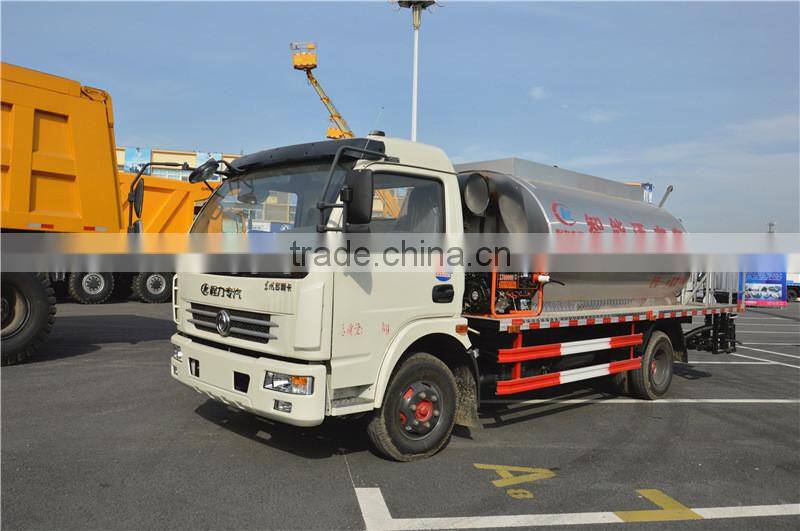

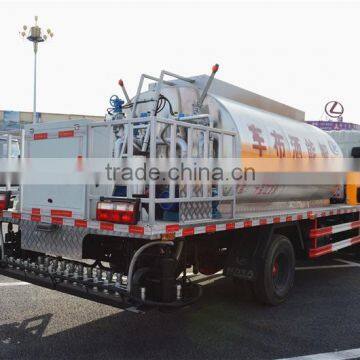

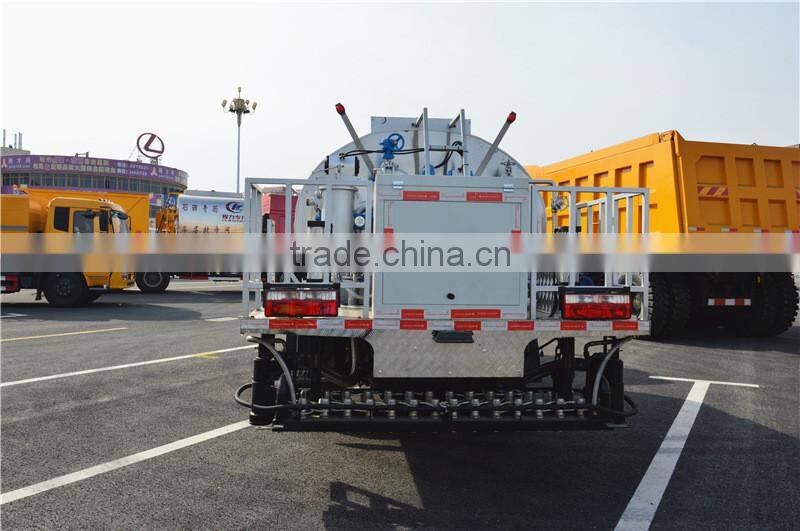

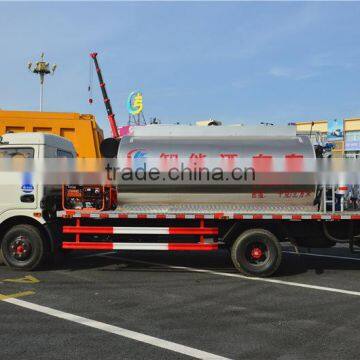

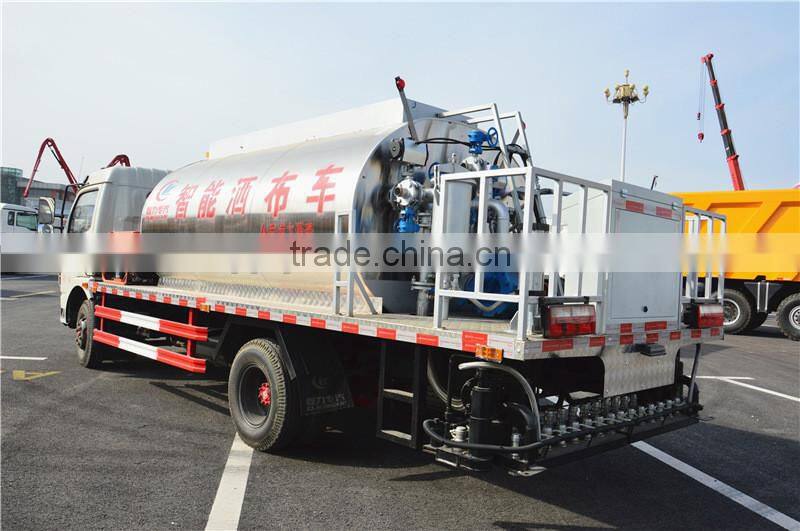

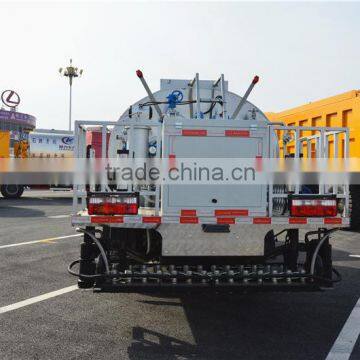

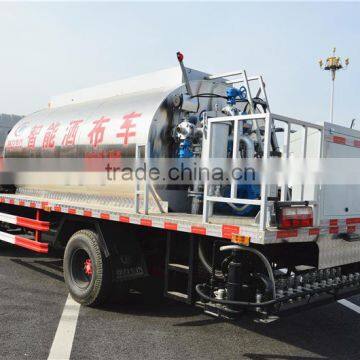

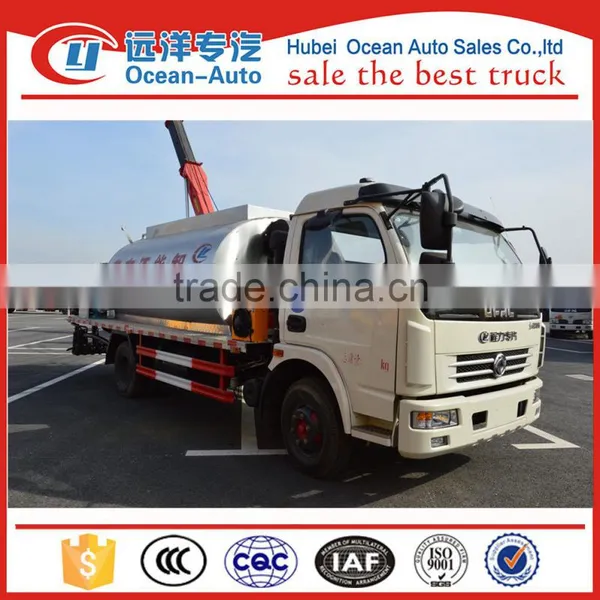

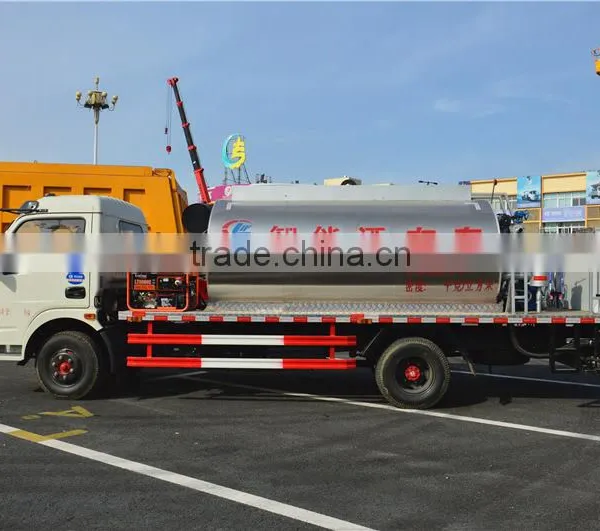

Dongfeng 6000L bitumen sprayer truck
Truck introduction & Function:

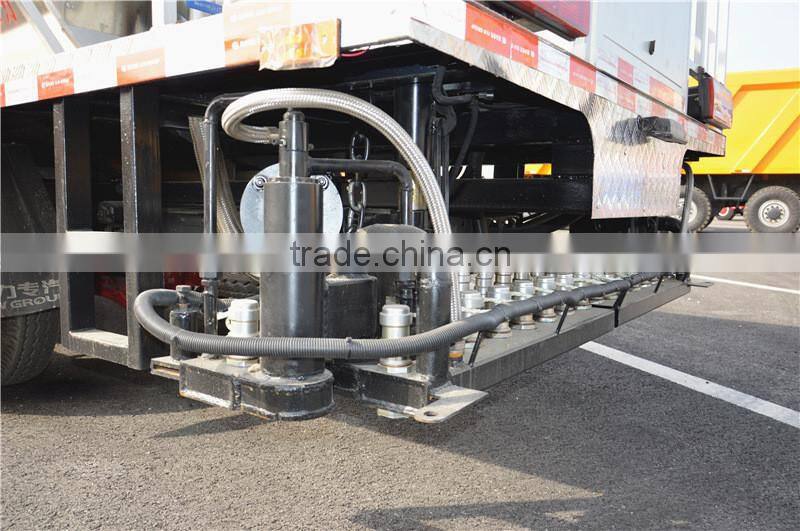

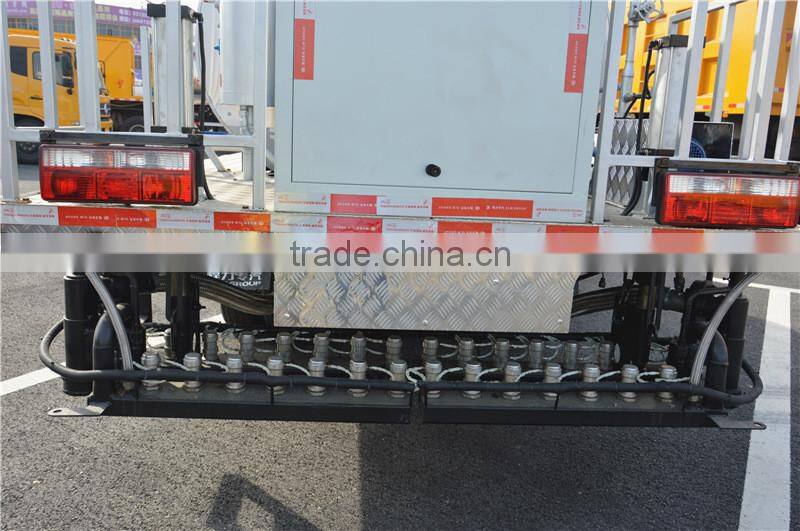

The bitumen distributor truck consist of chassis, asphalt tank, asphalt pump , spray system, hot oil heating system, hydraulic system, burning system, control system, pneumatic system and operational platform. It is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt, it is an intelligent automation high-tech truck. The truck sprinkles road surface with asphalt and spray the priming oil, waterproof layer, bond layer on asphalt roadbed. It is widely used in highway, urban road, airport and wharf.
No. | Name | Technical specification | Remarks |
1 | Chassis | EQ1110T9ADJ3AC | Dongfeng |
2 | Engine | CY4102-E3C | Dongfeng |
3 | Displacement / Power | 3856ml/91kw |
|
4 | Emission standard | Euro III |
|
5 | Fuel type | Diesel |
|
6 | Wheelbase | 3800mm |
|
7 | Tire specification | 8.25-16 |
|
8 | Gross weight | 9750 kg |
|
9 | Payload | 3955 kg |
|
10 | Curb weight | 5600 kg |
|
11 | Asphalt Tank volume | 6000 L | CLW |
12 | Hydraulic pump | CBQ550-L | Made in China |
13 | Asphalt pump hydraulic drive pump | 05-130-BD31 | Made in China |
14 | relief valve , reversing valves | Made in China | Made in China |
15 | proportional valve | EFBG-03-160-HF | Made in Taiwan |
16 | Asphalt pump | QGB680( max displacement 680L/min) | Made in China |
17 | Burner | G10 | Made in Italy |
18 | Heat-transfer oil pump | 40-25-160 | Made in China |
19 | Control system | CLW-39-01 | SIEMENS |

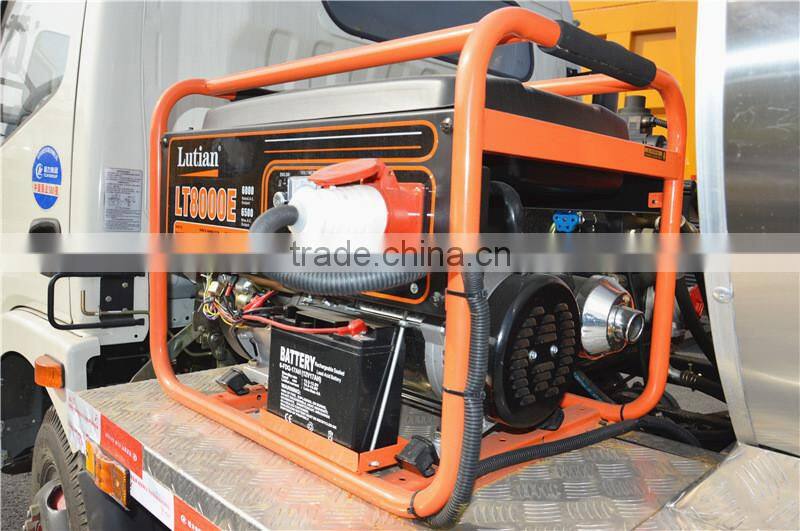

20 | generator | 5.5KW( gasoline generator ) | Honda |
| A.Delivery time | ||||||||
| Usually within 10 to 25 days after getting your deposit. And the accurate time depends on your QTY. | ||||||||
| B.Terms of payment | ||||||||
| 30% of contract amount must be paid by T/T before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment. | ||||||||
| C.After-sales warranty to solve our clients’ worries when purchasing | ||||||||
| The warranty period is one year or 25000KM that drove under normal operation and control since our clients get the trucks. And we can supply maintenance for the whole life. |
