12 hp, 13 hp, 15 hp mini belt lawn tractor
The products are characterized by the following:
1.advanced design;
2.high-safety;
nvenient;
4.durable;
5.simple maintenance;
st-effective.

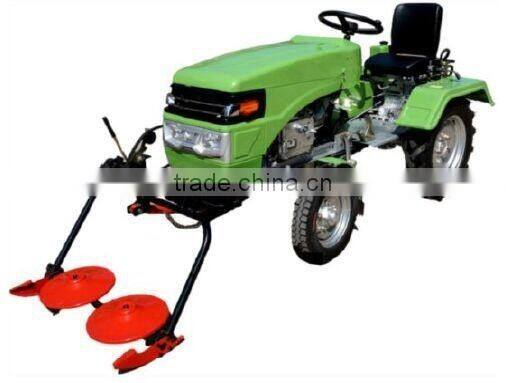

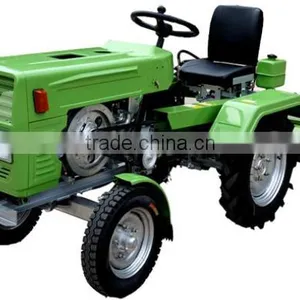

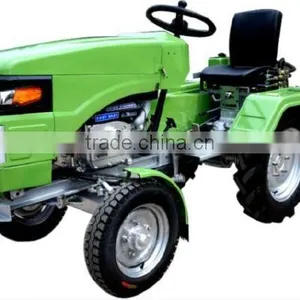

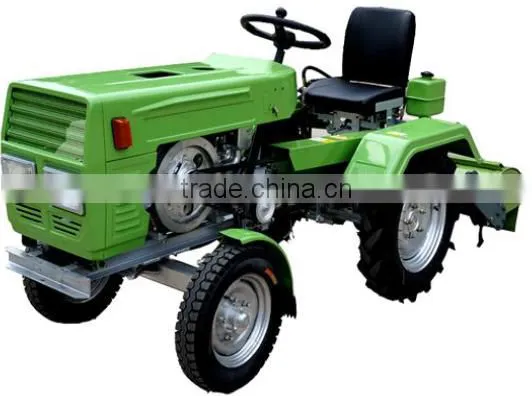

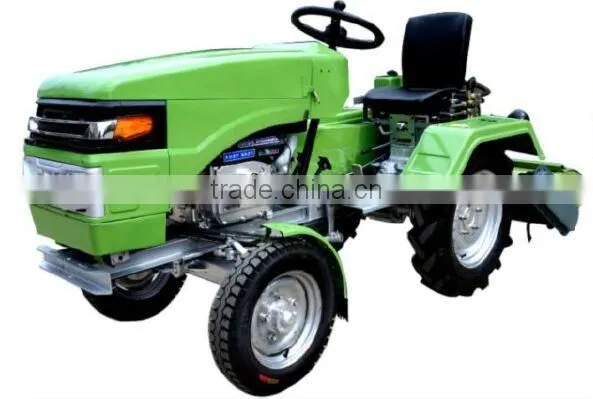

Picture of mini belt lawn tractor:
Parameter of mini belt lawn tractor:
| Tractor Model | WM-12W/WM-13W/WM-15W | ||
| Type | 2×2 wheeled half frame belt drive | ||
| Rated traction | 1800N | ||
| Tractor size MM | Overall size | 2200mm*1100mm*1210mm | |
| Wheel base | 1200mm | ||
| wheel tread | Front wheel | 850 (4.00-12) 840(4.00-10)mm | |
| Back wheel | 890 (6.50-16 )880(60-.00-12)mm | ||
| Minimum ground clearance | 200mm | ||
| Turning radius | 2.2±0.2m | ||
| Theoretical speed | Forward I shift | 2.1km/h | |
| Forward II shift | 3.28km/h | ||
| Forward III shift | 5.31km/h | ||
| Forward IV shift | 8.56km/h | ||
| Forward V shift | 13.32km/h | ||
| Forward VI shift | 21.53km/h | ||
| Reverse I shift | 1.62km/h | ||
| Reverse II shift | 6.59km/h | ||
| Tractor weight | Type | hydraulic lifting | |
| Structural mass | 532kg with plough 568kg with rotary tiller | ||
| Diesel Engine | |||
| Type | Single- cylinder, horizontal, water-cooled, four-stroke, direct injection, electric start | ||
| Model | CF12NM/CF13NM/CF15NM | ||
| Rated power | 8.46kw/9.56kw/11.03kw | ||
| Rated speed | 2400r/min | ||
| Number of cylinders | 1 | ||
| Bore | 92mm | ||
| Cooling method | condensing | ||
| Starting method | electric starter | ||
| Electrical Equipment | |||
| Model | RFF—90 Permanent Magnet Alternator | ||
| Voltage (v) | 12 | ||
| Rated power (w) | 90 | ||
| Rated speed (r/min) | 2400 | ||
| Transmission System | |||
| Clutch | two blades, dry type, joint clutch | ||
| Transmission type | (3+1)×2 combined type | ||
| Differential device | closed,symmetrical bevel gear | ||
| Brake system | Brake type | hook type | |
| Operation method | mechanical pedal | ||
| Walking and Steering System | |||
| Front axle | unitary, unadjustable | ||
| Front tire size | 4.00-10/4.00-12 | ||
| Rear tire size | 6.00-12/6.00-16/6.5-16 | ||
| Tire pressure(Kpa) | 180Kpa | ||
| field operation 80~120Kpa | |||
| transport operation140~200KPa | |||
| Steering system | Steering type | worm type/worm roller type | |
| Operation type | mechanical | ||
| Front toe(mm) | 6~12mm | ||
| Camber | 2°±30' | ||
| Kingpin inclination | 7°±15' | ||
| Reverse caster | 3°±15' | ||
| Working Device | |||
| Model | semi-split | ||
| Oil pump | single piston/gear pump | ||
| Safety valve opening pressure | 16±0.5MPa | ||
| Cylinder diameter/piston stroke | 63/150mm | ||
| Pump fuel pump theory | 5L/MIN | ||
| Hanging shaft rated lifting capacity | 2980N | ||
| Rated lifting time | ≤3S (engine in rated rotate speed) | ||
| Farming adjustment method | Height adjustment | ||
| Traction pin diameter | Φ20mm | ||
| Ground clearance of dragger | 240mm | ||
| Electric Equipment | |||
| Battery | lead acid battery 12V/45Ah | ||
| Diesel engine type | evaporation or condensation | ||
| Generator | Model | Permanent magnet flywheel generator (built-in) | |
| Voltage/Power | 14V/350W | ||
| Headlight | 12V/55Wdouble wire distance light | ||
| Turn Light | 12V/8W | ||
| Light switch | Two speed switch | XQ-107 | |

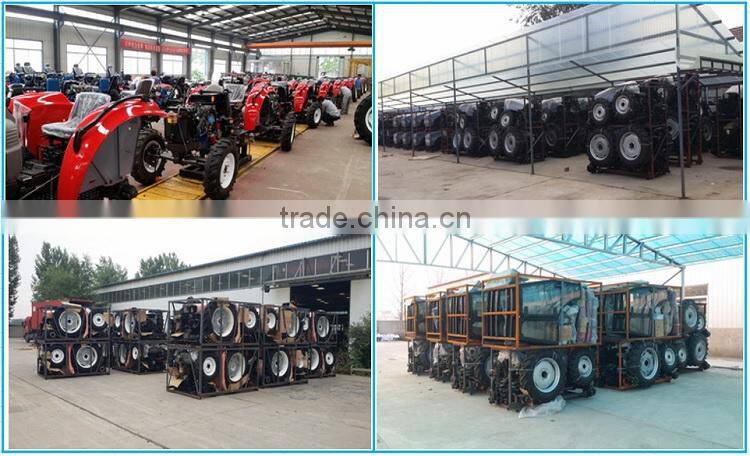

Tractor Packing:
Whatever the client is, our company always provides the perfect service and the training. Besides, we will do a favor in technology and create the value continuously for the consumers. Our products have been exported to South America, Africa, Middle-East and CIS countries. We are doing our best to become the most powerful partner with the distributors & clients all over the world!
Shanghai Hoosan Machinery Co.,Ltd is a company focus on internation sales for agricultural machinery and construction machinery.
The company adopts modern management. and owns powerful capital strengthen, advanced technology, and perfect test methods.which has production license and product promotion license awarded by the government and perfect quality guarantee system.
We have got ISO9001 certificate and national test report certificate.
Sales strategy of our company is “Harmony, Innovation, Development and All-win”. Providing the worth-value products, the excellent service and the supply of the parts in time are our principles.
Exhibition chart

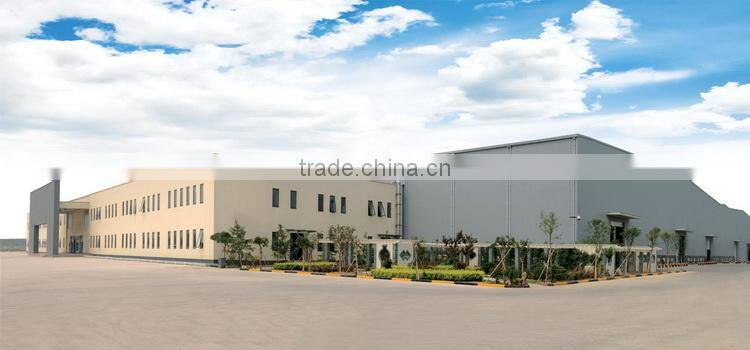

Our factory
