Welcome wholesales first choice factory price mini wheel tractor
Parameter of factory price mini wheel tractor:
Tractor Model
HS-12W/HS-13W/HS-15W
Type
2×2 wheeled half frame belt drive
Rated traction
1800N
Tractor size MM
Overall size
2200mm*1100mm*1210mm
Wheel base
1200mm
wheel tread
Front wheel
850 (4．00-12) 840(4.00-10)mm
Back wheel
890 (6.50-16 )880(60-.00-12)mm
Minimum ground clearance
200mm
Turning radius
2.2±0.2m
Theoretical speed
Forward I shift
2.1km/h
Forward II shift
3.28km/h
Forward III shift
5.31km/h
Forward IV shift
8.56km/h
Forward V shift
13.32km/h
Forward VI shift
21.53km/h
Reverse I shift
1.62km/h
Reverse II shift
6.59km/h
Tractor weight
Type
hydraulic lifting
Structural mass
532kg with plough 568kg with rotary tiller
Diesel Engine
Type
Single- cylinder, horizontal, water-cooled, four-stroke, direct injection, electric start
Model
CF12NM/CF13NM/CF15NM
Rated power
8.46kw/9.56kw/11.03kw
Rated speed
2400r/min
Number of cylinders
1
Bore
92mm
Cooling method
condensing
Starting method
electric starter
Electrical Equipment
Model
RFF—90 Permanent Magnet Alternator
Voltage (v)
12
Rated power (w)
90
Rated speed (r/min)
2400
Transmission System
Clutch
two blades, dry type, joint clutch
Transmission type
（3+1）×2 combined type
Differential device
closed,symmetrical bevel gear
Brake system
Brake type
hook type
Operation method
mechanical pedal
Walking and Steering System
Front axle
unitary, unadjustable
Front tire size
4.00-10/4.00-12
Rear tire size
6．00-12/6.00-16/6.5-16
Tire pressure（Kpa）
180Kpa
field operation 80～120Kpa transport operation140～200KPa
Steering system
Steering type
worm type/worm roller type
Operation type
mechanical
Front toe（mm）
6～12mm
Camber
2°±30'
Kingpin inclination
7°±15'
Reverse caster
3°±15'
Working Device
Model
semi-split
Oil pump
single piston/gear pump
Safety valve opening pressure
16±0.5MPa
Cylinder diameter/piston stroke
63/150mm
Pump fuel pump theory
5L/MIN
Hanging shaft rated lifting capacity
2980N
Rated lifting time
≤3S (engine in rated rotate speed)
Farming adjustment method
Height adjustment
Traction pin diameter
Φ20mm
Ground clearance of dragger
240mm
Electric Equipment
Battery
lead acid battery 12V/45Ah
Diesel engine type
evaporation or condensation
Generator
Model
Permanent magnet flywheel generator (built-in)
Voltage/Power
14V/350W
Headlight
12V/55Wdouble wire distance light
Turn Light
12V/8W
Light switch
Two speed switch
XQ-107
Overview of factory price mini wheel tractor:

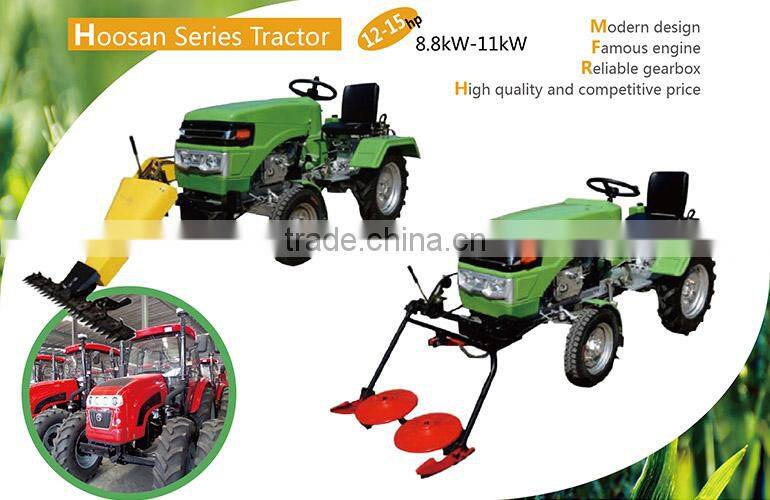

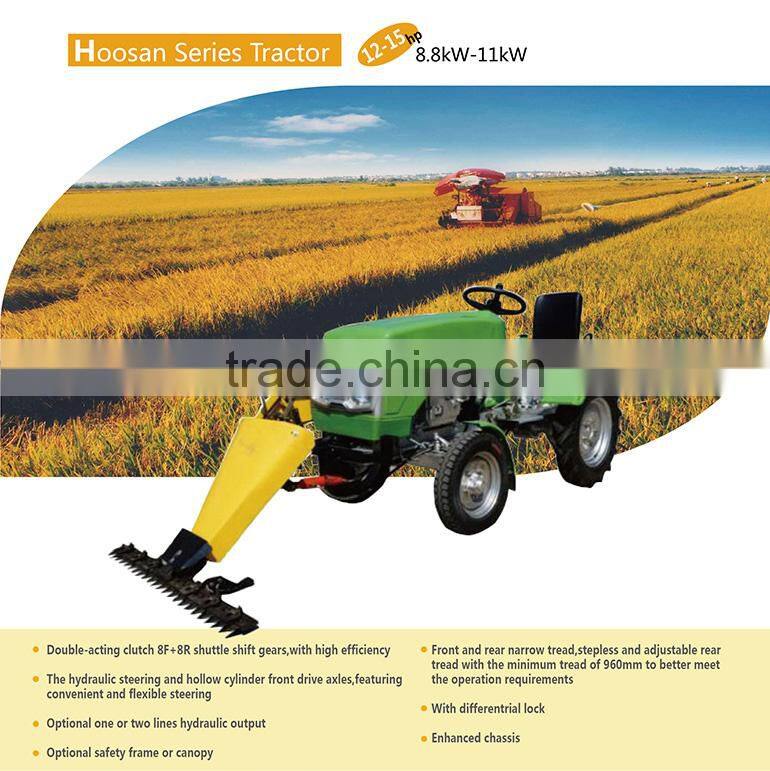

factory price mini wheel tractor
