Most popular creative hot sale 15hp four wheel tractor

FOB Price

USD $1,000 - $1,500 / Piece

1 Piece(Min.Order)

Supply Ability 30 Unit / Units per Month
Port Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Wheel Tractor	By wheel:	2WD
Usage:	Other, Farm Tractor, garden tractor,lawn tractor	Drive Type:	Gear Drive	Power(W):	8.46 kW
Certificate:	CE	Brand Name:	HOOSAN	Model Number:	HS-15W
Place of Origin:	Shandong, China	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

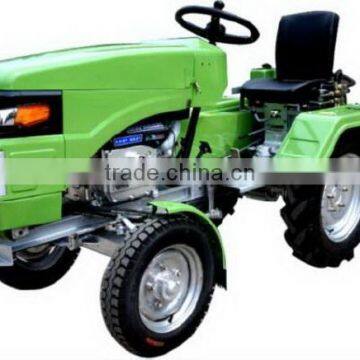

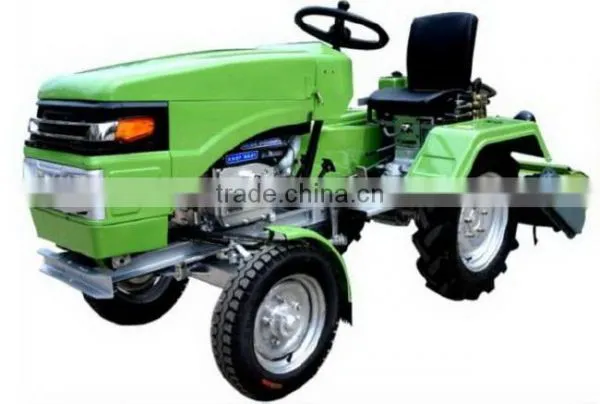

Most popular creative hot sale 15hp four wheel tractor

Product Description

Parameter of 15hp four wheel tractor:

Tractor Model			HS-12W/HS-13W/HS-15W
Type			2×2 wheeled half frame belt drive
Rated traction			1800N
Tractor size MM	Overall size		2200mm1100mm1210mm
	Wheel base		1200mm
	wheel tread	Front wheel	850 (4．00-12) 840(4.00-10)mm
		Back wheel	890 (6.50-16 )880(60-.00-12)mm
	Minimum ground clearance		200mm
Turning radius			2.2±0.2m
Theoretical speed	Forward I shift		2.1km/h
	Forward II shift		3.28km/h
	Forward III shift		5.31km/h
	Forward IV shift		8.56km/h
	Forward V shift		13.32km/h
	Forward VI shift		21.53km/h
	Reverse I shift		1.62km/h
	Reverse II shift		6.59km/h
Tractor weight	Type		hydraulic lifting
	Structural mass		532kg with plough 568kg with rotary tiller
Diesel Engine
Type	Single- cylinder, horizontal, water-cooled, four-stroke, direct injection, electric start
Model	CF12NM/CF13NM/CF15NM
Rated power	8.46kw/9.56kw/11.03kw
Rated speed	2400r/min
Number of cylinders	1
Bore	92mm
Cooling method	condensing
Starting method	electric starter
Electrical Equipment
Model	RFF—90 Permanent Magnet Alternator
Voltage (v)	12
Rated power (w)	90
Rated speed (r/min)	2400

Transmission System
Clutch two blades, dry type, joint clutch
Transmission type （3+1）×2 combined type
Differential device closed,symmetrical bevel gear
Brake system Brake type hook type
Operation method mechanical pedal
Walking and Steering System
Front axle unitary, unadjustable
Front tire size 4.00-10/4.00-12
Rear tire size 6．00-12/6.00-16/6.5-16
Tire pressure（Kpa） 180Kpa
field operation 80～120Kpa
transport operation140～200KPa
Steering system Steering type worm type/worm roller type
Operation type mechanical
Front toe（mm） 6～12mm
Camber 2°±30'
Kingpin inclination 7°±15'
Reverse caster 3°±15'
Working Device
Model semi-split
Oil pump single piston/gear pump
Safety valve opening pressure 16±0.5MPa
Cylinder diameter/piston stroke 63/150mm
Pump fuel pump theory 5L/MIN
Hanging shaft rated lifting capacity 2980N
Rated lifting time ≤3S (engine in rated rotate speed)
Farming adjustment method Height adjustment
Traction pin diameter Φ20mm
Ground clearance of dragger 240mm
Electric Equipment
Battery lead acid battery 12V/45Ah
Diesel engine type evaporation or condensation
Generator Model Permanent magnet flywheel generator (built-in)
Voltage/Power 14V/350W
Headlight 12V/55Wdouble wire distance light
Turn Light 12V/8W
Light switch Two speed switch XQ-107

Overview of 15hp four wheel tractor:

15hp four wheel tractor
