Wear resistant steel plate
1) Company Introduction:
Jinan Higher Blades Co., Ltd is locates in Jinan city, 1.5 hours by train to Beijing. As the biggest strategic partner of Shandong Iron&Steel Group. Our main products are carbon steel plat, wear resistant plate, low alloy steel plate, bridge steel plate, boiler container steel plate, oil tank steel plate, shipment steel plate, building steel plate, etc. We have stock of 20 thousand tons per year, we have logistic center of 2000 square meter, and 30 delivery trucks. Our laboratory is the top in China with advanced instrument, support SGS, BV, TUV third party test.
2) Chemical Composition:
| Name | C | Si | Mn | P | S | Cr | Ni | Mo | Ti | B | Als | CEV |
| less | more | less | ||||||||||
| NM360 | 0.25 | 0.70 | 1.60 | 0.025 | 0.015 | 0.80 | 0.50 | 0.50 | 0.050 | 0.0005-0.006 | 0.010 | 0.48 |
| NM400 | 0.30 | 0.70 | 1.60 | 0.025 | 0.010 | 1.00 | 0.70 | 0.50 | 0.050 | 0.0005-0.006 | 0.010 | 0.57 |
| NM450 | 0.35 | 0.70 | 1.70 | 0.025 | 0.010 | 1.10 | 0.80 | 0.55 | 0.050 | 0.0005-0.006 | 0.010 | 0.59 |
| NM500 | 0.38 | 0.70 | 1.70 | 0.020 | 0.010 | 1.20 | 1.00 | 0.65 | 0.050 | 0.0005-0.006 | 0.010 | 0.64 |
| NM360 and NM400, Si and Mn composition can be enhance to 2.00% and 2.20%. | ||||||||||||
3) Mechanical Property
Name |
Thickness |
Tensile Test |
Impact Test |
Surface Hardness HBW |
||
Tensile Strength Rm/MPa |
Enlongation A50/% |
Temperature /℃ |
Impact energy Akv2/J |
|||
NM360 |
6-50 |
more than 1100 |
more than 12 |
-20 |
more than 24 |
330-390 |
NM400 |
6-50 |
more than 1200 |
more than 10 |
-20 |
more than 24 |
370-430 |
NM450 |
6-50 |
more than 1250 |
more than 7 |
-20 |
more than 24 |
420-480 |
NM500 |
6-50 |
-- |
-- |
-- |
-- |
≥470 |
4) Production Process of NM 360 NM 400 NM 450 NM500 wear resistant steel plate from BIS ALLOY
5) Why choose our company?
* One stop solution of all the steel plate
* Top quality with reasonable price
* Good after-sale service, customers direct buy without worries
* Over 600,000 tons of sales volume per year of steel plate
* SGS, BV, TUV, etc third party test support
* One year quality guarantee
* Germany plasma cutting machine can cut every shape for you
6) Products Detail
Product Name |
NM 360 NM 400 NM 450 NM500 wear resistant steel plate from BIS ALLOY |
|||
Size Specification |
Thickness:8-200mm width:600-1500mm Length:1000-12000mm |
|||
standard |
GB |
ASTM |
SSAB |
JIS |
Grade |
NM360 NM400 NM450 NM500 NM550 NM600 |
AR400 AR450 AR500 |
HARDOX 400, HARDOX 450, HARDOX500, HARDOX550, HARDOX600 |
NK-EH360 JFE-EH400 |
Application |
Mainly used for bridge steel plate,boiler steel plate,oil tank steel plate, automobile frame steel plate. |
|||
Deliver time |
7-20 days according to your order requirements |
|||

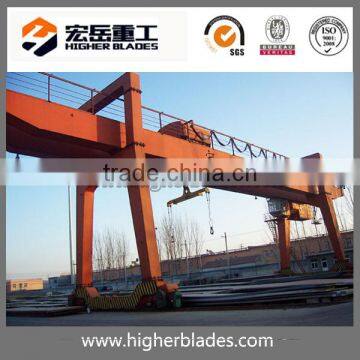

7) China Top Steel factory with advanced laboratory
Your success is our business!
