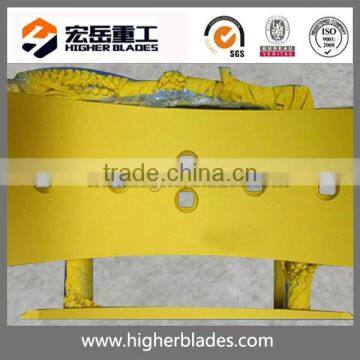

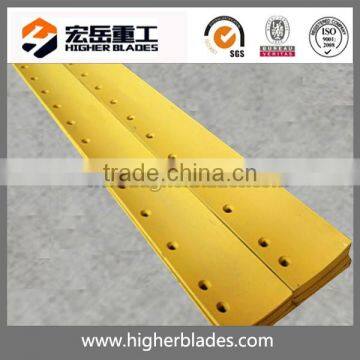

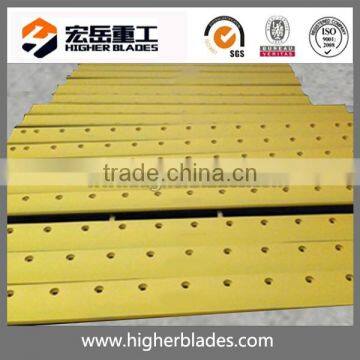

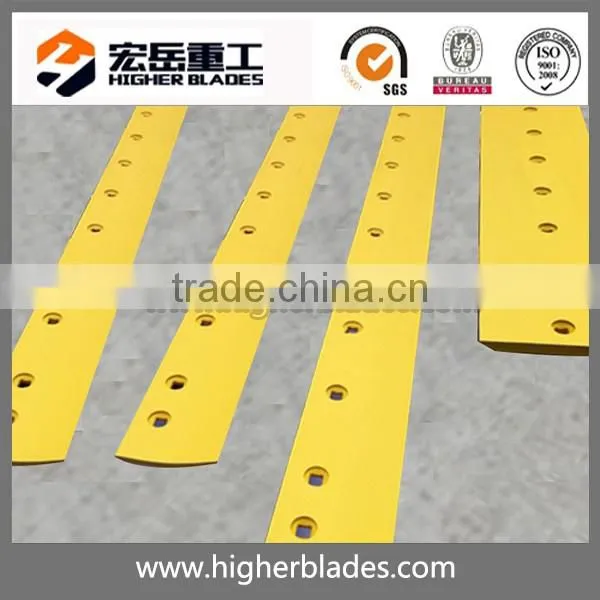

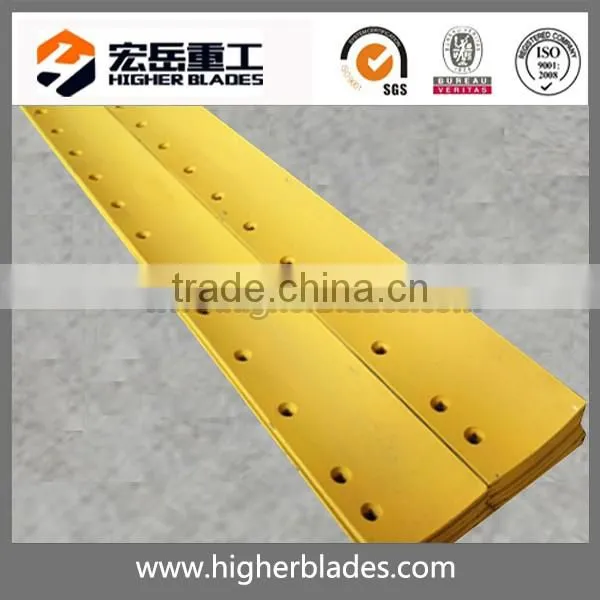

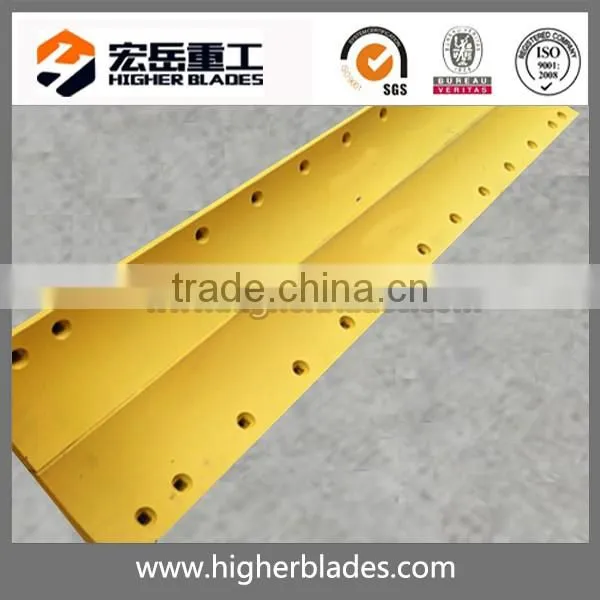

Help Center5D9554 Bucket Cutting Edge, Grader Cutting Blade, Loader Cutting Edge
Related Products
-
Half Arrow Edge for LoaderUS$ 20 - 20MOQ: 10 Tons -
Hot Sale Bucket Cutting Edge Forl Loader, Best PriceUS$ 0.8 - 1.3MOQ: 5 Pieces
-
Cutting Edge Blade for LoaderUS$ 20 - 20MOQ: 10 Pieces
-
Loader Bucket Cutting Edge From China Supplier Most Competitive PriceUS$ 0.8 - 1.3MOQ: 5 Pieces
-
Earthmoving Spare Parts Loader Bucket Cutting Edge for WA300US$ 0.8 - 1.3MOQ: 5 Pieces
Grader cutting edges, blades and loader bucket cutting edge with OEM quality.
provide both heat-treated Boron steel and Carbon steel according to your reqirement.
OEM part number 3G6364, 8K8161,8K8162, 7V1490,7V0904, 100-6666, 4T6695, 3G6395,1U0295, 109-9212, 9W5730, 9W5737, 8E4567,139-9230,1U0593,4T8101,4T8091 .....
Please contact us if further part number are needed.
| Product Name | 5D9553 Cutting edge |
| Material | 27MnTiBM, 30MnB, 22SiMn2, 80#,45# or as you required |
| Hardness | 360-500 HB |
| Thickness | 13-60mm |
| Color | Yellow or as you request |
| Available machine | Used for Komatsu, Caterpillar, Hyundai, Hitachi, Daewoo. etc |
1, Material type: 27MnTiBM, 30MnB, 22SiMn2, 80#,45#, or special designed wear steel with particular advanced performance.
2, Through hardening technology: the hardness deviation between the core and surface is less than 5 HRC. This can extend your working life
3, Particular material with better welding performance: We designed a special material which you don't need to do pre-heat before welding and crack never occurs in the material.
4, Material Specification:
Materials |
Hardness
(HB) |
Yielding Strength(MPa) |
Tensile Strength(MPa) |
Elongation
(%) |
Impact Energy (J) |
HM360 |
330-390 |
≥800 |
≥1000 |
≥16 |
≥40(-20℃ KV) |
HM400 |
370-430 |
≥1050 |
≥1250 |
≥12 |
≥25(-20℃ KV) |
HM450 |
430-470 |
≥1150 |
≥1300 |
≥10 |
≥50(25℃ KU) |
HM500 |
470-520 |
≥1250 |
≥1450 |
≥7 |
≥40(25℃ KU) |
HM550 |
530-570 |
≥1300 |
≥1550 |
≥5 |
≥20(25℃ KU) |
| HC80 | 250-330 |
≥450 |
≥900 |
≥11 |
≥15(25℃ KU) |
| HC45 | Specification is adjusted by the technical requirement |
||||
Why choose us?
Competitive resources: We are Shandong Steel Group strategic partner and can get most competitive raw material. So that we can also provide you most competitive price.
Professional Materials : We are more prefessional on material. We can provid wider material selection and particular new material with better performance.
Advanced Process: Advanced CNC equipments with higher accuracy; Global advanced heat treatment, insures through hardening and consistancy of size and properties to extend your working life.
Reliable Testing: Professional mechanical property laboratory. Provide 3rd-party report with global certification such as SGS, BV, TUV...
Higher Blades is the TOP manufacturer for ground engaging tools such as cutting edge, end bit, bucket blades, overlays with most complete and advanced equipment.
Higher Blades provide the reliable testing report with 3rd party certification such as SGS, BV, TUV. Provide full range mechnical properties test such as hardness, yielding point, tensile point, elongation, impact energy and even metallographic structure.
Please contact me if you have any questions. I'll response within 12 hours.
