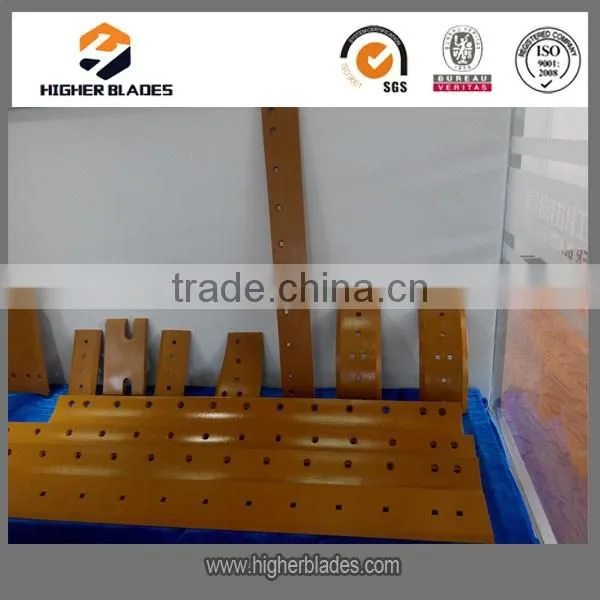

Excavator attachment both ends serrated cutting edge
( serrated on both ends)
Jinan Higher Blades Co., Ltd-----Your serrated cutting edge! LONGER WEAR LIFE!
Product name | Excavator serrated cutting edge price for Caterpillar |
Material | HM400/HM500/27MnTiB/30MnB/HC80 |
Part Number | Loader Bucket edge: 8K8161,8K8162, 7V1490,7V0904,9V6529,9V6572,9R4672,9V6574,9V6575,9R5313,6W2990,7I3015, 5V7276,6W2989,8K9754... Loader Segment edge: 4T6695,4T6699,4T6696, 3G6395,1U0761,4T8091,4T8101,4T9123,100-6666,9W5737, 8E4569,109-9019,132-1037,132-1033,T101639,T157306,132-4715,140-7601, 135-9295/9296,9W6747… Bolt on reversible cutting edge: 1U0593,1U0601,1U1909,1U0295,1U0762,1U1470,100-6666, 109-9212, 9W5730, 4T8101, 4T8091,8E4567,11082664,11157181,11157182,11045948,11012887,11011413, 11156585,11156579,11045947,11045809,11045808,109-9212,139-9230, 9W5737, 8E4567,139-9230,1U0593,107-3746,11082666,185506A1,121920A1,112946A1,T84194… |
Thickness | 13mm to 100mm. |
Half Arrow Edges | 254mm*30mm,254mm*40mm |
Different type | Single bevel flat bucket edge without hole, Single bevel flat bucket edge with hole, DBF Wear Plate Edge || , DBF Wear Plate Edge // , Corner Guard Bit || , Corner Guard Bit/ , Half arrow |
Main Business | Motor Grader Blades and End Bits, Dozer Cutting Edge, Loader Bucket Edges, Excavator Cutting edge, Scraper Cutting Edge, Bucket Teeth, Bolts and Nuts, Pins&Retainer |
Material selection:
Materials | Hardness
(HB) | Yielding Strength(MPa) | Tensile Strength(MPa) | Elongation
(%) | Impact Energy (J) |
HM400 | 370-430 | ≥1050 | ≥1250 | ≥12 | ≥25(-20℃ KV) |
HM500 | 470-520 | ≥1250 | ≥1450 | ≥7 | ≥40(25℃ KU) |
HC45 | 170-200 | ≥355 | ≥600 | ≥16 | ≥39(25℃KU) |
Jinan Higher Blades Co., Ltd offers an extensive line of all makes.We have two kinds of: Boron through-hardened and Carbon Steel.
Motor grader cutting edges mainly is double bevel curved cutting edge with Bolt-on type, and double bevel flat cutting edge with Bolt-on type, serrated and non-serrated.
Bulldozer cutting edges mainly is single bevel flat with bolt-on type.
Wheel loader cutting edges mainly is single bevel flat with bolt-on type and weld on type.
Excavator cutting edge mainly straight or serrated bolt-on edges.
Higher Blades Company have the world advanced level laboratory, owns metalloscope, impact energy tester, Tensile strength tester, Brinell/Rockwell hardness tester, etc. Support SGS, BV, TUV etc third party testing and report. We have strict QC procedure from raw material to final products and also doing in-process control during every production process to offer you a "higher" cutting edge.
Delivery time :15-30 days
Package:Standard wooden pallet
Port: Qingdao
