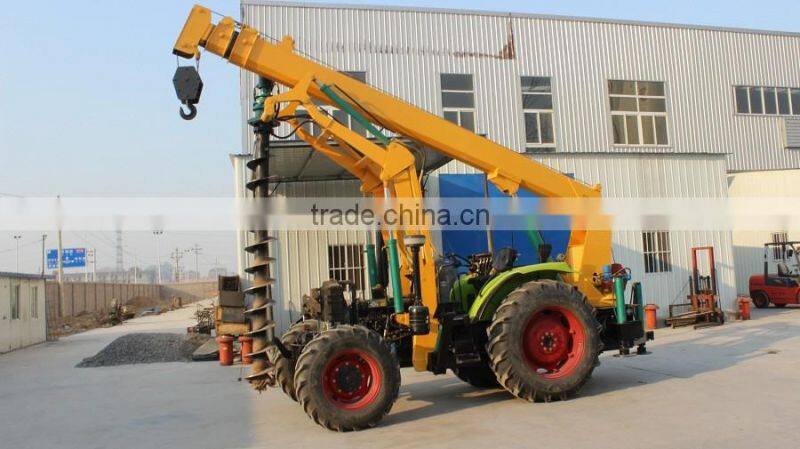

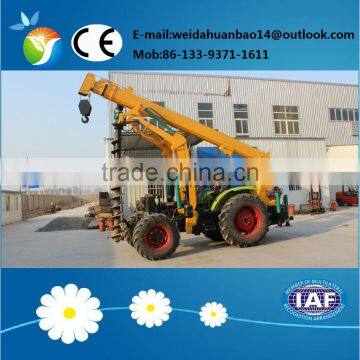

good manufacture in field with the wire rod digging machine in China
welcome to my store,we are the most professional manufacture of digging machines.Here are some introduction of pictures: look down:
Wire rod digging machine bored piling equipment have 7 founction for choose :digging ,ditching, etc.suitable for building fast into the hole in foundation engineering construction machinery.Its construction of high efficiency, is the electric power, communication, municipal, railway, highway, construction, petroleum, trees,It uses the drive 2 0r drive 4 tractor power as its powersource and has a good filed work characteristic. The frontloadingstructure, fully hydraulic power, high strength alloy bit, torsionproof andtensile strength spiral drill pipe, largetonnage telescopic crane, all thesedevices make sure the operation is safety and flexible.One person canoperate the machine easily and conveniently, which greatly improve theworking efficiency. Drill, drill stem and supported arm are assembled in aspecial way, which makes it more convenient to disassemble. It makes thelongdistance transportation and shortdistance movement easier.
Model No. | WD-CE-01 | DESCRIPTION | Hole digger |
1/power: 1004type four wheel tractor(Four-wheel drive) | |||
2/The length of drill: 1-6meters(customer booked) | |||
3/Bit diameter: 300-1200mm(customer booked) | |||
4/Spiral drill hydraulic drive form: hydraulic hoist | |||
5/Standard bar pit time: 40 seconds (500mm in diameter x depth 3M) | |||
6/Function:digging ,lifting and Bulldozing. | |||
7/Net/Gross Weight: 6.68t/6.8t | |||
8/Package Dimension:full 20 feet container | |||
9/color:green and yellow | |||
10/Working principle: screw be pushed by power from hydraulic. | |||
Matters needing attention before use :(must refuel before start the machine)
1. Refuel the tractor engine (Gear oil, diesel oil, hydraulic oil, cooling liquid)
2. Refuel the tractor digging system (hydraulic oil) gear oil (High speed butter)
3.Refuel each joint (butter) once a working day
4.Empty running are not allowed to start walking hydraulic system.
Switch off the hVdraulic system before the vehicle stoYpped. Open the hydraulic system 30 minutes early before work in winter, 20 minutes;early in summer. Steadily accelerate from slow to fast.
5.Single operation lever is the reverse rotation lever.
6.Nut 27 is a pressure regulating valve.
7.operating lever is the big arm lifting rod.
8.operating lever is to control the drill bit to move front or back.
9.operating lever is the vertical bar controller.
10.Max. lifting weight: 3-4t.
11.Heavy lifting from the host cannot be more than 7meters.
Wire rod digging machine bored piling equipment could be product well in 7 days, custoer can also come to factory see workers working, testing machine, far way customer, we can take photos of machine during product
