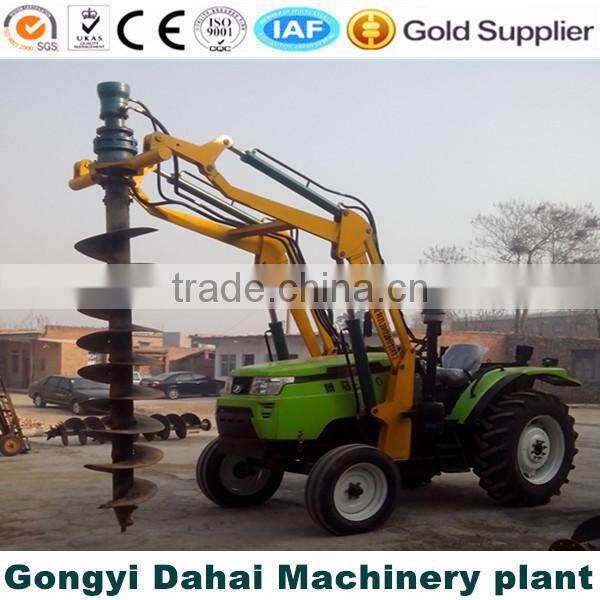

High quality DH-1004 hydraulic rotary pile driver machine, hydraulic screw pile driving machine
DH-pole erection machine is widely used to plant big plants and to erect electricity and solar poles. The Pole Erection Machine is a tractor operated application, designed especially for Rural Electrification work hence Pit designs and dimensions can be customized as per pit design.
cement pole borehole of power construction, Photovoltaic (pv) stent pile foundation drilling, Pile foundation of building construction and so on.
Drilling depth |
0 -6m |
Drilling diameter |
1m-2m |
Standard drill pipe |
300mm-500mm (can customize 500~1000mm drill pipes) |
Lifting method |
Full hydraulic |
Standard drilling time |
40s (diameter of 300mm-500mm) |
Drill Head Material |
Tungsten alloy |
Auger Material |
High-manganese carbon steel |
Crane |
5 ton or 8 ton for choice |
Tractor |
Model 1004 BOMR tractor, 100HP |
Dimension |
L5900*W2000*H2600mm |
Weight |
7.3 t |
Application |
loess, clay, pebble sand, weathered granite, tundra. |
Not suitable for |
rocks, whole sand bed ,household garbage and so on. |
Operator needed |
1 person |
1) Pit Boring Making Machine
Drilling depth |
0 -6m |
Drilling diameter |
1m-2m |
Standard drill pipe |
300mm-500mm (can customize 500~1000mm drill pipes) |
Liftingmethod |
Full hydraulic |
2) Pole Erection Machine
DH850 |
73.5HP |
300-800mm |
<6000mm |
Digging, put line, vertical rod, Bulldozing, |
3 tons crane Wire rod length below 12 meters |
5 tons crane Wire rod length 12-15 meters |
DH1004 |
73.5HP |
300-1200mm |
<6000mm |
Digging, put line, vertical rod, Bulldozing, |
5 tons crane Wire rod length 12-15 meters |
8 tons crane Wire rod length below 15 meters |
1.widely use, sutiable in The loess layer, clay layer, containing pebbles gravel soil, weathered rock and soil,
frozen soil, building garbage, backfill sand, garbage layer.
2. The national patent certification
3.long service life
4.energy-saving
dessional design: well use of hydraulic system, make machine working mor efficiency.
1. Have four hydraulic stabilizer legs, with cross-country 2 or 4 wheel-drive, with wide tires
2. 360° rotation gear motor, hydraulic hoisting and drilling system, combining the auger drill rig with crane, one equipment can realize the drilling and pole uprighting work, more efficient and cost-effective.
3. YTO tractor as power, strong enough.
4. Fully hydraulic driving.Full-automatic put and upright the pole.
