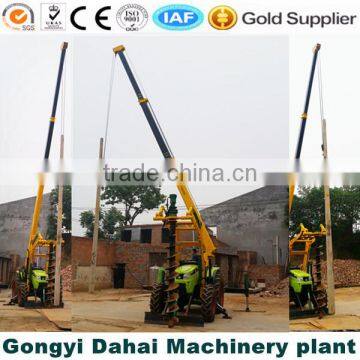

Tractor Mounded Auger Drilling Machine With Crane for Lifting Pole

Tractor mounded auger drilling machine with crane for lifting pole

Introduction of tractor crane

         Tractor mounded auger drilling machine with crane for lifting pole is new type machine which equipment crane bulldozer drill on YTO tractor, can drilling hole at deepth below 6 meters and diameter of 300-1200mm. widely using in  Railway, highway, bridge construction.

can drilling a hole in one minute,have been incite on CCTV 10 and now it's working well in Kenya for the construction of  Nairobi - Barcelona s as follows

Parameter of  Tractor crane

1/power: 100HP. 73.5KW four wheel tractor   2/The drilling depth: 0 m -6 M 3/Bore diameter: 0mm-1200mm 4/ Spiral drill hydraulic drive form: hydraulic hoist 5/Standard bar pit time: 40 seconds (500mm in diameter x depth 3M) 6/operate:one driver 7/ Approved:CE,ISO9001,ISO9002,SGS 8/Net/Gross Weight: 6.68t/6.8t  9/Package Dimension:full 20 feet container 10/color:yellow and green   11/Working principle: screw be pushed by power from hydraulic.

Tractor mounded auger drilling machine with crane for lifting pole is widely using in Highway bridge construction isequipment with 7 founctions for choose :digging ,ditching, etc.suitable for building fast into the hole in foundation engineering construction machinery.

professional design screw drill ,can working well on very kinds of layer, also includethe pebble soil.

Factory working of tractor crane

India customer visting factory and testing the machine

How to choose right type machine for your project?

1: What kind of drilling work can it do?

Mainly applies to drill wells for farm irrigation wells, garden irrigation wells, drilling water wells, geothermal wells. Geological explorations, sample taking, pilling driving drill.

2: What are the max. depth and the max. diameter of holes allowed for this drill rig?

300-1200mm diameter and 6m depth are available.  Here we sincerely inform that the final depth and diameter will subject to your special local working strata and drilling experience.

3: What kind of working strata is OK ?

Soil, sandy, clay, sediment, soft rocks, etc. Certainly, the special strata need different drilling bits.

4: What is your advantage over this drill?

Economical and worthy to owned by any family, company.    Practical and efficient by drilling speed of drilling a hole in 1 minute. Easy operate and maintain by only two workers.
