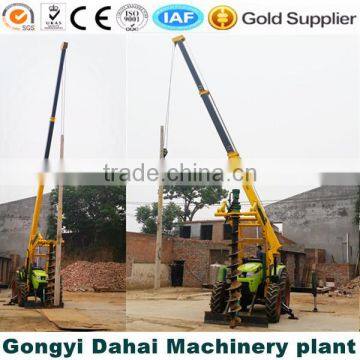

Tractor mounded screw drilling rig with crane well working in Power facilities construction
Main part:
tractor mounded screw drilling rig with crane well working in Power facilities construction include:
Tractor+drilling rig+crane+bulldozer
Functions
1.Dahai hydraulic drilling machine using YTO tractor mounded drilling rig can drilling hole at diameter of 300-1200mm ,depth at 100-6000mm.
2.tractor post 5/8 tons crane on the back of tractor, can lifting pole at 12-15meters and over 15 meters. lifting weight at 5-8tons,max length of pole to tractor is 6 meters when lifting.
3.Per-bulldozer can bury pole in short time after vertical pole.
Parameter
1/power: 100HP. 73.5Kw four wheel tractor
2/The drilling depth: 0 m -6 M 3/Bore diameter: 0mm-1200mm 4/ Spiral drill hydraulic drive form: hydraulic hoist 5/Standard bar pit time: 40 seconds (500mm in diameter x depth 3M) 6/operate:one driver 7/ Approved:CE,ISO9001,ISO9002,SGS 8/Net/Gross Weight: 6.68t/6.8t 9/Package Dimension:full 20 feet container 10/color:yellow and green
11/Working principle: screw be pushed by power from hydraulic. | |
Patent number:201220172343.2,
Applicable engineering range:
Electricity and telecommunications, municipal engineering, tree planting, construction of the cement poles pit digging, solar photovoltaic power generation project of solar panel bracket drilling, screw pile piling, vertical rod, ditching,put line, backfill soil, cutter grinding traction and 3-8T thing hoisting and single exercise can have smooth operation, work efficiency increase a hundredfold.
Applicable terrain:
Loess layer, clay layer, containing a pebble gravel soil, weathered rock and soil, frozen soil layer, building filling garbage, full of sand, garbage layer.
Product honor:
Attend to I love the invention on CCTV10 in 2012,The audience loved and received praise
from the industry.Now Dahai hydraulic drilling machine has been sent to 50 cities in China to participate in the electric power construction section. Well working in Nairobi Kenya - Mo Barcelona railway construction site operations by the existing ten machines via by Railway company. Chinese ambassador to Kenya Liu Xianfa to the scene to visit the photos back.
In order to order the suitable product,you need to make sure the following details:
application→drilling depth→drilling caliber→stratum
