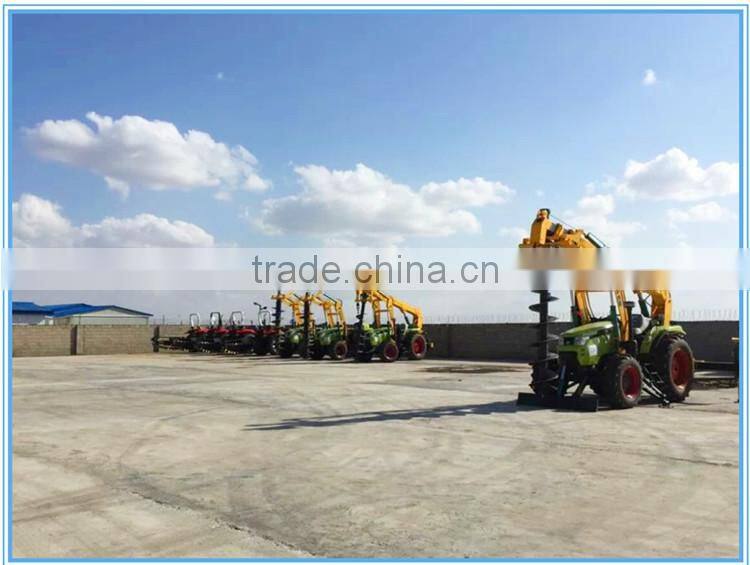

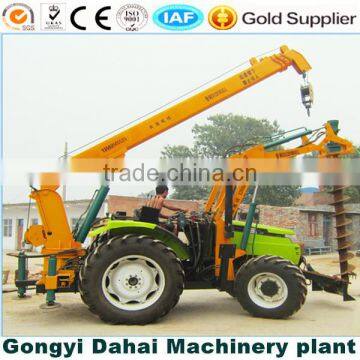

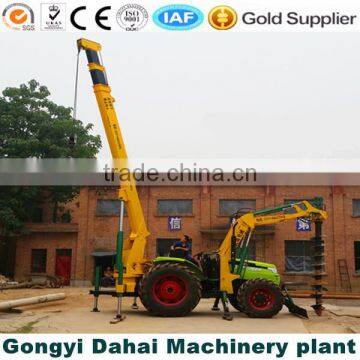

New type Tractor crane drilling machine pole vertical machine
Introduction of Tractor crane drilling machine
Tractor crane is a machine who can digging hole,hanging up the wire rod and bury all alone.
widely using in Highway and bridge construction, now is well working in Kenya at Construction site of Nairobi - Mombasa railway Liu xianfa embassy of Chinese Embassy in Kenya go to the and take the photos.
One person operate and one help to fix the wire rod. Save manpower
and with high efficiency.easy working on The loess layer, clay layer, containing pebbles gravel soil, weathered
rock and soil, frozen soil, building garbage, backfill sand, garbage layer.
1/power: 100HP. 73.5KE four wheel tractor
2/The drilling depth: 0 m -6 M
3/Bore diameter: 0mm-1200mm
4/ Spiral drill hydraulic drive form: hydraulic hoist
5/Standard bar pit time: 40 seconds (500mm in diameter x depth 3M)
6/operate:one driver
7/ Approved:CE,ISO9001,ISO9002,SGS
8/Net/Gross Weight: 6.68t/6.8t
9/Package Dimension:full 20 feet container
10/color:yellow and green
11/Working principle: screw be pushed by power from hydraulic.
Working principle of tractor crane
Unit structure of tractor crane with 100 horsepower YTO tractor as power, a hydraulic pump, distributor drive the
speed reducer and drill pipe work, simple operation, strong off-road capability.
tractor is the power, lead machine working, hydraulic system control drill working, can give out high puch on drill, digging hole at deepth <6000mm, diameter of the drill can be changed.
new design ,add 2 more box rion on the arm of digger, so it can be more stable in digging.
Spare parts of tractor crane
Alloy spiral drill: alloy raw materials, high hardness, flexibility, 360 spinning, unique process design, make its in the work force uniform, dig a hole of high efficiency and the pit wall smooth, suitable for a variety of soil, such as: China, contains gravel pebbles and other hard soil layer, permafrost, sand, clay layer, construction waste, backfill soil.
Factory Introduction:
Gongyi Dahai machinery plantwas built up in 1980 and have been casting of machines for 30 years , covering an
area of about 20000 square meters.hydraulic digging machine is the main part deisgn by Dahai Pan ,who have been invite to the CCTV show I love the invention. be well knowen at his well use of hydraulic system.
Transport:
A single machine can be loading in a full 20 feet container, 2 sets need a full 40 feet container. machine can be drive into container directly.
Customers can come to our factory testing the machines and also can learn operate machine with the help of our drivers. welcome everybody!
