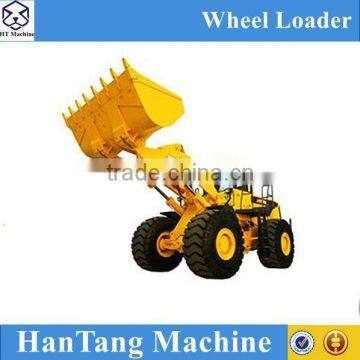

ZL30F Wheel Loader+3 Ton Loader Hot Sale

Shandong Hantang Machine Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

Model Number:

ZL30

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port;Tianjin Port Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HT

Model Number ZL30

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4750*1730*2500mm

Rated Load 3000kg

Warranty 1 year

After-sales Service Provided Overseas third-party support available

Performance
Rated loading		3000kg
Overall weight		9600kg
Rated bucket capacity		1.7---2.5m³
Maximum tractive force		97KN
Maximum breakout force		127KN
Maximum grade ability		30℃
Maximum dump height		3100mm
Maximum dump reach		1006mm
Overall dimension (L×W×H)		6890×2430×3070mm
Minimum turning radius		5097mm
Engine
Model		YC6B125-T20yuchai YC6B125-T20
Type		lnline water cooled, four stroke
No. of cylinder-bore/stroke		6—108×125mm
Rated power		92kw
Maximum torque		500N.m
Min fuel-consume ratio		≤210g/kw.h
Transmission system
Torque converter		YJ315—x
Gearbox mode		Power shift normally engaged straight gear
Gear shift		4forward shift 2 reverse shift
Maximum speed		40km/h
Axle
Main reducing mode		Bevel gear grade lreduction
Decelerating mode		Bevel gear grade lreduction
Wheel base (mm)		2660mm
Wheel tread		1800mm
Ground clearance		400mm
Hydraulic system
System working pressure		16.5MPa
Boom lifting time		4.83s
Total time		9.15s±0.5s
Fuel tank capacity		156L
Function of leveling automatically		yes
Brake system
Service brake	Air assist disc brake on 4 wheels
parking brake	Manual disk brake
Tyre
Type specification	17.5-25
Front tyre pressure	0.4Mpa
Rear tyre pressure	0.35Mpa
