Product performance ZL50G Loader:
A central hinged frame, featured by small turning radius, flexible trafficability and excellent lateral stability, is convenient for operations in narrows sites.
The design of streamline form, by using the punching technology of combined molds, makes the overall appearance more attractive, and cab, with large turning glass in front and rear, has good lighting and wide visual field.
An air-over-oil caliper disc type foot brake system, gas cut-off brake and emergency brake systems are available.
The hydraulic mechanical drive can automatically vary speed with external resistance, so as to fully utilize the power of the engine, improve the overall trafficability, simplify the operation, and protect the drive parts and the engine.
The use of full-hydraulic steering, power-shift and hydraulic control to a working device ensures the light and flexible operation and stable and reliable movement.
Low-voltage wide-base engineering tyres, in the method of manual swing, have excellent cross-country ability and trafficability.
The working device adopts the pilot control, and the steering system by the method of load sensing coaxial flow amplification is light and flexible to operate.
2. Main parameter of ZL50G Wheel loader
Performance |
1 |
rated load |
5000kg |
2 |
overall weight |
17100kg |
|
3 |
rated bucket capacity |
3m3 |
|
4 |
maximum tractive force |
152KN |
|
5 |
maximum breakout force |
≥170KN |
|
6 |
maximum grade ability |
30℃ |
|
7 |
maximum dump height |
3150mm |
|
8 |
maximum dump reach |
1250mm |
|
9 |
overall dimension (L×W×H) |
7920×3050×3400mm |
|
10 |
minimum turning radius |
6640mm |
|
Engine |
11 |
model |
Weichai Steyr WD615G.220 |
12 |
type |
lnline water cooling dry cylinder injection |
|
13 |
No. of cylinder-bore/stroke |
6-126×130mm |
|
14 |
rated power |
162kw--2400r/min |
|
15 |
maximum torque |
860N.m |
|
16 |
min fuel-consume ratio |
≤215g/kw.h |
|
Transmission system |
17 |
torque converter |
YJ375 |
18 |
gearbox mode |
Power shift normally engaged straight gear |
|
19 |
gear shift |
2 forward shift |
|
1reverse shift | |||
20 |
maximum speed |
38km/h |
|
Drive axles |
21 |
main reducing spiral
|
bevel gear grade 1reduction |
22 |
decelerating mode |
planetary reduction,grade 1 |
|
23 |
wheel base (mm) |
3200mm |
|
24 |
wheel tread |
2250mm |
|
25 |
minimum ground clearance |
450mm |
|
Hydraulic system |
26 |
system working pressure |
18MPa |
27 |
boom lifting time |
5.95±0.2s |
|
28 |
total time |
10.95±0.5s |
|
29 |
fuel tank capacity |
300L |
|
30 |
function of leveling automatically |
yes |
|
Brake system |
31 |
service brake |
air over hydraulic disc brake on 4 wheels |
32 |
parking brake |
manual parking brake |
|
Tyre |
33 |
type specification |
23.5-25 |
34 |
front tyre pressure |
0.4Mpa |
|
35 |
rear tyre pressure |
0.35Mpa |

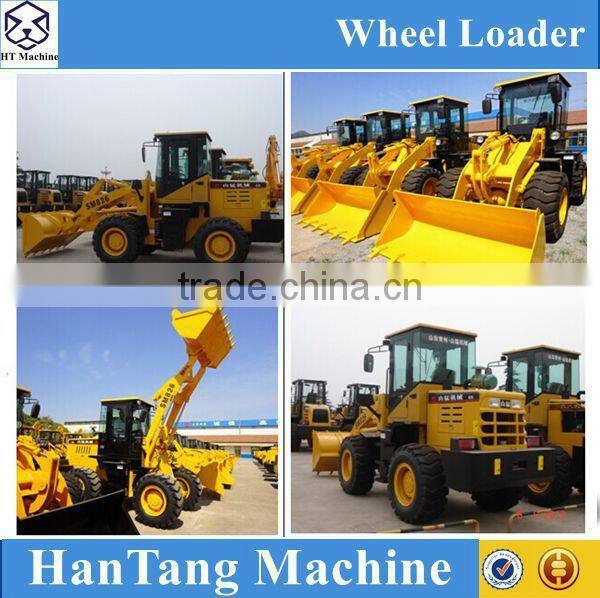

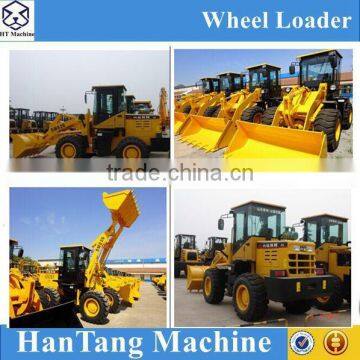

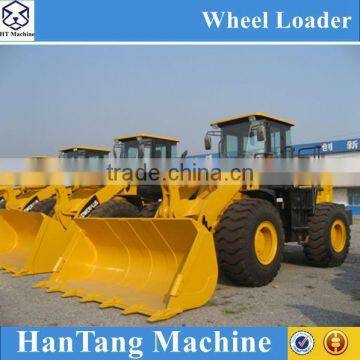

3 Our product pictures

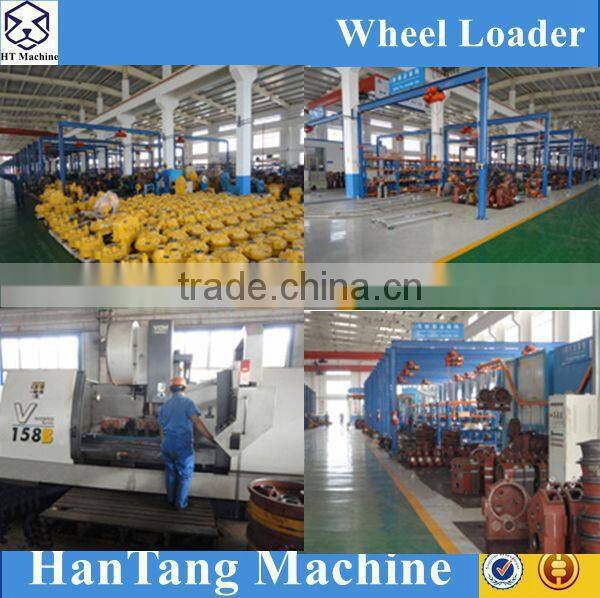

4. Production factory
