Rated loading2000kg
Overall weight6000kg
Rated bucket capacity1.2m3
Maximum tractive force≥54KN
Maximum breakout force≥45.4KN

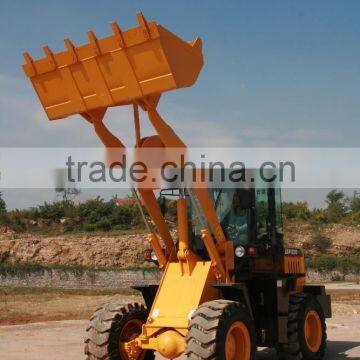

WS20F Wheel Loader
Performance | |
Rated loading |
2000kg |
Overall weight |
6000kg |
Rated bucket capacity |
1.2m3 |
Maximum tractive force |
≥54KN |
Maximum breakout force |
≥45.4KN |
Maximum grade ability |
30℃ |
Maximum dump height |
2630mm |
Maximum dump reach |
863mm |
Overall dimension (L×W×H) |
5853×2000×2750mm |
Minimum turning radius |
4759mm |
Engine | |
Model |
YT4B2-G53Q |
type |
Vertical, in-line, water cooled, 4-stroke diesel engine |
No. of cylinder-bore/stroke |
4—108×130mm |
Rated power |
55kw—2400r/min |
Maximum torque |
252N.m |
Min fuel-consume ratio |
≤242g/kw.h |
Transmission | |
Torque converter |
YJ—280A |
Gearbox mode |
Countershaft power-shift |
Gear shift |
2 forward shift 2 reverse shift |
Maximum speed |
24km/h |
Axel | |
Mode |
Circular Arc Bevel gear, single stage |
Decelerating mode |
Single stage planetary type |
Wheel base (mm) |
2250mm |
Wheel tread |
1640mm |
Ground clearance |
310mm |
Hydraulic system | |
System working pressure |
16MPa |
Boom lifting time |
4.8s±0.2s |
Total time |
9.2s±0.5s |
Fuel tank capacity |
80L |
Function of leveling automatically |
yes |
Brake system | |
Service brake |
air assist disc brake on 4 wheels |
parking brake |
flexible shaft operated external drum |
Tyre | |
type specification |
16/70—20 |
front tyre pressure |
0.22Mpa |
rear tyre pressure |
0.18Mpa |
Payment Terms: T/T 30% in advance, and the balance by T/T after leaving the factory..
Delivery time: within 30 days after receiving the deposit.
1. Guaranty time: 12 months (calculating from the date the machine leave the port of loading) or 1200 working hours, whichever comes first.
2. Provide maintenance instruction, parts list, packing list, accessories and tools free of charge when send the machine to you.
3. Provide the parts free of charge in the guaranty time if the parts cannot work well.
4. Excess the guaranty; you can easily to buy from us with cost price anytime.
