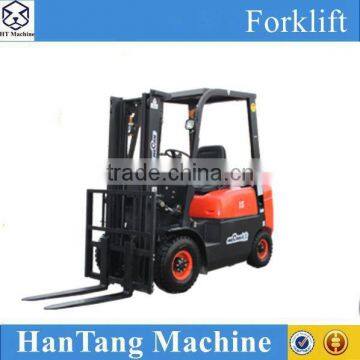

Mini forklift for narrow and small space
Low center of gravity, small turning radius; more stable and reliable
Comfortable seat for long-time operation
Safe overhead guard
Rear light for working in the dark
Dual air filter
Streamline balance weight
Side shifter is optional
Optional mast: 2-stage 3.3m/3.5m/4mmast; 3-stage4.5m/5m/5.5m/6mmast.
General | |||
Brand | HANTANG | ||
Model |
| CPCD15FR | CPCD18FR |
Rated capacity | kg | 1500 | 1800 |
Load center | mm | 500 | 500 |
Power type |
| Diesel | Diesel |
Transmission |
| Hydraulic/Mechanical | |
Dimensions | |||
Lifting height | mm | 3000 | 3000 |
Free lifting height | mm | 70 | 70 |
Turning radius | mm | 2000 | 2000 |
Overall length | mm | 3195 | 3195 |
Overall width | mm | 1085 | 1085 |
Overall height (mast lowered) | mm | 1995 | 1995 |
Overall height (mast raised) | mm | 4030 | 4030 |
Overall height (overhead guard) | mm | 2085 | 2085 |
Fork length | mm | 1070 | 1070 |
Fork width | mm | 122 | 122 |
Fork thickness | mm | 40 | 40 |
Max. driving speed (with/without load) | km/h | 14.5/15 | 14.5/15 |
Performance | |||
Max. lifting speed (with load) | mm/s | 500 | 500 |
Max. traction (with/without load) | kn | 14.4/8.4 | 14.4/9.1 |
Gradeability (with/without load) | % | 15/20 | 15/20 |
Tilting angles (forward/backward) | ° | 6/12 | 6/12 |
Service weight | kg | 2650 | 2850 |
Engine | |||
Engine model |
| 485BPG engine | 485BPG engine |
Power | kw | 30 | 30 |
Rated speed | rpm | 2600 | 2600 |
Displacement | L | 2.07 | 2.07 |
No. of cylinder |
| 4 | 4 |
Wheel | |||
Front overhang | mm | 430 | 430 |
Wheel base | mm | 1450 | 1450 |
Front tread | mm | 890 | 890 |
Rear tread | mm | 920 | 920 |
Front tire |
| 6.50-10-10 | 6.50-10-10 |
Rear tire |
| 5.00-8-10 | 5.00-8-10 |
Payment Terms: T/T 30% in advance, and the balance by T/T after leaving the factory..
Delivery time: within 30 days after receiving the deposit.
We have our own services teams. You can always contact us if you have any questions.
We promised our clients the 24 hours feedbacks services.
Your questions or requirements will be answered promptly.
