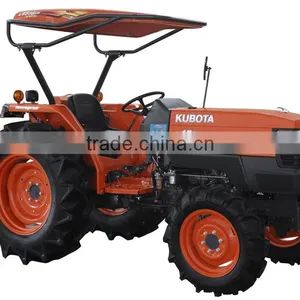

TRACTOR L4508

TRACTOR L4508 thumbnail-1
TRACTOR L4508 photo-1
US$ 10,000 - 10,000 MOQ: 1 Barrel
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Agritech Goldstar Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
CATLAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 45hp
Certificate EEC
Brand Name KUBOTA
Model Number L-4508
Place of Origin Bangkok, Thailand
After-sales Service Provided Engineers available to service machinery overseas

TRACTOR L4508



SPICIFICATION TRACTOR L-4508





Model

L4508

4WD

Engine

Type

Kubota V2203-M-DI
Vertical 4-cycle water-cooled diesel, direct injaction

No. of cylinders

4

Total displacement ( cc )

2,197

Engine gross power ( HP )

45.0@2600 rpm

Engine net power ( HP )

43.1@2600 rpm

PTO power ( HP )

37.6@2600 rpm

Fuel tank capacity ( l )

42

Dimensions

Overall length (without 3P) ( mm )

3,120

Overall width ( mm )

1,495

Overall height ( mm )

1,510

Wheelbase ( mm )

1,845

Min. ground clearance ( mm )

385

Tread

Front ( mm )

1,150

Rear ( mm )

1,220 / 1,325 / 1,350 / 1,445 adjustable

Weight ( kg )

1,370

Clutch

Dry type Single stage

Drive axis

4x4 (4 wheel drive) switchable

Traveling System

Tires

Front

8 – 18

Rear

High lug: 13.6-26 / Low lug: 12.4-28, Paddy field tyre, water proof

Steering

Hydrostatic power steering

Transmission

Gear shift, 8 forward and 4 reverse

Brake

Oil immersed brakes (wet disk type)

Min. turning radius (with brake) ( m )

2.6

Traveling speed ( km/h )

Min. 2.0 / Max. 28.5

Hydraulic

Hydraulic control system

Position control

Pump capacity ( l/min )

29.4

3-Point Hitch

Category Ⅰ&Ⅱ

Max. lift force

At lift points ( kg )

1,300

24 in. behind ( kg )

1,053

PTO

PTO (Engine speed) ( rpm )

540 (2,183), 750 (2,294)
