Best quality log trailers with crane 4x4WD
- Qingdao
- T/T Credit Card
You May Like
-
Tractor PTO Disc Mower,Hydraulically Operated Disc Mower for Tractor
-
China made 2 years warranty CE approved tractor disc mower
-
Europe standard CE approved best quality tractor mounted grass cutter
-
With CE certification farm machinery rotary disc mower for sale
-
With CE certification new condition farm machinery rotary disc mower for sale
-
With CE certification new condition rotary disc mower with factory direct price
Product Details
| Condition | New | Type | Other, Timber Trailer With Crane | |
| Use | logs transportation | Power Type | Other, Gasoline or Diesel;Tractor Hydraulic Driven | |
| Production Capacity | 7-11cbm/h | Place of Origin | Shandong, China | |
| Brand Name | LONGTAO | Model Number | LT3000 | |
| Dimension(L*W*H) | 2250x930x1100 | Weight | 880kgs | |
| Certification | CE ISO | Warranty | 18 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

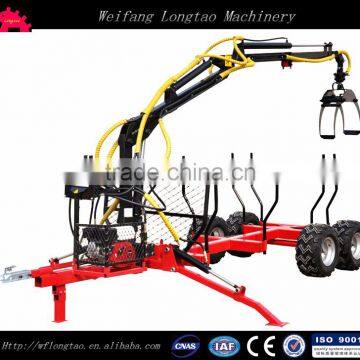

Log Loading Trailer with Crane
Features:
1.Lightweight, strong, highly maneuverable and designed to be very stable even when fully loaded
2.Easy to operate by joystick
3.Stabilizing legs fully hydraulic, convenient extend to create a wide base for better balance and safety.
4.Can be attached to ATV, truck, car or tractor.
5. High reliability ,Simple hydraulic and mechanical systems, easy to use and maintain.
6.High quality laser cut parts. Boom is made of Q235 plates for extra strength and durability
The timber trailer with crane that could be used all year around has been our biggest aim. Save energy for our Green World is also more and more important. Thus, you can use the oil pump of your tractor and share some PTO set from your tractor. Of course, for each conditions use, if the vehicle does not have an oil pump, you replace it with our hydraulic unit that has6.5 to 15hp diesel or gasoline engine to give the needed oil pressure so to effectively operate the crane, drill or bucket.
Parameters:
| Model: | LT1500(1.5 Tons) | LT3000(3 Tons) | LT6000(6 Tons) |
| Max. Reach : | 3400mm | 4100mm | 4100mm/5500mm |
| Lifting capacity: | 300kgs | 300kgs | 500kgs |
| Max. opening Grapple: | 700mm | 700mm | 800mm |
| Working pressure : | 20Mpa | 20Mpa | 20Mpa |
| Pump Capacity: | 5.8L/min | 5.8L/min | 5.8L/min |
| Max. load : | 1500kgs | 3000kgs | 6000kgs |
| Hydraulic oil tank: | 12L | 12L | 18L |
| Motor: | 6.5 hp | 6.5hp | 13hp |
| Wheels: | 22X11-10 | 22x11-10 | 11.5/80-15.3 |
| Length : | 3815mm | 4600mm | 4600mm |
| Width : | 1252mm | 1550mm | 1554mm |
| Measurement(LxWxH)mm: | 2200x930x760 | 2200x930x1100 | 2200x1350x1100 |
| N.W.: | 760kgs | 880kgs | 1300kgs |

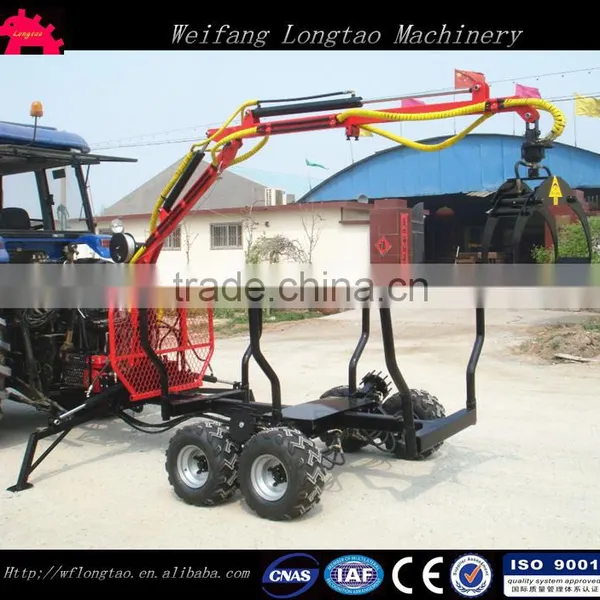

Tractor Hydraulic Driven Log Trailer with Crane
ATV or Tractor Mobile Log Trailer with Crane
Log Trailer with with Tipping Dump
- Longtao offer third party inspection service such as B.V, SGS, COI etc.
- OEM accepeted, customized available.
- Sample available, engineer overseas available for wholesaler.
- Warranty: 24 months warranty, if problem caused by quality factor, we will send you free spar e parts by air within one week
- Delivery time: we deliver within 7-10 days after getting deposit.
- Dealership: We search for long-term dealership, price and quality are good, enough spare parts can be provided.
- Third party: Each machine was tested before shipping, we allow third-party (such as BV, SGS, COI etc.) to test the machine and factory before shipping.
- We accept FOB, CIF, CNF, DDU & DDP. we can help shipping.
- CE, ISO approved.
Established in 1998, and changed to existing name in 2002, Weifang Longtao Machinery is a professional manufacturer engaged in development, production, sale and service of mining machinery, farm machinery and mechanical machining.
Our main products include wheel loader,underground mining loader, underground transport trucks,mining drilling rig rock breaker,hay baler,lawn mower,tractor front loader with backhoe,wood chippers, power tillers, farm tools and varieties, etc. The annual output amounts to 150,000 units. We also do processing with sample, drawings or materials supplied, and OEM orders are welcome
