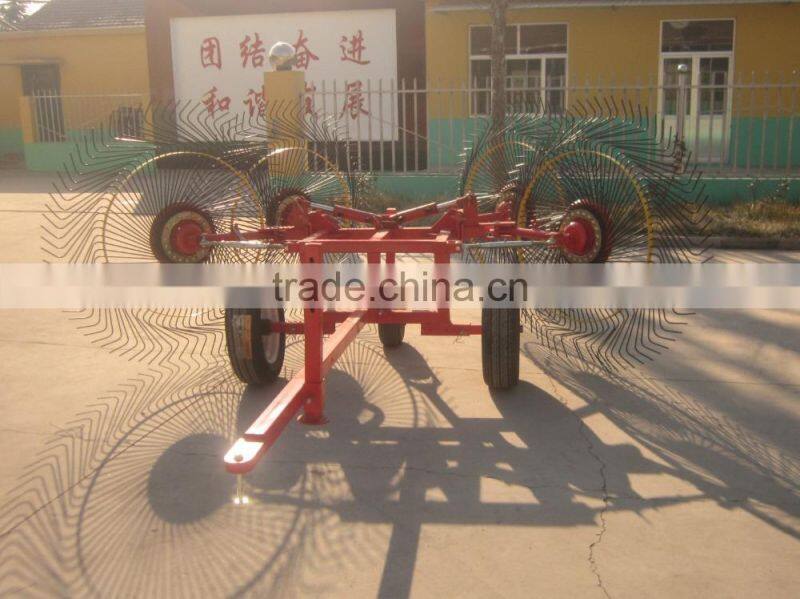

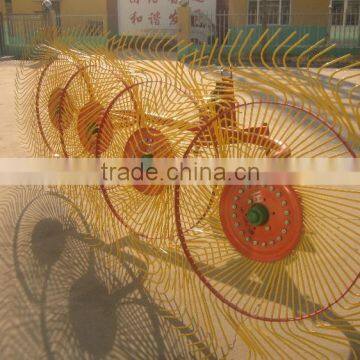

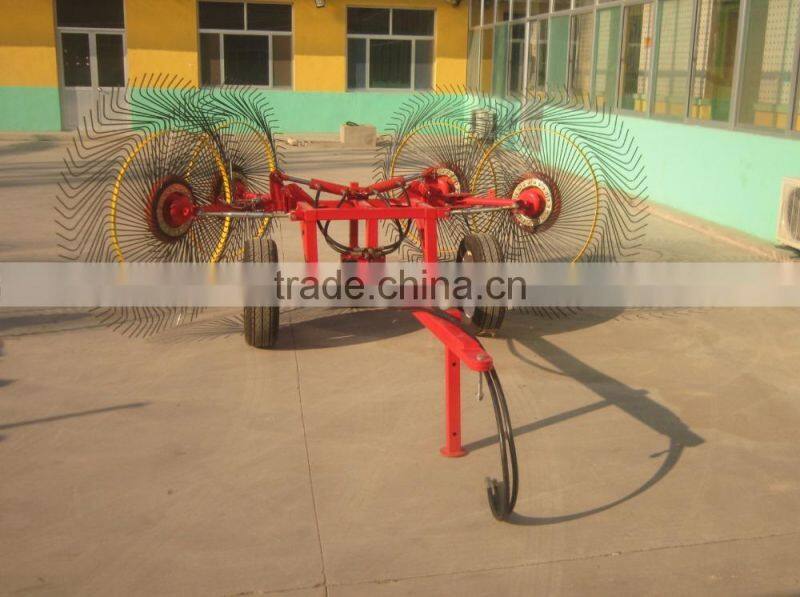

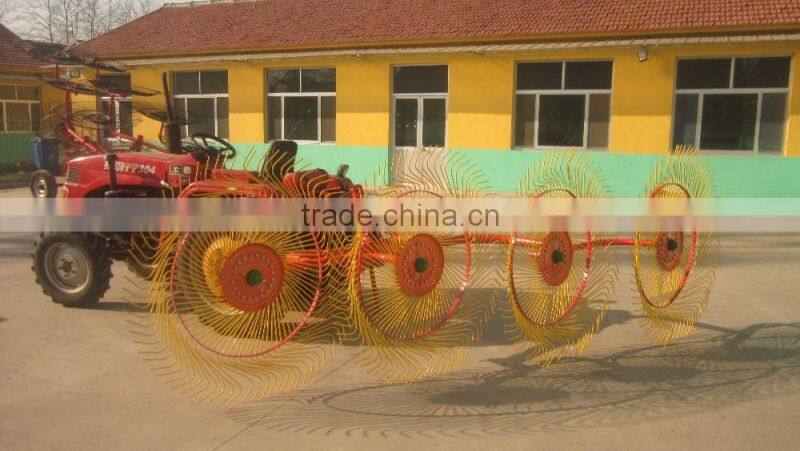

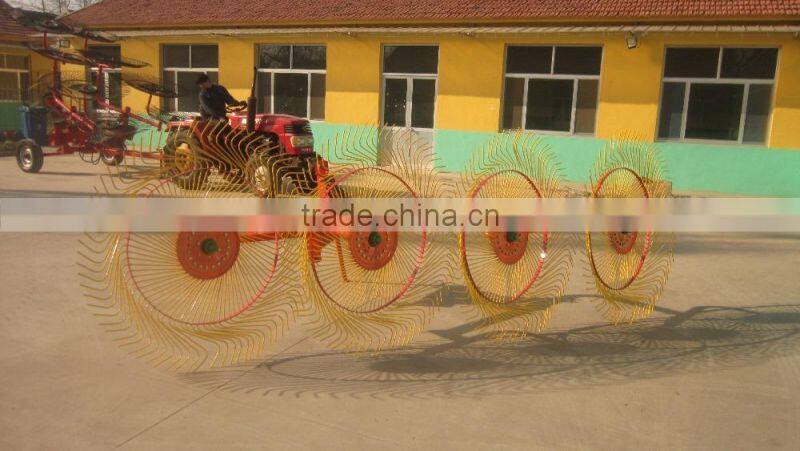

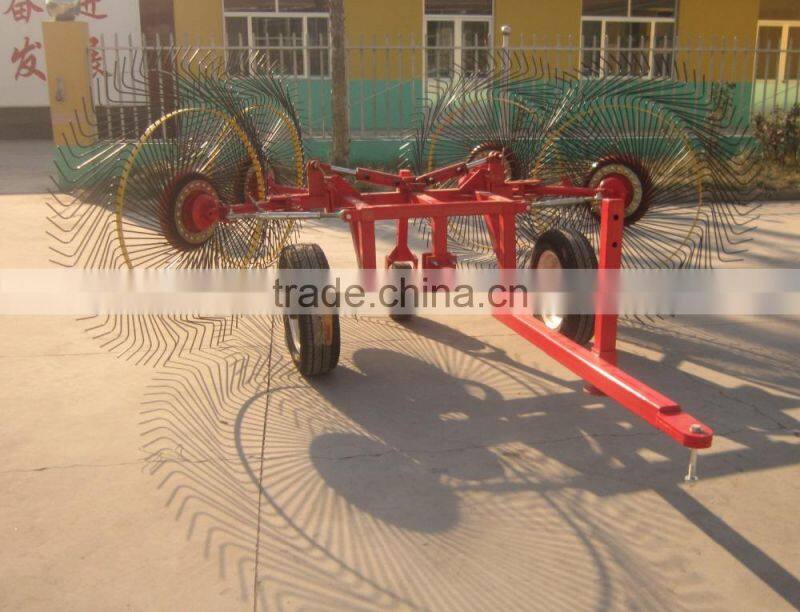

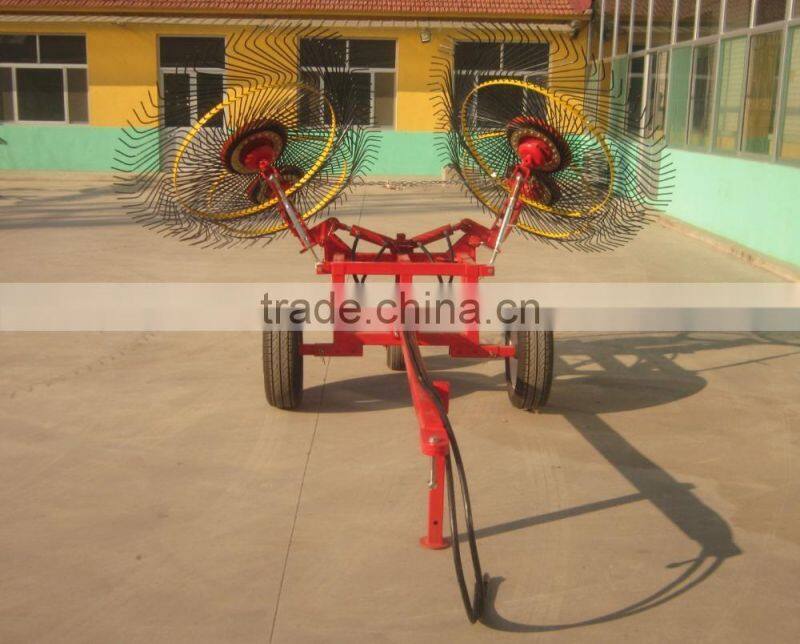

factory direct Europe popular CE approved mini grass hay with 8 discs tedder
Features:
1.Strong, rugged frame provides years of dependable performance.
2.Rotor tilt can be adjusted easily with a convenient crank for maximum crop handling.
3.Torque limiting clutch on the heavy-duty PTO provides overload protection. PTO speed is variable, so you can match ground speed to crop and field conditions.
4.Three wheel-height position let you adjust for different crops, conditions and operations.
5.Vertical tines pick up fewer stones and less debris than horizontal tines for cleaner tedding and raking.
6.Cam track adjustment allows you to quickly tailor tedding/raking action to varying crops and conditions without tools.
7.Convenient jack simplifies three-point hitch arrangements.
8.one machine, three functions, tedding, raking, and reversing multi-functions
Parameters:
Model | 9LZ-3.0 | 9LZ-4.0 | 9LZ-4.8 |
Dimension(m)(L×W×H) | 2.3×3.6×1.5 | 2.8×4.9×1.5 | 3.6×5.3×1.5 |
Weight(kg) | 160 | 300 | 360 |
Working speed(km/h) | 5 | 10 | 15 |
productivity(h/h) | 1 | 1.5-3.5 | 3-5 |
working width(m) | 3 | 4 | 4.8 |
No. of rake plate | 4 | 6 | 8 |
Plate diameter(m) | 1.46 | 1.46 | 1.46 |
No of teeth for each rake plate(pc) | 80 | 80 | 80 |
Missing rate | 1 | 1 | 1 |
swath width(m) | 1-1.5 | 1-1.5 | 1-1.5 |
Matched powered | 20-40hp | 30-50hp | 30-70hp |
Linkage | Rear 3 point linkage or trailed | ||
Equipment width during transport(m) | 3.2 | 3.2 | 3.2 |
Equipment height during transport(m) | 3 | 4.3 | 5 |
Our Services
- Longtao offer third party inspection service such as B.V, SGS, COI etc.
- OEM accepeted, customized available.
- Sample available, engineer overseas available for wholesaler.
- Warranty: 24 months warranty, if problem caused by quality factor, we will send you free spar e parts by air within one week
- Delivery time: we deliver within 7-10 days after getting deposit.
- Dealership: We search for long-term dealership, price and quality are good, enough spare parts can be provided.
- Third party: Each machine was tested before shipping, we allow third-party (such as BV, SGS, COI etc.) to test the machine and factory before shipping.
- We accept FOB, CIF, CNF, DDU & DDP. we can help shipping.
- CE, ISO approved.
Established in 1998, and changed to existing name in 2002, Weifang Longtao Machinery is a professional manufacturer engaged in development, production, sale and service of mining machinery, farm machinery and mechanical machining.
Our main products include underground mining loader, underground transport trucks,mining drilling rig rock breaker,hay baler,lawn mower,tractor front loader with backhoe,wood chippers, power tillers, farm tools and varieties, etc. The annual output amounts to 150,000 units. We also do processing with sample, drawings or materials supplied, and OEM orders are welcome
1.Does the hay rake comes with the tractor?
We usally quote price of hay rake,not including tractor,if you want tractor,we can quote you seperately.
2.The working width of hay rake?
we have 2500mm,3500mm,4000mm working width hay rake.
3.The rotos of the hay rake?
4 pcs,6 pcs,8pcs
4.The hay rake comes with PTO shaft?
Yes
5.How to order?
After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the deposit. For single set, your machine can be ready within 7 days after we getting the deposit, we will send to the port and deliver to you by sea.
-In case for more handing charges, you can transfer 100% of the payment, we can arrange the products and shipping under your allowance.
-If you still don't understand, please don not hestitate to ask me.
