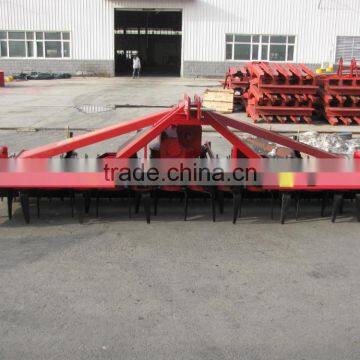

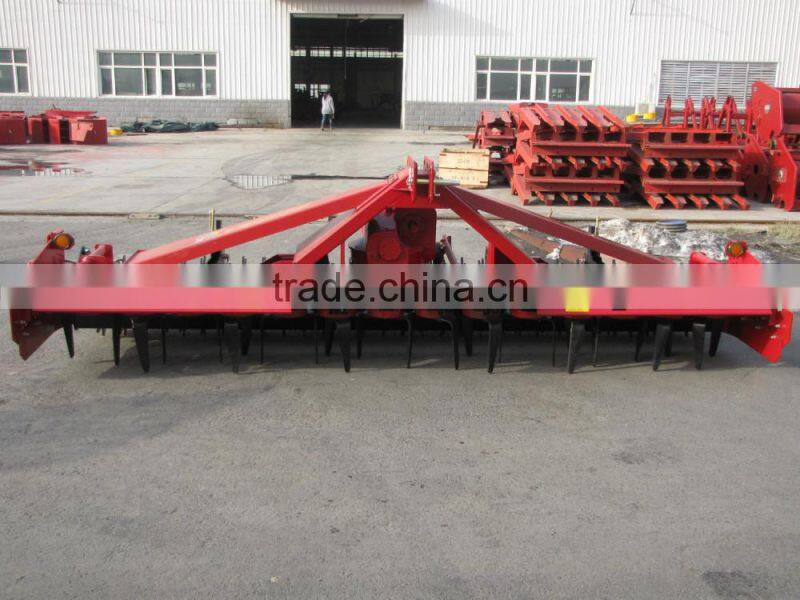

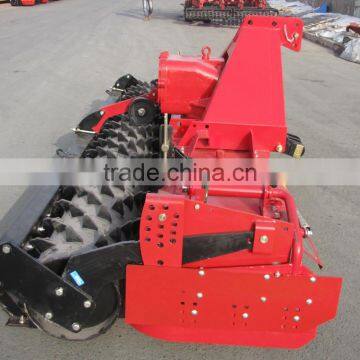

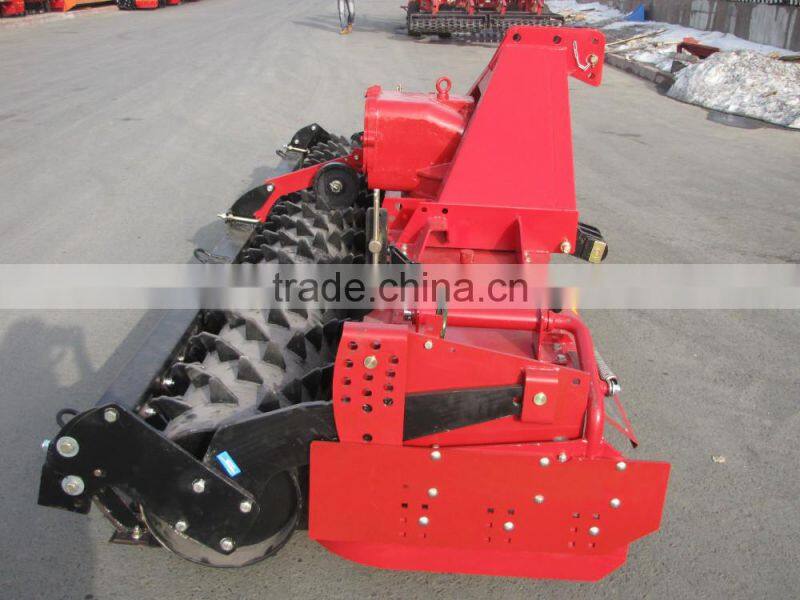

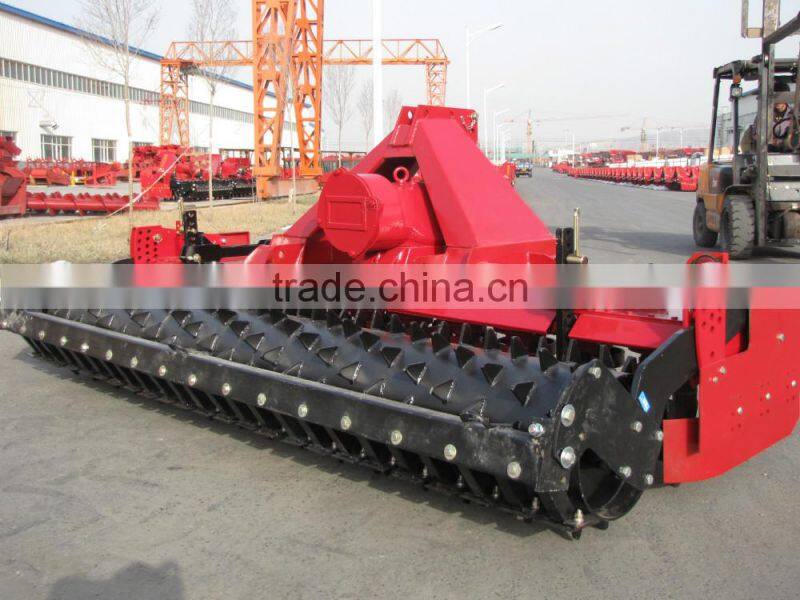

tractor pto driven rotary harrow with high quality
Features:
1LT series power harrow is developed for the arduous soil conditions, which is ideally suitable for all soil types worldwide. Wide spaced heavy duty bearings for stub shafts with special protected oil seals. It can be mactched with heavy duty farm tractors for cultivating in field for rough ploughing, tractor PTO driven, standard 3 point linkage

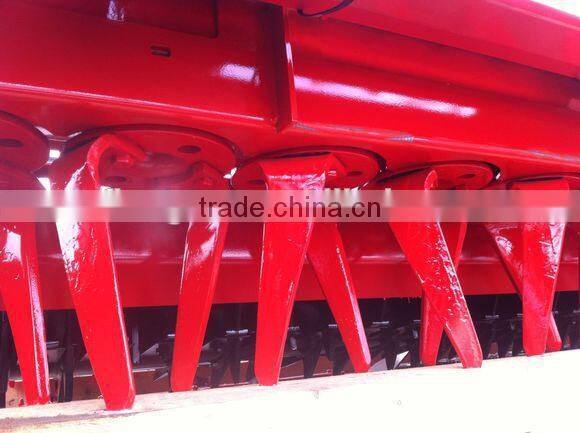

1.Break soil deeply and evenly, avoid large soil block,rotate blade go deep into hard soil below.
2.Match different roller to work in different planting crop.
3.Uncultivated land good partner,a time work to instead of plough and level.
4.Better level land is guaranteed by scrapers and roller well cooperation.
Parameters:
Model |
1LT-2.0 |
1LT-2.6 |
1LT-3.2 |
1LT-3.7 |
1LT-4.2 |
Working width |
2m |
2.5m |
3.1m |
3.6m |
4.2m |
Rotor number |
7pcs |
9pcs |
11pcs |
13pcs |
15pcs |
Blade numbers |
14pcs |
18pcs |
22pcs |
26pcs |
30pcs |
Dimension(mm) |
1520x2220x1200 |
1520x2800x1200 |
1520x3300x1200 |
1520x380x1220 |
1520x4300x1220 |
Working depth |
30-180mm |
||||
Total width |
2300mm |
2800mm |
3300mm |
3800mm |
4300mm |
Weight |
1100kg |
1250kg |
1400kg |
1700kg |
1900kg |
Min. ground clearance |
≥300mm |
||||
Matched power |
80-110hp |
90-125hp |
110-160hp |
140-210hp |
160-250hp |
