40hp automatic hydraulic systerm diesel engine wood chipper/wood cutting machine
- 10000 Unit / Units per Month
- QingDao
-
Hot Selling jansen gts 1500 e drum wood chipper price drum wood chipper zouping
-
HXM-600 CE certificated 5 MT/hour wood chipper machine,wood cutting machine
-
Paper making industrial diesel wood chipper/wood crusher machine/wood crushing machine
-
easymaintenance electric wood chipper wood shredder
-
2021 Hot Sale forestry machinery Small Wood Chipper Machine With Good Price
-
Offer After Sale Service Wood Chips Making Machine/Drum Electric Wood Chipper
Product Details
| Condition: | New | Mill Granularity: | 10-30mm | Aperture Size: | Optional |
| Spindle Speed: | 2200r/min | Number of Cutter: | 3 | Length of Cutter: | 600 |
| Cutter Diameter: | 8 | Inlet Diameter: | 20x22cm | Place of Origin: | Shandong, China |
| Brand Name: | LT | Model Number: | DWC-40 | Dimension(L*W*H): | 1800x1100x1250mm |
| Weight: | 800kgs | Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

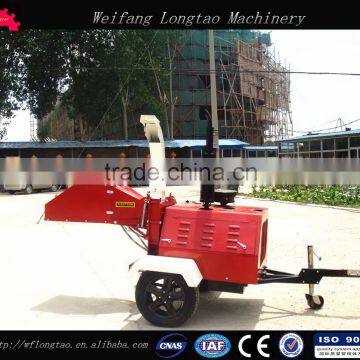

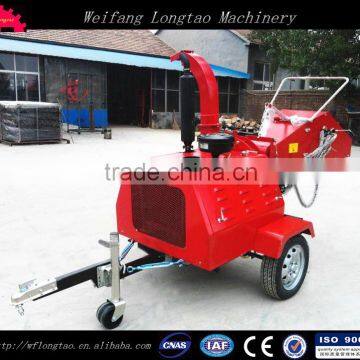

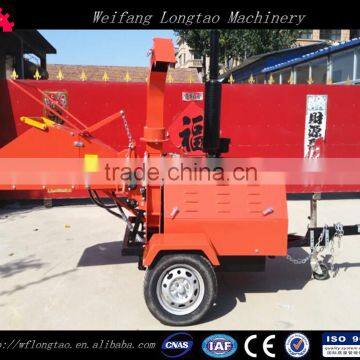

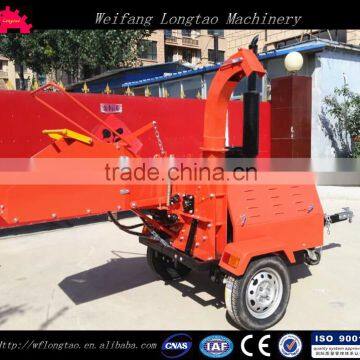

40hp automatic hydraulic systerm with high efficiency diesel engine wood chipper
Features:
1) diesel engine wood chipper / trailer mounted wood chipper/18-50hp optional
2) 40hp , 4 clyinder , electric start
3) double hydraulic motors / double hydraulic feeding systerm / control valve / hydraulic pump
4) 3 Blade, 8" wood chipper
5) CE certificate
Usage:
1. The small chips made by the wood chipper canbe used for animal bedding, for the forestry and soil protecting, for new energy making, for compost and for charcoal.
2. Some customers use their colored garden waste chips, cover the soil and made the garden beautiful; some of them use the garden waste chips in the fireplace.
Parameters:
Model DWC-40 | ||
Engine | Changchai ZN490/29.4kw/40hp | |
Type | vertical,water cooled,4-stroke,direct injection | |
No.of cylinders | 4 | |
Bore×Stroke | mm | 80×90 |
Rated power/rev. | kw/r/min | 29/2200 |
Min.fuel consumption | g/kw.h | ≤247 |
Total displacement | L | 1.809 |
Starting type | electric start | |
Dimension(L*W*H) | mm | 687×494×623 |
Net weight | kg | 215 |
Chipper capacity (diameter) | inch | 8 |
Feeding system | full hydraulic | |
Rotor plate size | cm | 60 |
Rotor plate weight | kg | 85 |
Knives number | 1 stationary knife; 2 rotor knives | |
Packing size (to hopper discharge) | mm | 1760L x 1450W x 1400H mm |
Feed hopper inner opening | cm | 20 x 22 |
Discharge hood height | cm | 200 |
Rated rotary speed | rpm | 1200 |
Tyre model | DOT tyre on road | |
Total Weight | kg | 800 |
Working efficiency | m3/h | 8~13 |
- Longtao offer third party inspection service such as B.V, SGS, COI etc.
- OEM accepeted, customized available.
- Sample available, engineer overseas available for wholesaler.
- Warranty: 24 months warranty, if problem caused by quality factor, we will send you free spar e parts by air within one week
- Delivery time: we deliver within 7-10 days after getting deposit.
- Dealership: We search for long-term dealership, price and quality are good, enough spare parts can be provided.
- Third party: Each machine was tested before shipping, we allow third-party (such as BV, SGS, COI etc.) to test the machine and factory before shipping.
- We accept FOB, CIF, CNF, DDU & DDP. we can help shipping.
- CE, ISO approved
