Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > China Small Wheel Loader JT912, ZL12F With A/C, Quick Hitch and Attachments

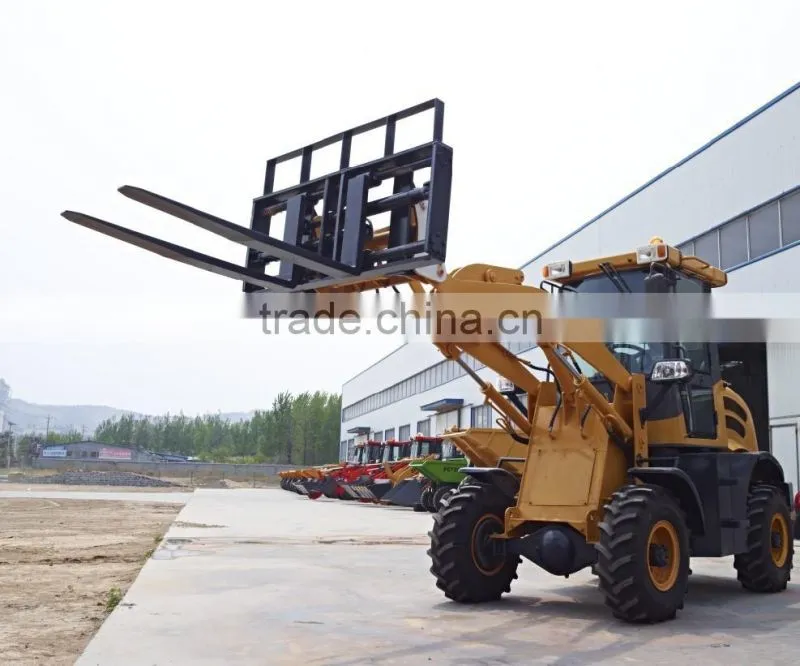

China Small Wheel Loader JT912, ZL12F With A/C, Quick Hitch and Attachments

Name: China Small Wheel Loader JT912, ZL12F With A/C, Quick Hitch and Attachments
Brand: JINTAI
SKU: 140770720
Availability: InStock

China Small Wheel Loader JT912, ZL12F With A/C, Quick Hitch and Attachments thumbnail-1

China Small Wheel Loader JT912, ZL12F With A/C, Quick Hitch and Attachments thumbnail-2

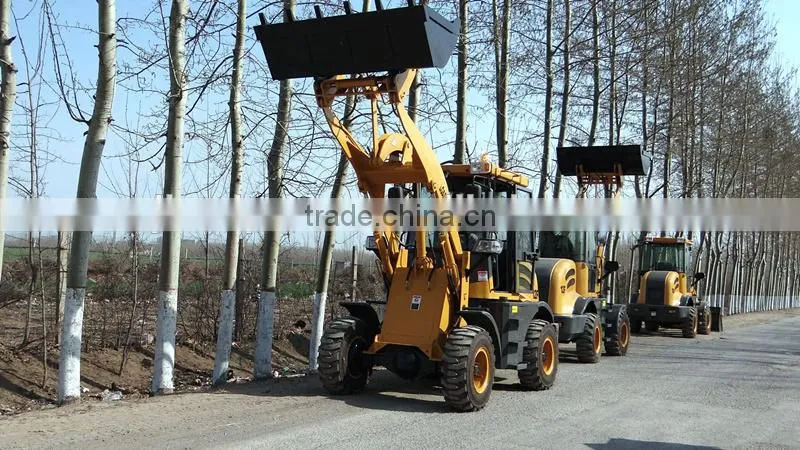

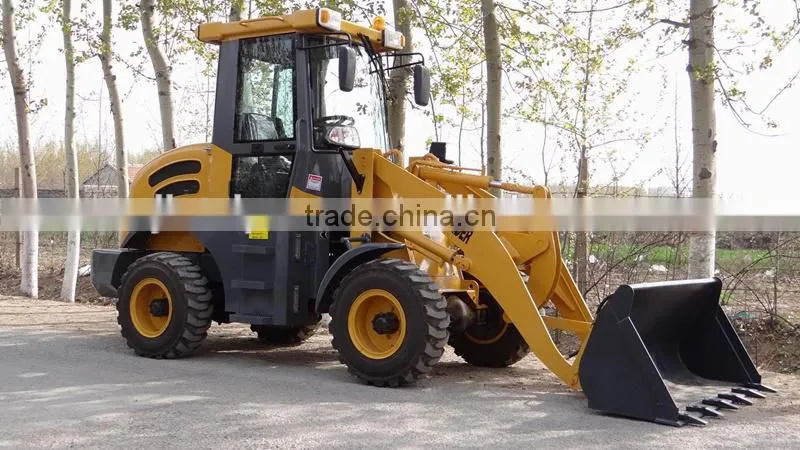

China Small Wheel Loader JT912, ZL12F With A/C, Quick Hitch and Attachments photo-1

China Small Wheel Loader JT912, ZL12F With A/C, Quick Hitch and Attachments photo-2

US$ 1 - 2 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Brand Name:

JINTAI

Model Number:

ZL12F

Contact Supplier Request Quote Chat Now

Weifang Jintai Power Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO CHINA

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Brand Name JINTAI

Model Number ZL12F

Place of Origin Shandong, China

Type Mini Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4500x1620x2550

Rated Load 1200

Certification ce

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Model	ZL12F
Rated weight	1200kg
Rated capacity	0.45 CBM
Max. breakout force	36KN
Dump height	2700mm
Dump reach	970mm
Lifting time	≤4s
Total cycle time	≤8s
Travel speed	Grade 1	6km/h
	Grade 2	18km/h
Max. turning angle	R/L 32°
Turning radius(outside of rear wheel)	3600mm
Wheel base	1920mm
Tread	1320mm
Engine model	490/YTO 3108G56
Rated power	37kw/ 40.5KW
Rated speed	2300 r/min/2200-2300R/MIN
Transmission system type	Hydraulic mechanical operate
Steering system	Load sensing, priority steering
Tire	825-16
Operating weight	3030kg
Overall dimensions	4500X1620X2550(mm)

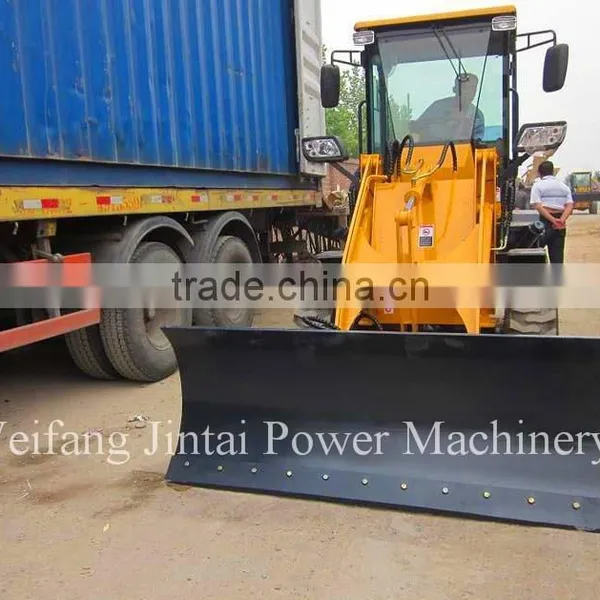

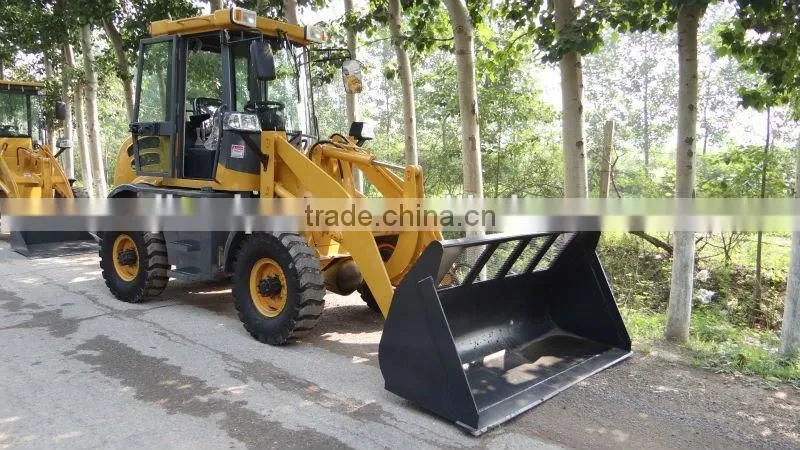

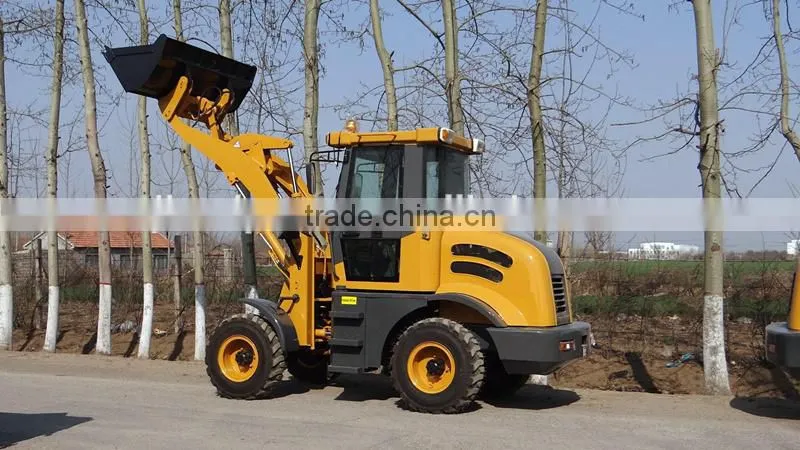

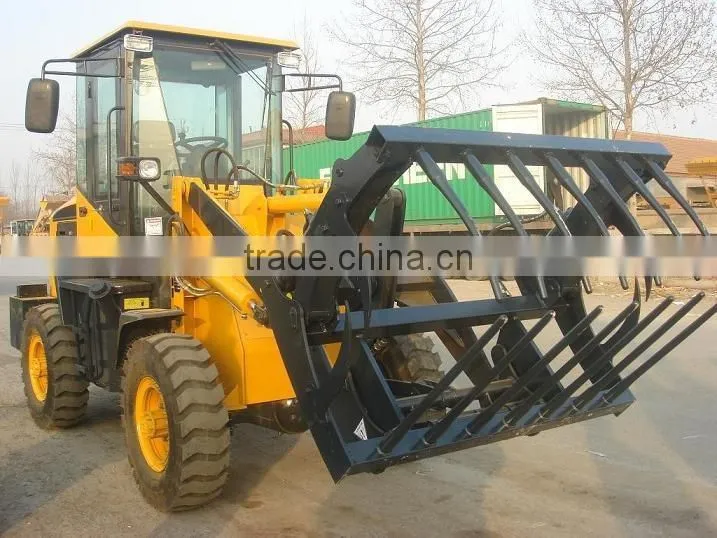

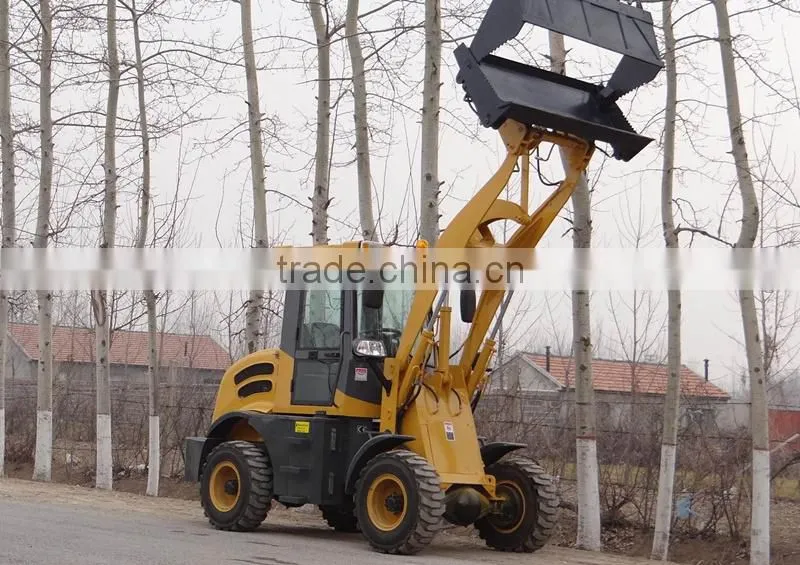

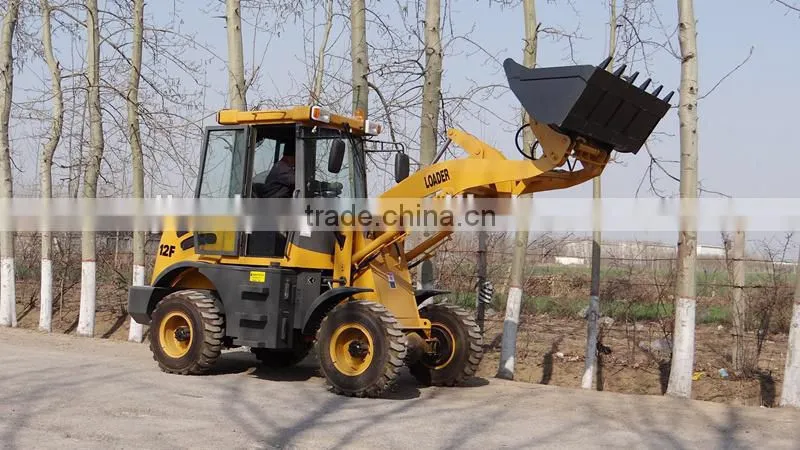

Photos

Company Information

Advantage & Application

1.Chinese C-ummin-s intercooled& turbocharged diesel engine;

2. Integral torque converter and gearbox(Germany ZF technology);

3. Driving axle with built-in free-wheel anti-slip differential;

4. Heavy-duty roller chains transmission balance box;

5.Popular swing-arm connecting rod operating mechanism;

6. Free-maintenance rolling-disc rotary device;

7. Double cylinders control the balde cutting angle;

8.Two sets of imported control valve (HUSCO Brand);

9. Imported hydraulic balancing valve for the blade lifting;

10. Steering system:center articulated mechanism and tilting front wheels to achieve crab-style movement;

11. Electro-hydraulic control: instrumentation monitoring & maintenance-free OPTIMA battery;

Our Services

1.Reply your inquiry in 24 working hours.

2.Company is the professional manufacturer, who carries an extensive range of new heavy duty equipments and agricultural machinery, such as wheel loaders, site dumpers, wheel excavators, tractors, and other farm implements, with years of experience, strong R&D and engineering capabilities.
