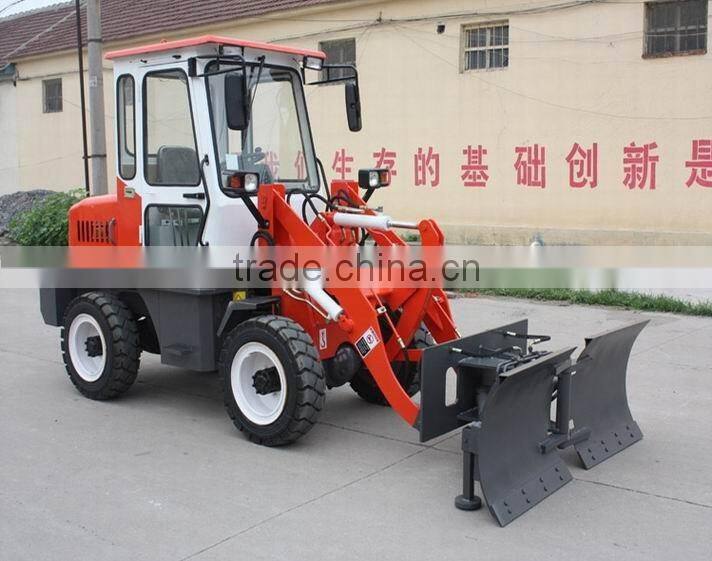

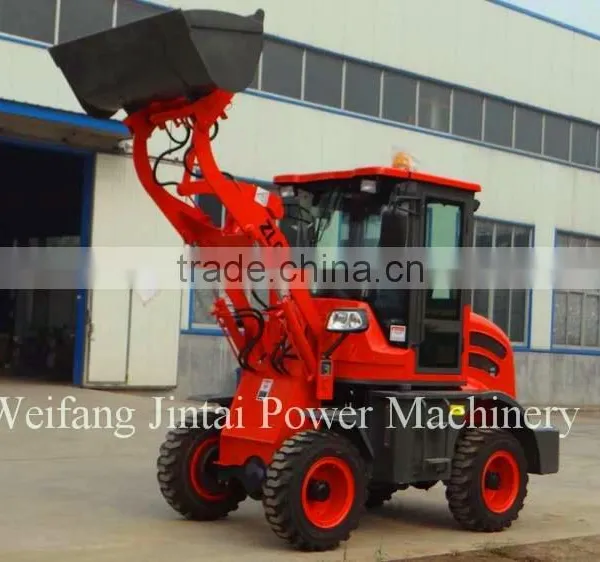

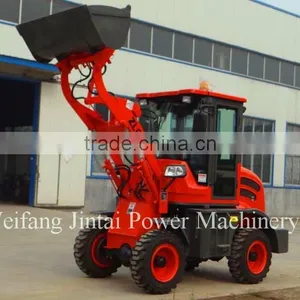

Help CenterLatest Export Model ZL08/ZL08F/ZL08B 0.8 Ton Mini Wheel Loader
Related Products
-
China Hot Sale 3.0 Ton Used Wheel Loader 1.7CBM 92KW With Deutz EngineUS$ 1 - 2MOQ: 1 Set -
China Latest Export Model ZL12Fmini Weel LoaderUS$ 1 - 2MOQ: 1 Set
-
Latest Export Model ZL08F, 0.8 Ton Mini Wheel LoaderUS$ 1 - 2MOQ: 1 Set
-
ZL12F Mini Wheel Loader, China Used or New Mini Wheel LoaderUS$ 1 - 2MOQ: 1 Set
-
Mini New Wheel Loader ZL16F With Snow Bucket, or Snow BladeUS$ 1 - 2MOQ: 1 Unit
Model |
Mini Wheel Loader ZL08F |
Rated Loading Weight |
800kg |
Rated Bucket Capacity |
0.4m3 |
Bucket type |
Heavy-duty bolt on teeth |
Max. Breakout Force |
28KN |
Operating Weight |
2350kg |
Engine |
|
Engine Model |
ChangChai L24 |
Engine type |
In-line arrangement, water cooled, one cycle |
Rated Power |
17KW(23.12H.P.) |
Rated Speed |
2200 r/min(rpm) |
Fuel Consumption |
269g/kw.h |
Steering System |
|
Cycloid full hydraulic steering system |
BZZ-80 |
System Pressure |
10MPa |
Operating Specifications |
|
Drive Type |
Four-wheel drive |
Min Turning Radius |
4600mm |
Driving System |
mechanical |
Dumping Height |
2300mm |
Dumping Reach at max height |
750mm |
Min Base to the ground |
240mm |
Time of raise |
4sec. |
Hydraulic cycle time |
9sec. |
Brake System |
|
Service Brake |
Four Wheel Hydraulic spread-shoed brake |
Parking Brake |
Hand operated |
Tire |
(1) Model 8.25-16 (2) Width: 20cm (3)Diameter: 80cm |
Overall Dimensions( L x W x H) |
4700x1600x2350mm |
Wheelbase |
2170mm |
Track |
1285mm |
1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty single drum vibratory road roller in China.
7.Warranty period is 1-year or 1500 working hours against Bill of Lading.
Company and Products Information Related
Why choose us?
1) CE,BV,SGS,ROPS and FOPS verified.
2) We are a wheel loader manufacturer with 10-year experience.
3) Customers-focused,anytime,any question we will reply you ASAP.
4) All wheel loaders have best premium quality and reasonable price.
5) Providing a one year warranty for after-sales service.
6) Easy-demaged components are not included in warranty.
7) Delivery term:within 15 days after down payment. An 8)integrated customer follow-up system had been built that helping us to provide premium after-sales service,saving your precious time.
