Green House Trator Bigger Power 50hp, Many Kinds of Implements Can be Fitted

Green House Trator Bigger Power 50hp, Many Kinds of Implements Can be Fitted thumbnail-1
Green House Trator Bigger Power 50hp, Many Kinds of Implements Can be Fitted thumbnail-2
Green House Trator Bigger Power 50hp, Many Kinds of Implements Can be Fitted photo-1
Green House Trator Bigger Power 50hp, Many Kinds of Implements Can be Fitted photo-2
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Weifang Jintai Power Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO OR SHANGHAI CHIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Certificate CE
Brand Name JINTAI
Model Number TY504
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas



Product Description



Tractor
Brief
   TY 4WD Gardening Tractor, in another name of 4WD Greenhouse King Tractor, is suitable for gardening, greenhouse, lawn and family work. It is assembled with creeping shift, double stage clutch, dual-way hydraulic output and hydraulic steering, which is popular in international market. With the characteristic of compact structure, mini size, reasonable power, various function, easy operation, reliable performance and enviroment protection, it is a right tractor for famiy and small farm for agriculture and gardening.
    It assembled wit3T30diesel engine, 22.06 kw with or without EPA certificate. Many options are available according to users requirments: single stage clutch or double stage cultch, (3+1)×2 gearbox or  (4+1)×2 gearbox, creeping shift (with 8 shifts gearbox), single speed PTO or double speed
PTO, dual-way hydraulic output, ROPS and sunshine shield.
 Main Technical Specification
Model TY304B-1
Type 4×4 Wheeled type
 Length 2589
 Width 1230
 Height 1228
Dimensions  Front wheel 1000
of Tractor(mm) Tread  Rear wheel 960
 Wheel base 1670
Min. Ground Clearance 215
2.9
One-side braking
Min. Radius of Turning Circle(m) 3.3
No brsking
 Dry Mass(kg) 1100
Engine Model LD3T30
Type 3-cylinder, Vertical, Water Cooled and 4-Stroke
Bore×Stroke(mm) 85×90
Displacement(L) 1.532
Rated Power(KW) 22.06
Rated Rev.(r/min) 2400
Max. Torque(nm)/Rev.(r/min) 89/1650
Min. Consumption(g/kw*h) 238
Dimensions (mm) 567× 494× 610
Dry Mass(kg) 180
Fuel Diesel
Clutch Single Disc, Dry-friction, Single Stage/Double
Stage Clutch
Transmission (3+1)×2 or (4+1)×2or(4+1)×2×2Mechanical Type
Steering Mechanical Type or Hydraulic Type
Hydraulic Output Single -way output or single/dual-way quick couplingoutput
Suspension Post Positioned Tri-point Suspension, Catalogue O
Type
PTO Type and Rev.(r/min) Single speed Non-independent type540 or double speed Non-independent Type 540/1000,540/720 or Semi-independent double speed type 540/1000,540/720
Spline Size (mm) Post positioned I35 Rectangle Spline with 6 teeth (6×28.91×34.79×8.69)
Forward 1.77-26.98
Theoretical Speed (km/h) Reverse 0.33-5.02
Tyre Front Wheel 5.00-12
Rear Wheel 9.50-16
Structure and specification are subject to change without notice.



Company Information



We are a factory of producing site dumpers, wheel loaders, tractors and other farm machines, all products especially for global export market with advanced design,

good quality parts and reasonable price;



Pls contact Mr david 86-15318957289

and you are welcomed to vist our factory any time.

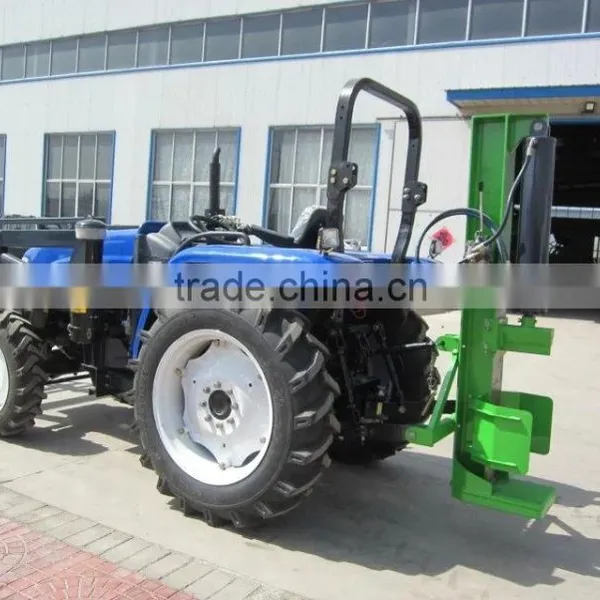

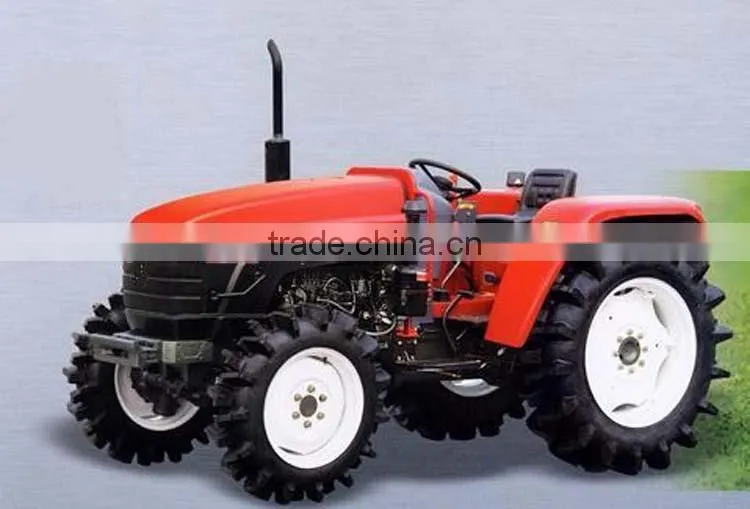

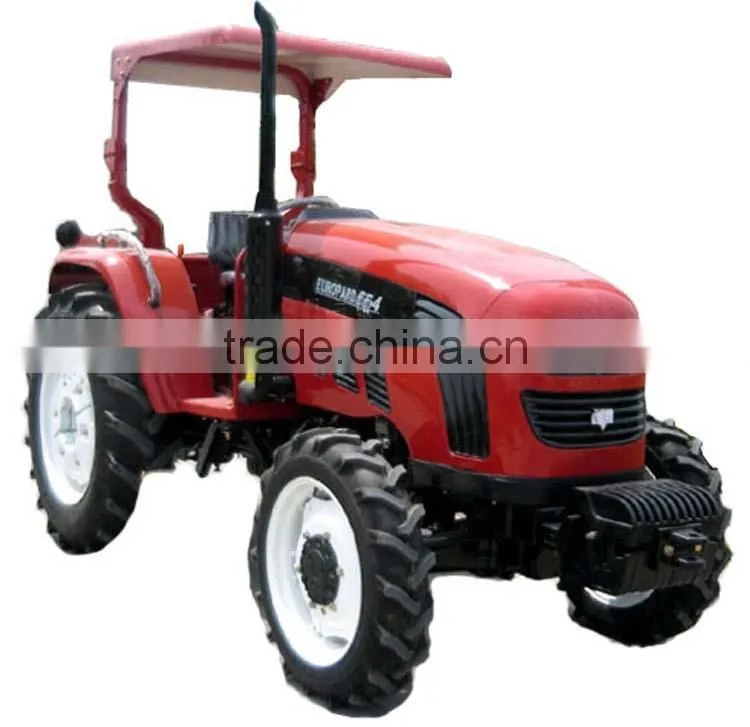

Photos

 Green house trator bigger power 50hp, many kinds of implements can be fittedGreen house trator bigger power 50hp, many kinds of implements can be fitted







Why choose us?

1. More than 500 workers.

2. With the occupying area of 2500 square meters.

3. More than 10 years experiences in the industry of construction machine and agricutural machine.

4. Competitive price and high quality.

5. One hour reaches Qingdao port.

6. All the inquiries will be replied within 12 hours
