48HP 4X4 or 4x2 Cheap Tractor Wheel Tractor for Sale, China Famous Brand

48HP 4X4 or 4x2 Cheap Tractor Wheel Tractor for Sale, China Famous Brand thumbnail-1
48HP 4X4 or 4x2 Cheap Tractor Wheel Tractor for Sale, China Famous Brand thumbnail-2
48HP 4X4 or 4x2 Cheap Tractor Wheel Tractor for Sale, China Famous Brand photo-1
48HP 4X4 or 4x2 Cheap Tractor Wheel Tractor for Sale, China Famous Brand photo-2
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Weifang Jintai Power Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO OR SHANGHAI CHIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Certificate CE
Brand Name JINTAI
Model Number TY484/480
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas



Product Description



Model TY404 TY454 TY484 TY504 TY524 TY554
Type 4WD    Wheeled Type
(mm)Dimensions of Tractor Length (to front ballast) 3835 3872 3847
Width 1620 1750 1750
Height (to the exhaust vent) 2220 2135 2130 2130
Tread Front Wheel 1280 1250
Rear Wheel 1300 Fixed or 1200~1500 Adjusted
Axle Base 2030 2010 2073
Min.Ground Clearance 325
Structure weight (kg)  1665 1734 1790
Ballast weight
(kg)		 Front ballast 140 168
Rear ballast 200 300
Rated traction force (kg) 1100 1130 1140 1150 1160 1180
Engine Model 3105/490 495 495/498 498/4100 4100 4105
Type Vertical,4-Cylinder,Water Cooled and 4-stroke
Rated Power(kw) 29.4 33 35.2 36.7 38.2 40.4
Rated speed (r/min) 2400
Fuel Diesel
Tyre Front Wheel 8.3-20
Rear Wheel 12.4-28
Clutch Dual-stage clutch
Steering power steering
Transmission Type 8+4  or  8+8 with shuttle gearshift or (8+4)×2 with creeper shift
Suspension Type 3-point links
PTO Type and Rev Semi-independent Type 540/1000
Spline Size F35 Rectangle Spline with 6 teeth



Features and advantages:



Adopt chinese famous  diesel engines.better reliability,more back coefficient for torsion.



clutch with independent operation double actions.



Gearbox shows 4X(2+1),namely 8 forwards,4 returns,if choosing climbing shift,then 16 forwards,8 returns,shift in mesh;



Driving force output device with postposition,peaceful and stable transmission,stronger bear the weight of loading.



 Adopt front-wheel turning with full liquid-pressure and independent oil way,turn agilely,reliably,power-saving;



Adopt static hydraulic tray-style arrester,stronger brake moment,reliable brake;



Adopt strong pressure lifter,independent oil supply,system performance reliable;multi-liquid output optional



The final driving is planet-gear style,smaller volume,bigger decelerating ratio;



Installed adjustable chair with elasticity and shock absorption,comfortable driving.



The whole tractor is beautiful,taste,modern,fashion



Company Information



We are a factory of producing site dumpers, wheel loaders, tractors and other farm machines, all products especially for global export market with advanced design,

good quality parts and reasonable price;



Pls contact Mr david 86-15318957289

and you are welcomed to vist our factory any time.





Photos

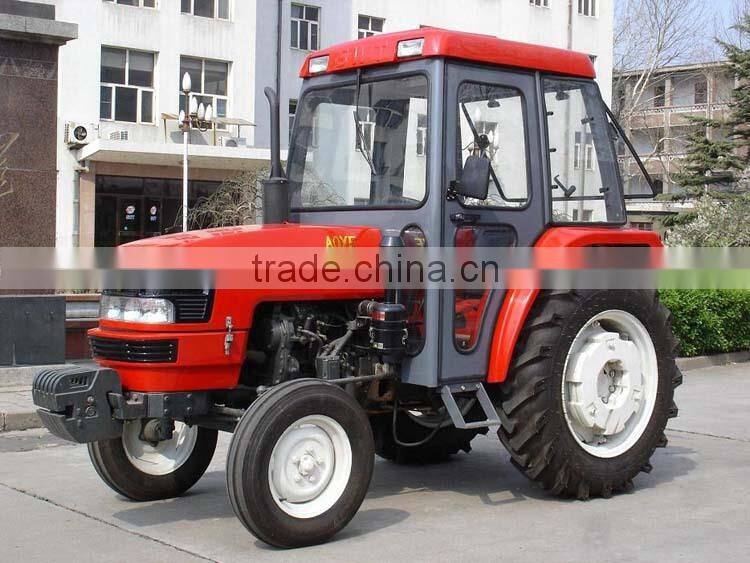

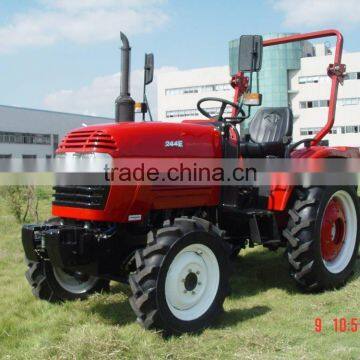

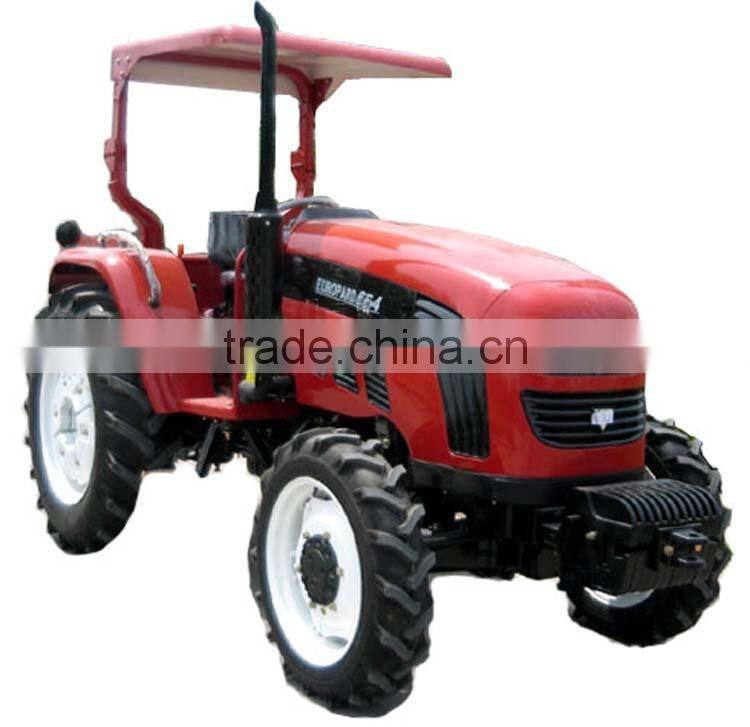

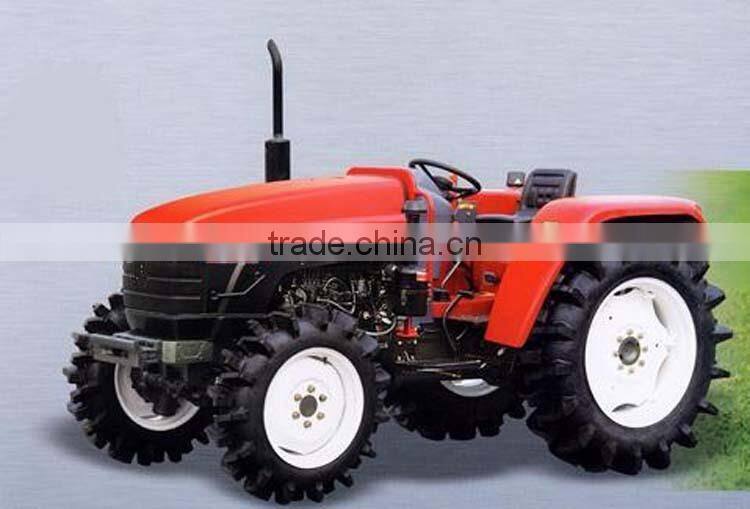

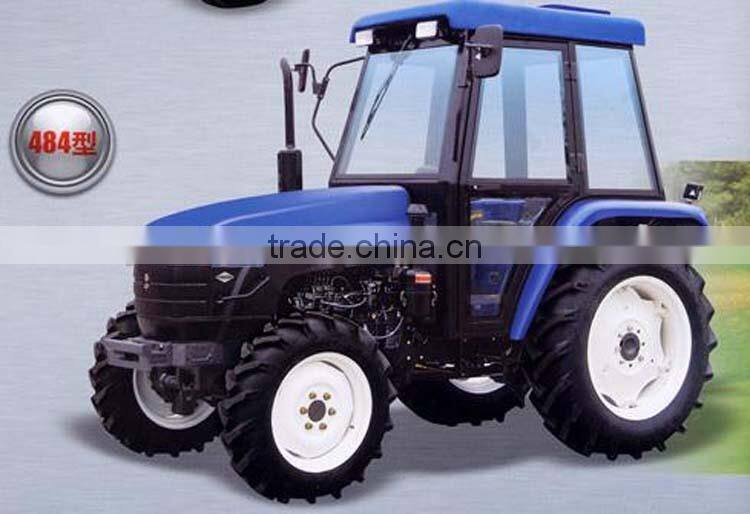

 48HP 4X4 or 4x2 cheap tractor wheel tractor for sale, china famous brand48HP 4X4 or 4x2 cheap tractor wheel tractor for sale, china famous brand48HP 4X4 or 4x2 cheap tractor wheel tractor for sale, china famous brand48HP 4X4 or 4x2 cheap tractor wheel tractor for sale, china famous brand
