28HP 4X4WD new design model tractor
- 100 Set / Sets per Month
- QINGDAO OR SHANGHAI CHIAN
- T/T
Product Details
Condition: | New | Type: | Wheel Tractor | By wheel: | 4WD |
Usage: | Farm Tractor | Drive Type: | Gear Drive | Power(W): | 50hp |
Certificate: | CE | Brand Name: | JINTAI | Model Number: | 554/504/ 404 /454 /904/804 |
Place of Origin: | Shandong, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Improvement
1. High technology Engine,with CE and EPA ,less noise pressure and low pollution.
2. Metal cover is updated with electrophoresis in prevention to the maximum of rusting.
3. Operation system has suspension peddle; side cover features automobile operation.
4. Floating cat equipped with new operational system to enable optimized internal tightness; air conditioning or warm air for more comfort.
5. Noise level is lower with the new cab and Euro III standard engine.
6. Floating type cat greatly reduced vibration and make driving more comfortable.
254 | 304 | ||||||
Model | TY254 | TY264 | TY284 | TY304 | TY324 | ||
Type | 4WD Wheeled Type | ||||||
(mm)Dimensions of Tractor | Length (to front ballast) | 3030 | |||||
Width | 1470 | ||||||
Height (to the exhaust vent) | 1900 | ||||||
Tread | Front Wheel | 1215 Fixed or 1150~1215 Adjusted | |||||
Rear Wheel | 1300 Fixed or 1300~1350 Adjusted | ||||||
Axle Base | 1710 | ||||||
Min.Ground Clearance | 347.5 | ||||||
Structure weight (kg) | 1130 | 1150 | |||||
Ballast weight (kg) | Front ballast | 56 | |||||
Rear ballast | 112 | ||||||
Rated traction force (kg) | 551 | 571 | 591 | 663 | 683 | ||
Engine | Model | 385 | 385 | 385 | 390/485 | 390/485 | |
Type | Vertical,3-Cylinder,Water Cooled and 4-stroke | ||||||
Rated Power(kw) | 18.3 | 19.1 | 20.5 | 22 | 23.5 | ||
Rated speed (r/min) | 2400 | ||||||
Fuel | Diesel | ||||||
Tyre | Front Wheel | 6.00-14 | |||||
Rear Wheel | 9.5-24 | ||||||
Clutch | Dual-stage clutch | ||||||
Steering | power steering | ||||||
Transmission Type | 8+2 or 8+8 with shuttle gearshift or 16+4 with creeper shift | ||||||
Suspension Type | 3-point links | ||||||
PTO | Type and Rev | Semi-independent Type 540/1000 | |||||
Spline Size | F35 Rectangle Spline with 6 teeth | ||||||

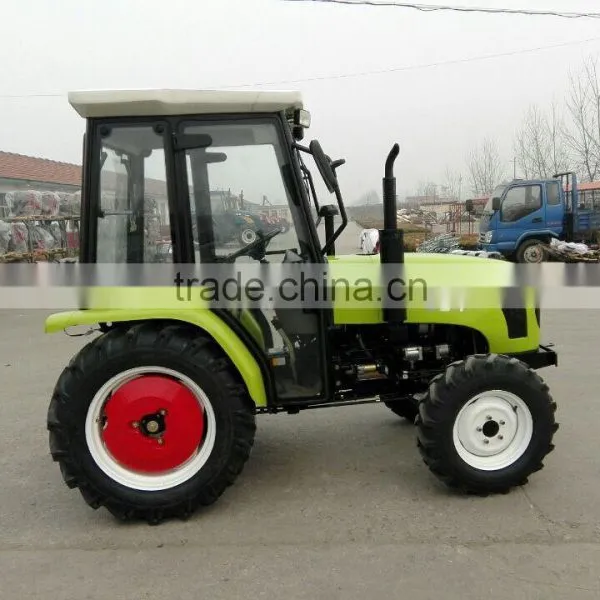

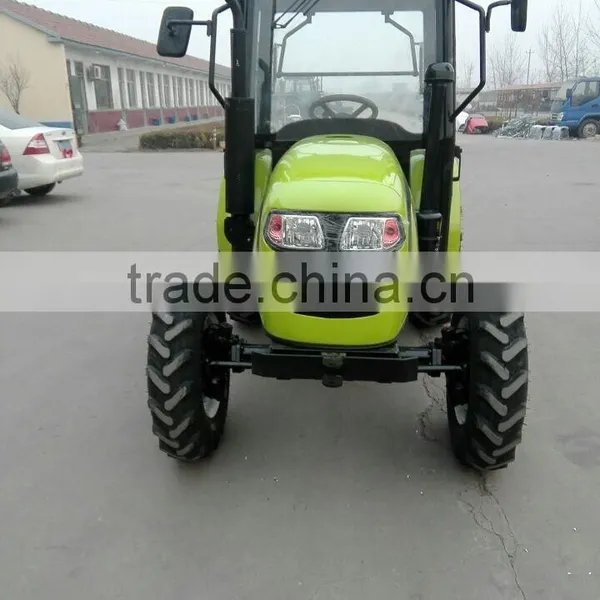

Photos
Why choose us? |
1. More than 500 workers.
2. With the occupying area of 2500 square meters.
3. More than 10 years experiences in the industry of construction machine and agricutural machine.
4. Competitive price and high quality.
5. One hour reaches Qingdao port.
6. All the inquiries will be replied within 12 hours
Contact Us
- Weifang Jintai Power Machinery Co., Ltd.
- Contact nameLinda Wu
- AddressDongfeng East Street Weifang,Shandong
