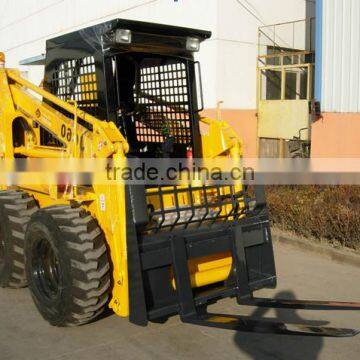

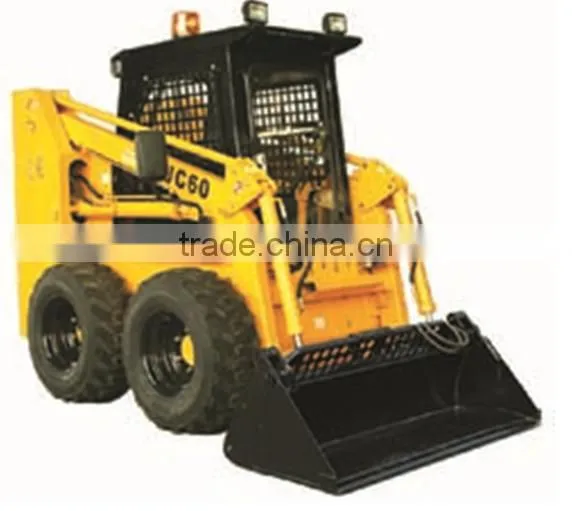

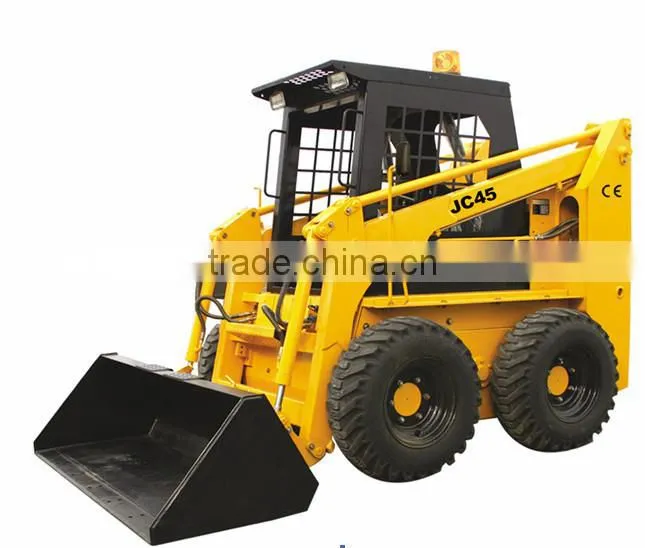

Help CenterChina Supply JC45 Loader Skid Steer Loader With Wheel or Crawler
Related Products
-
China Factory Supply Mini Skid Steer Loader Can be Many Different UsingNegotiableMOQ: 1 Set -
China Factory Supply JC45 700kg Skid Steer Loader With Wheel or CrawlerNegotiableMOQ: 1 Set
-
JC45 700kg Skid Steer Loader With Wheel or CrawlerNegotiableMOQ: 1 Set
-
MINI Skid Steer Loader Can be Many Different UsingNegotiableMOQ: 1 Set
-
Hot Sales Dongqi 90HP Farm Tractor With Bottom PriceUS$ 11,720 - 17,480MOQ: 1 Set
Model |
JC45 |
Rated operating capacity(kg) |
700 |
Tipping load(kg) |
1400 |
Bucket capacity(m3) |
0.36-0.45 |
Operationg weight(kg) |
2600 |
Max. travel speed(km/h) |
12 |
Hydraulic pump flow(L/min) |
62.5 |
Fuel tank capacity(L) |
50 |
Tires |
10.0-16.5 |
Overall dimensions(mm) |
3200×1740×2030 |
Dimensions |
|
Height at maximum extension(mm) |
3670 |
Height to bucket hinge pin(mm) |
2900 |
Width with bucket(mm) |
1740 |
Track width(mm) |
1450 |
Wheelbase(mm) |
991 |
Ground clearance(mm) |
185 |
Dump angle |
40° |
Dumping height(mm) |
2310 |
Maximum reach(mm) |
710 |
Engine |
|
Maker/Model |
YANMAR 4TNV98-ZPLYS 51Kw |
Net power |
51KW/2500RPM |
Type |
4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine |
Standard |
Open-type operator cab |
Hand control system(Mechanical type) | |
Standard bucket | |
Auxiliary hydraulic couplers | |
Optional |
Enclosed operator cab with A/C |
Cab fitted with a heater as standard | |
Hydraulic joystick controls | |
Optional Attachments |
Breaker,Angle blade,Auger,Sweeper,Pallet fork, |
Combinition bucket,Mower,Asphalt cutter,and More |
Attachments
1. 4-in-1 bucket
Model:ZCD601
Bucket capacity:0.45m3
Rated carrying capacity:1000kg
Overall dimensions(mm):1850*1000*660
Weight:340kg

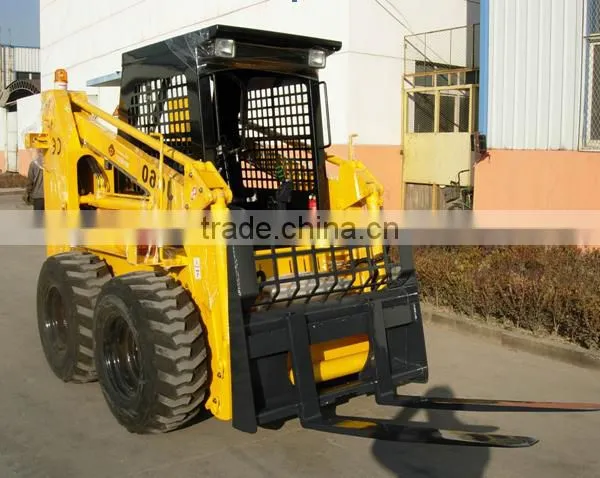

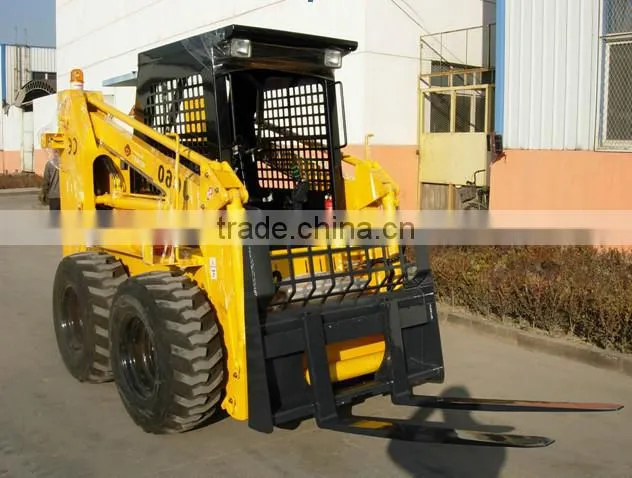

2. Fork
Model:C10-1
Rated carrying capacity:1000kg
Overall dimensions(mm):1700(1800)*1230*570
Weight:250kg

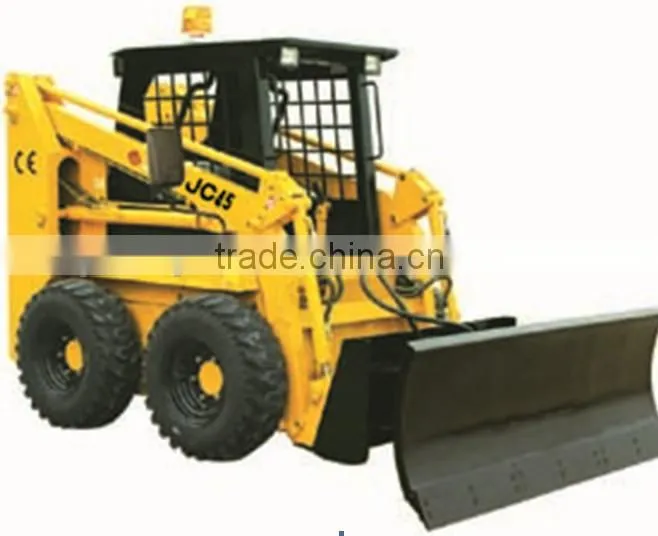

Angle Blade
Model:TB2000
Max. Working width:2m
Blade angle: right and left +/-22°
Overall dimensions(mm):2000*1000*700
Weight:380kg
Excavator
Model:WJ2600
Max. Digging depth:2640mm
Bucket capacity:0.1m3
Swing arc:160°
Overall dimensions(mm):3350*660*1550
Weight:800kg

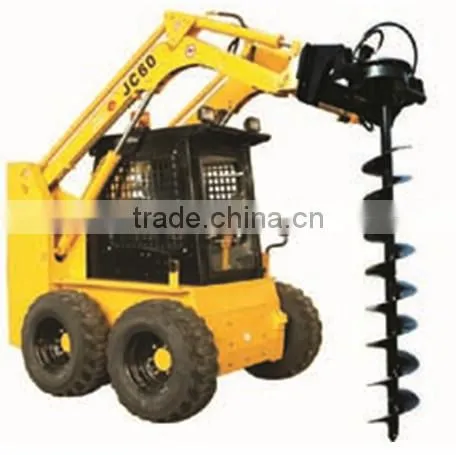

Auger
Model:ZK400(DZK400/500)
Diameter of bit:200mm/300mm/400mm/500mm
Dig depth in common soil condition:1600mm-2000mm
Overall dimensions(mm):1200*680*3350
Weight:220kg
Fork grapple with bucket
Model:DZC10
Max. Grabbing weight:1000kg
Grapple diameter:460mm-850mm
Bucket capacity:0.3m3
Overall dimensions(mm):1620*950*820
Weight:320kg
Sweeper
Model:QS1800/580
Sweeping width:1800mm
Bucket capacity:0.4m3
Overall dimensions(mm):1980*1500*550
Weight:480kg
Trencher
Model:KG1100
Max. Digging depth:1200mm
Trenching width:200mm-300mm
Trenching efficiency:100m/h
Overall dimensions(mm):1340*3400*900
Weight:530kg
Hydraulic Breaker
Model:YC70
Operating weight:70kg/110kg/180kg
Impact rate:300-1200/min
Overall dimensions(mm):1200*1200*550
Weight:240kg/280kg/350kg/400kg
