Specifications
1) 4.2m reach2) articulated structure and axle transmission
3) Quick coupling system, joystick and buttons

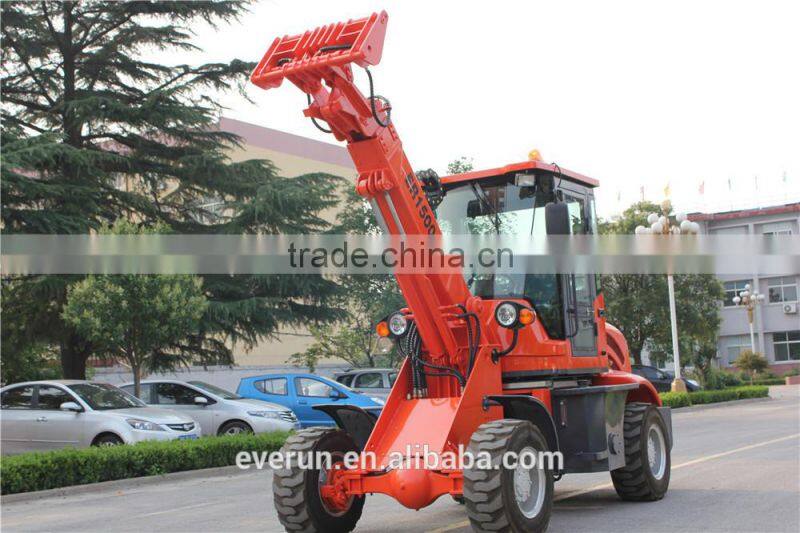

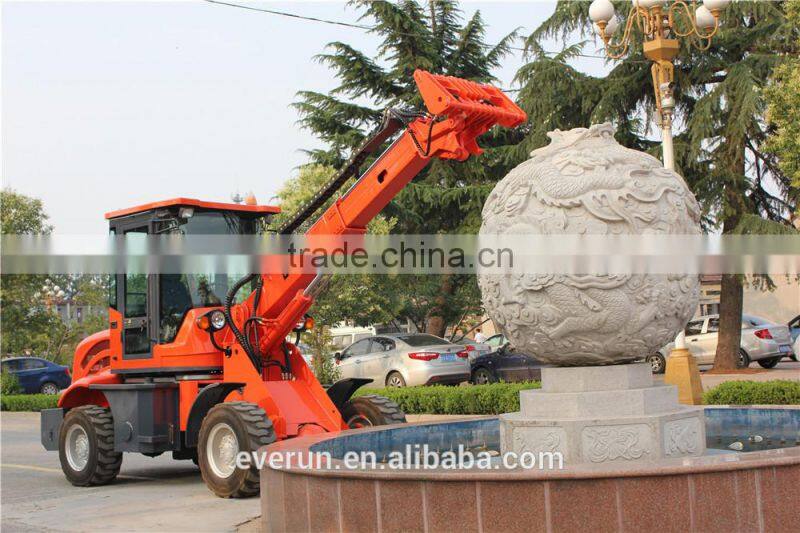

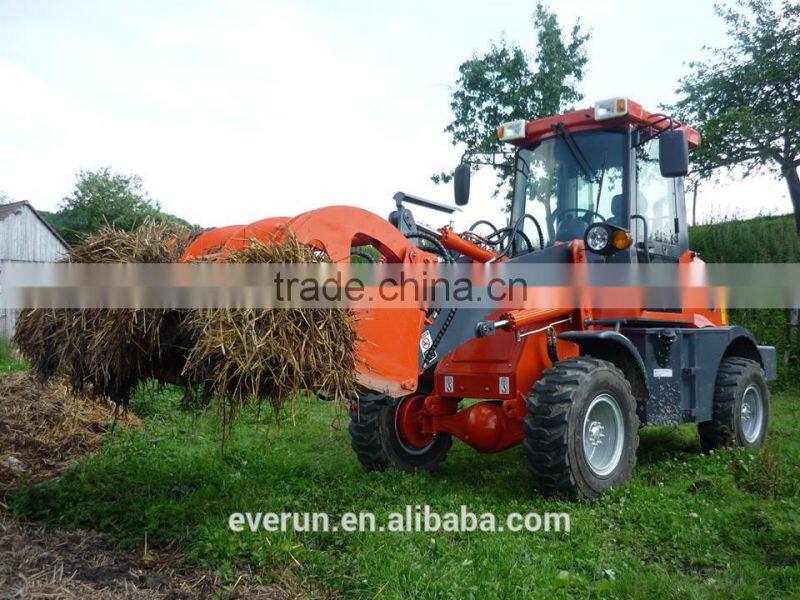

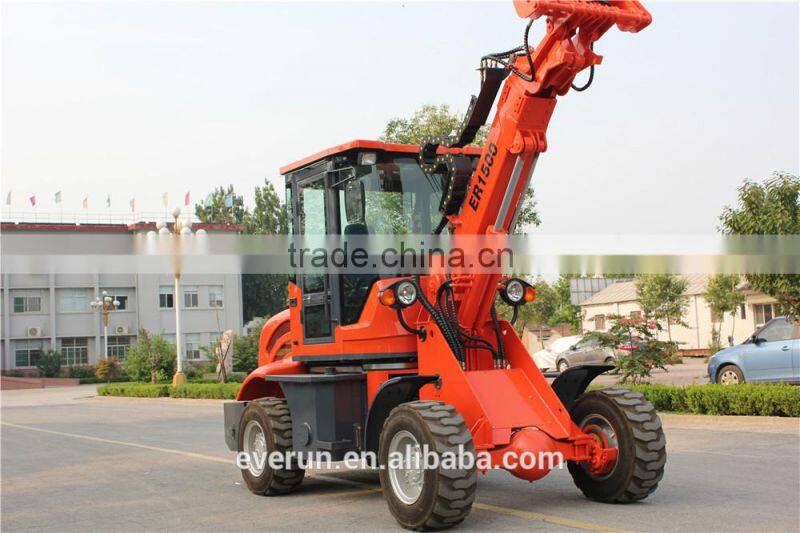

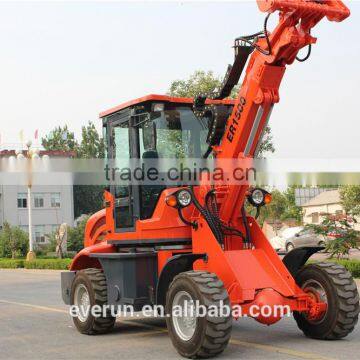

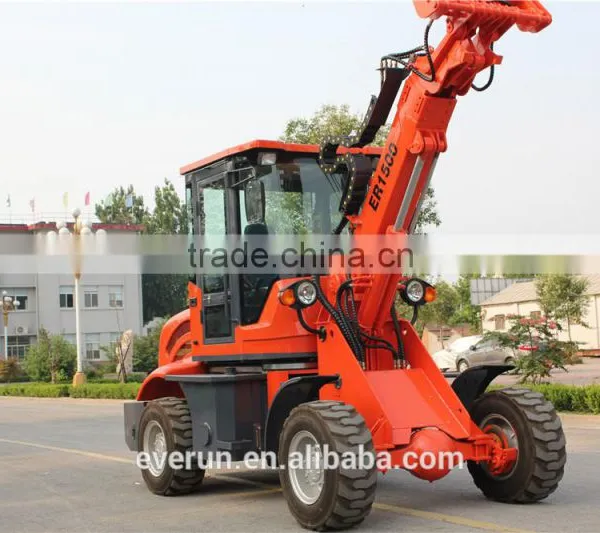

Everun Boom Loader, Telescopic Boom Loader
Specifications
1.0 Engine Details
(1)Model:ChineseEuroiii Xinchai498 Engine
(2)Enginetype:In-linearrangement, water-cooled, four-cycle diesel Engine
(3)RatedPower: 37KW(50.32H.P.)
(4)RatedSpeed:2400r/p.min(rpm)
(5)Fuel Consumption ratio in standard working condition: 230g/kw.h
2.0 Transmission System
Hydraulic converter+ drive shaft + axles
3.0 Bucket
(1)BucketCapacity:0.65 m3
(2)Bucketwidth:1700mm
(3)Buckettype:Heavy-dutybolt on teeth
(5) Rated Load: 1500kg including attachment
4.0 Overall Dimensions
(1)OverallLength:4320mm
(2)OverallHeight:2670mm
(3)OverallWidth: 1720mm
(4)Max. lifting Height:4250mm
5.0 Operating Specifications
(1)SteeringSystem: Articulated Frame with hydraulic power steering
(2)MinTurningRadius:4950mm
(3)DrivingSystem:Hydraulic converter,four wheel drive
(4)Quick coupling system
(5)Joystick
(6)Selflevering
6.0 Brake System
(1)ServiceBrake:FourWheelChuck brake
(2)ParkingBrake:Handoperated
7.0 Tyre
(1) Model:12-16.5, 12ply (2)Width: 307mm(3) Diameter: 831mm
8.0 Wheelbase:2400mm
9.0 Track: 1345mm
10.0 systempressure:20Mpa;Hydraulicoutput:70L/min
The telescopicboom which can reach 4.2m greatly increase it's working scope.
Thearticulatedstructureandaxletransmissiondesignmakes it powerful and has better pass through ability
Theseals,valve & joystick are famous oversea products which guarantee that it's a reliable long lasting machine.
Adjustablespringseatandoptionalairconditionermakes the operating more comfortable.
Quick coupling system, joystick and buttons makes the operating easy and convenient.
Details:
