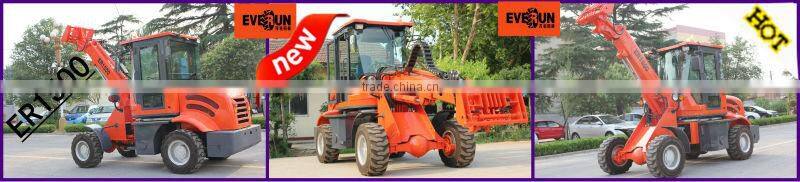

2014 Hot Price Qingdao Everun Brand Farm Machinery ER1500 Mini Telescopic Loader Made In China

Specifications

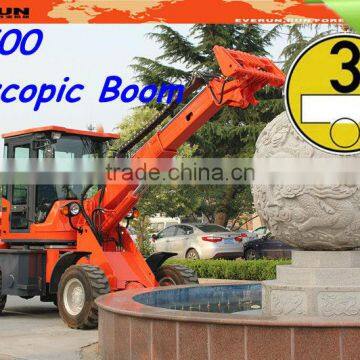

 ER1500 Telescopic Boom loader

Highlights

♥  Boom can reach 4.2m greatly increase it's working scope.

♥ The articulated structure and axle transmission design makes it

    powerful and has better pass through ability.

♥ The seals, valve & joystick are famous oversea products which

    guarantee that it's a reliable long lasting machine.

♥ Adjustable spring seat and optional air conditioner makes the

    operating more comfortable.

♥ Quick coupling system, joystick and buttons makes the operating easy    and convenient.

  Specifications:

1.0 Engine Details

(1) Model: Chinese Euroiii Xinchai498 Engine

(2) Engine type:In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power: 37KW (50.32H.P.)

(4) Rated Speed:2400 r/p.min (rpm)

(5) Fuel Consumption ratio in standard working condition: 230g/kw.h

2.0 Transmission System

Hydraulic converter + drive shaft + axles

3.0 Bucket

(1) Bucket Capacity: 0.65 m3

(2) Bucket width: 1700mm

(3) Bucket type:Heavy-duty bolt on teeth

(5) Rated Load: 1500kg including attachment

4.0 Overall Dimensions

(1) Overall Length: 4320mm

(2) Overall Height:2670mm

(3) Overall Width: 1720mm

(4) Max. lifting Height:4250mm

5.0 Operating Specifications

(1) Steering System: Articulated Frame with hydraulic power steering

(2) Min Turning Radius: 4950mm

(3) Driving System: Hydraulic converter, four wheel drive

(4) Quick coupling system

(5) Joystick

(6) Self levering

6.0 Brake System

(1) Service Brake:Four Wheel Chuck brake

(2) Parking Brake:Hand operated

7.0 Tyre

(1) Model:12-16.5, 12ply

(2)Width: 307mm

(3) Diameter: 831mm

8.0 Wheelbase:       2400mm

9.0 Track:       1345mm

10.0 System pressure:         20Mpa; Hydraulic output:70L/min

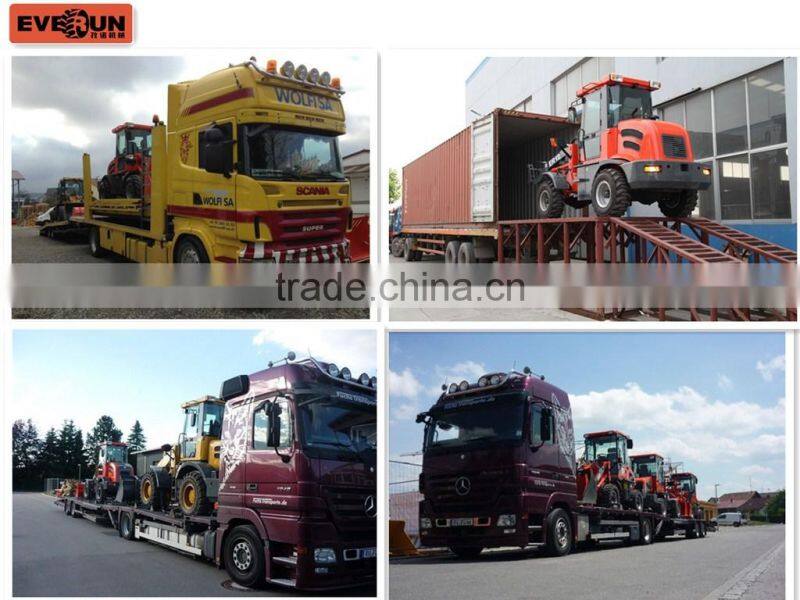

Packaging & Shipping



Place of Delivery	Qingdao Port
Package	2 Units In 1*40 HQ
Delivery Time	20-25 Days After Deposit
Payment Term	TT 30% Deposit
Warranty	1 year
Min. Quantity Order	1 unit





Company Information

 We are specialized in mini loader and other farm machinery as manufacturer and exporter for more than 10 years.We have much more knowing the strength and weakness of all kinds of mini farm machinery.



We have many customers all of the world such as Fenland, Denmark , Poland, Norway, Germany, Sweden, Switzerland ,Portugal, New Zealand, American etc. Righ now ,"EVERUN" can be found working for more than 30 countries.

  We have our second generation wheel loader now  For more details searching

please watching

@" Everun New Generation Wheel Loader"
