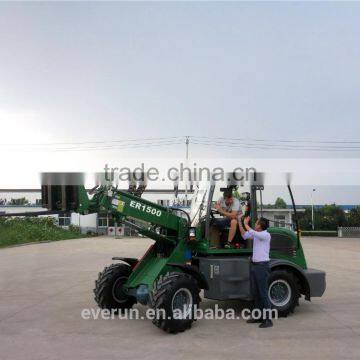

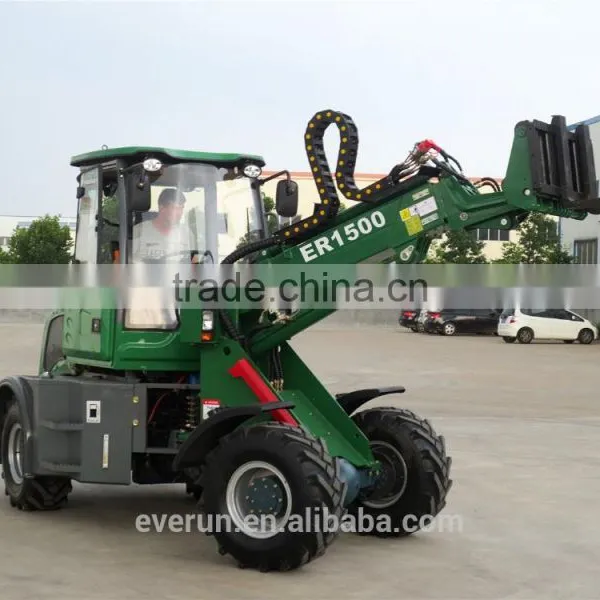

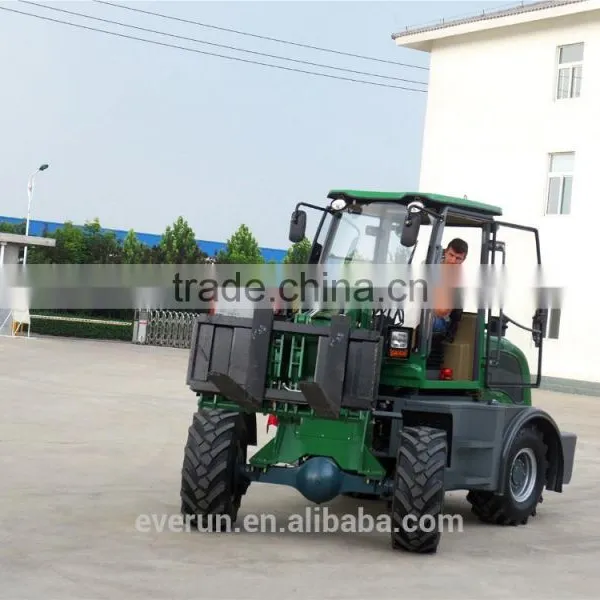

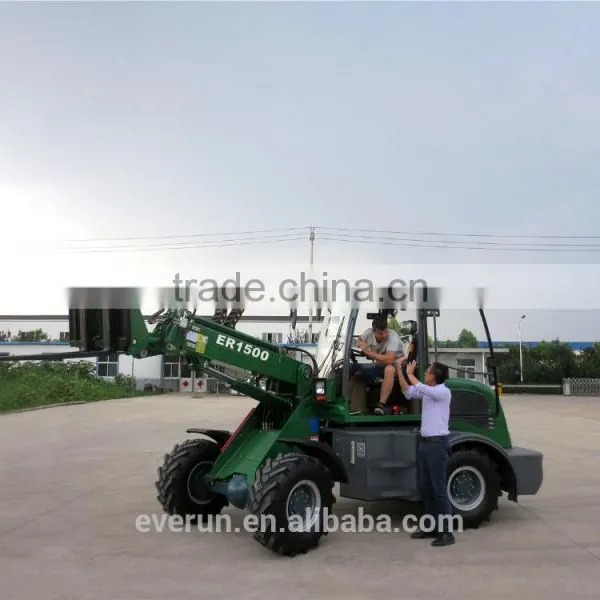

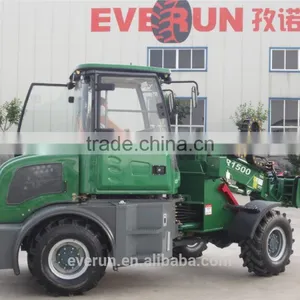

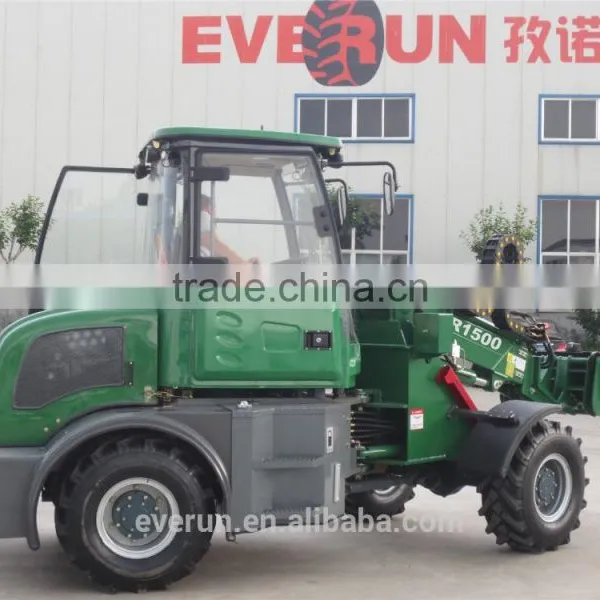

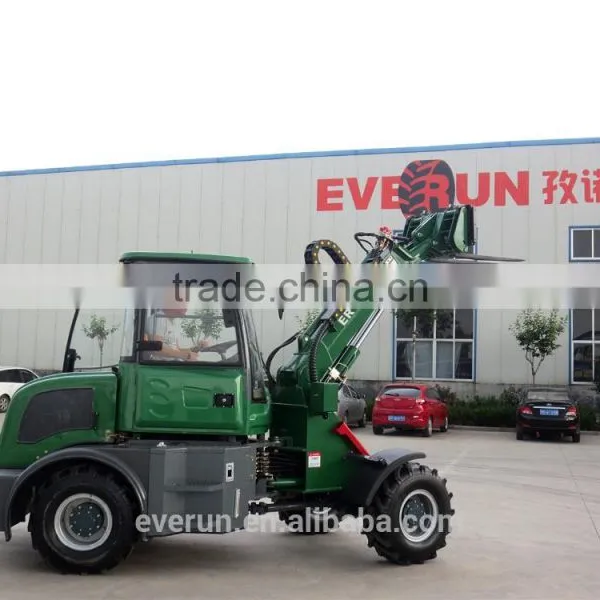

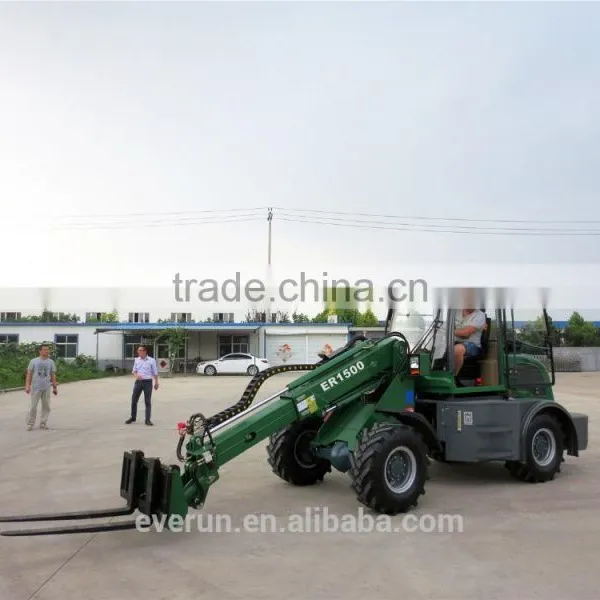

Everun ER1500 Loader with Telescopic boom
Performance and characteristic
1.Optional:Dongfeng Cummins, Weichai, Luotuo, Huafeng engine
2. High quality self-made hydraulic gearbox and driving axle.
3. Choose best hydraulic components, pilot operation, easy and durable.
4. Strong and durable frame, have the automatic flat function in high place.
5. (Quick change )option attachment: wooden fork, pipe, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc

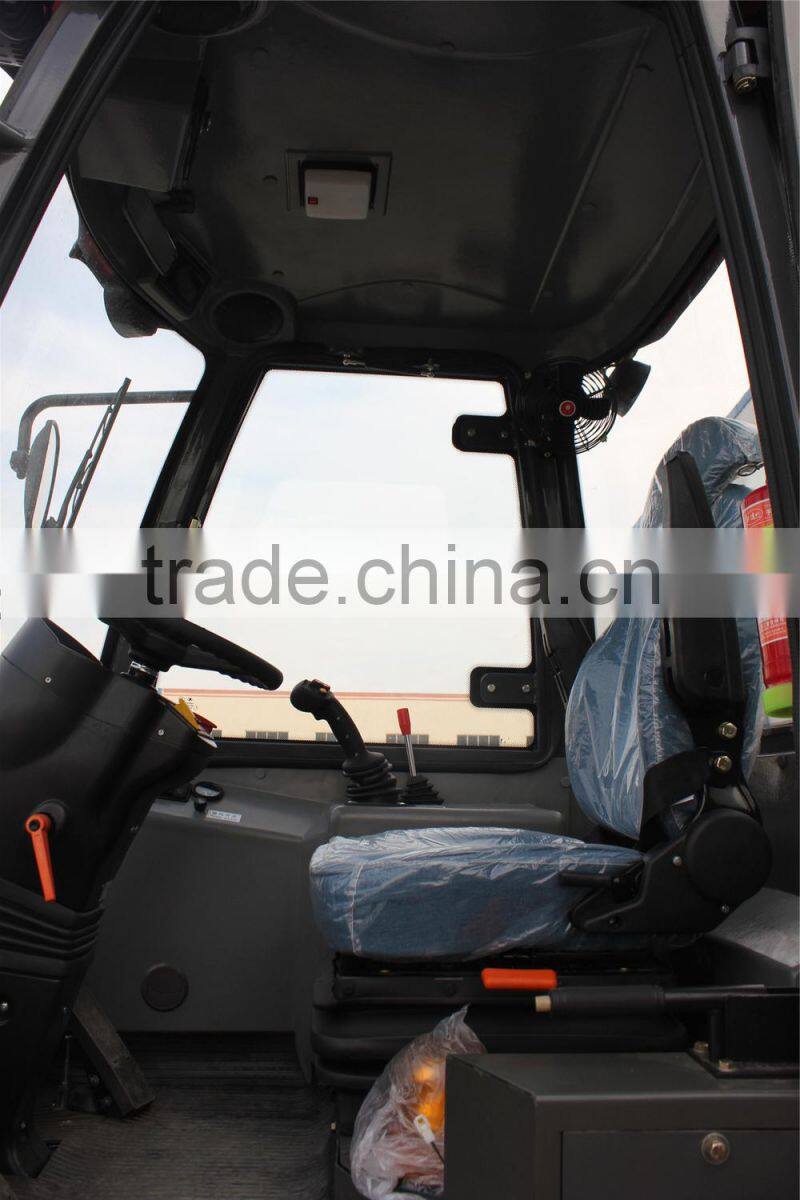

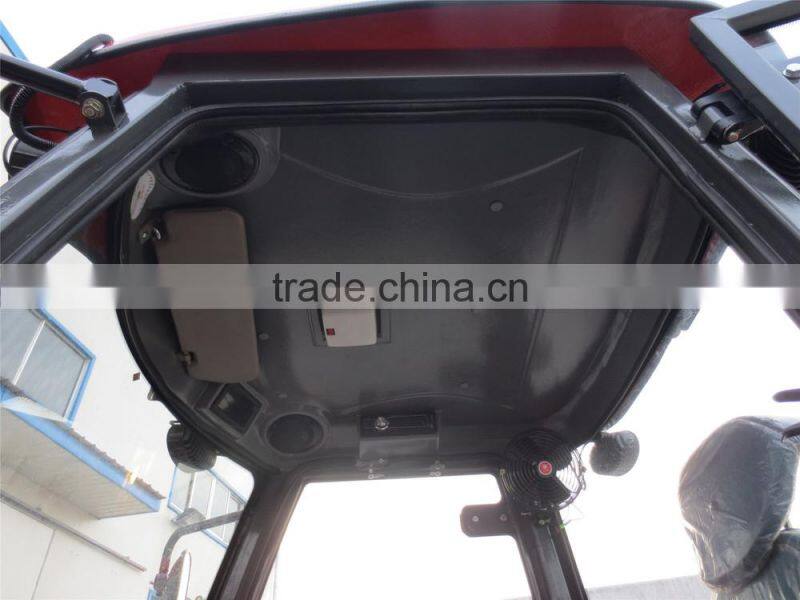

6. Luxurious cab, cab rollover, easy to keep and operate.
7. Changeable luxurious meter, air conditioner, back camera, more comfortable for driving.
8. High reliability and safer air assist disc brake braking system
9. According to clients request, customize higher dumping and longer arm products.
Specification
1.0 Engine Details |
|
(1) Model: | Chinese Euroiii Xinchai498 Engine |
(2) Engine Type: | In-line arrangement,water-cooled,four-cycle diesel engine |
(3) Rated Power: | 37KW (50.32H.P.) |
(4) Rated Speed: | 2400 r/min(rpm) |
(4) Fuel Consumption ration in Standard working condition: | 230g/kw.H |
2.0 Transmission System | Hydraulic converter + drive shaft + axles |
3.0 Bucket |
|
(1) Bucket capacity: | 0.65 m3 |
(2) Bucket Width: | 1700mm |
(3) Bucket type: | Heavy-duty bolt on teeth |
(4) Rated load: | 1500kg including attachment |
4.0 Overall Dimensions |
|
(1) Overall length(bucket on ground) | 4320mm |
(2) Overall Height | 2670mm |
(3) Overall width | 1720mm |
(4)Max. lifting Height | 4250mm |
5.0 Operating Specifications |
|
(1) Steering system: | Articulated frame with hydraulic power steering |
(2) Min.turning radius: | 4950mm |
(3) Driving system: | Hydraulic converter,four wheel drive. |
(4) Other | Quick coupling system ; Joystick; Self levering |
6.0 Brake System |
|
(1) Service Brake | Four wheel hydraulic spread-shoed brake |
(2) Parking Brake | Hand operated |
7.0 Tyre |
|
(1)Model | 12-16.5, 12 PLY |
(2)Width | 307mm |
(3)Diameter | 831mm |
8.0 Wheelbase | 2400mm |
9.0 Track: | 1345mm |
10.0System Pressure | 20Mpa; Hydraulic output:70L/min |

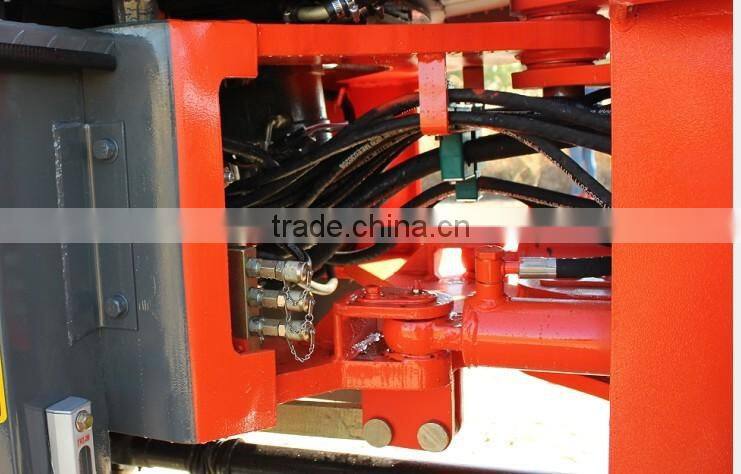

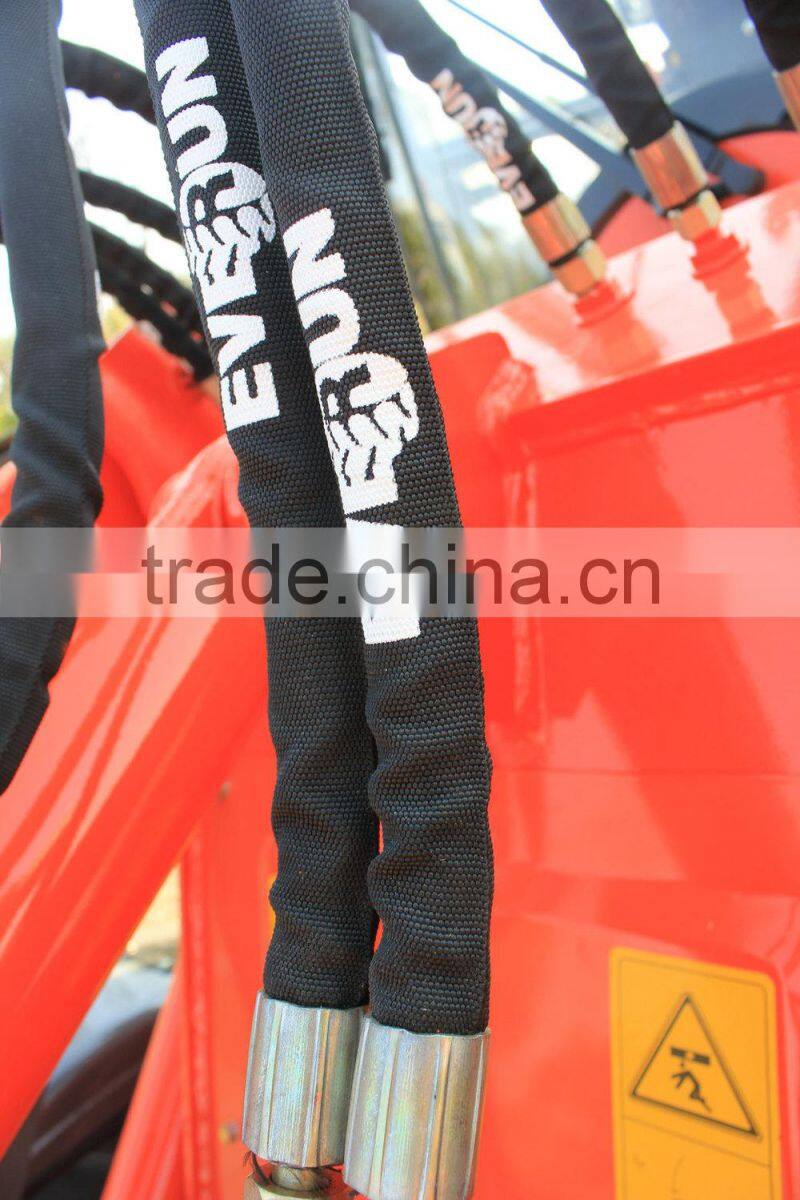

Some main detalied parts pictures of ER1500 telescopic wheel loader

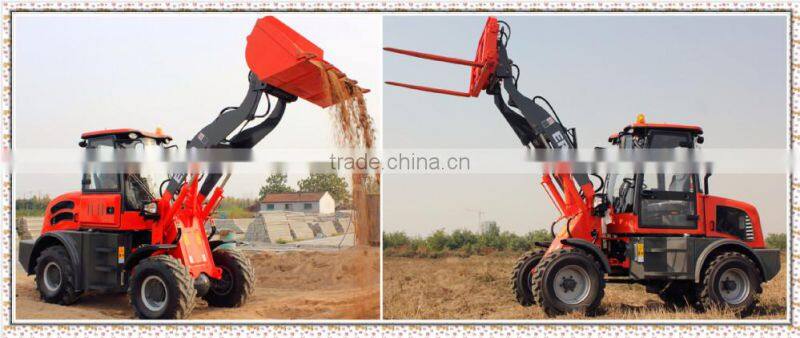

Photos of all attachments:
In order to make a good after-service, we have registered a company in Germany together with our Germany partner called Everun Europe Company. We already put a lot of spare parts in our Germany warehouse, which could guarantee European customer a better after-service. Also we are trying to find reliable partners in other markets.

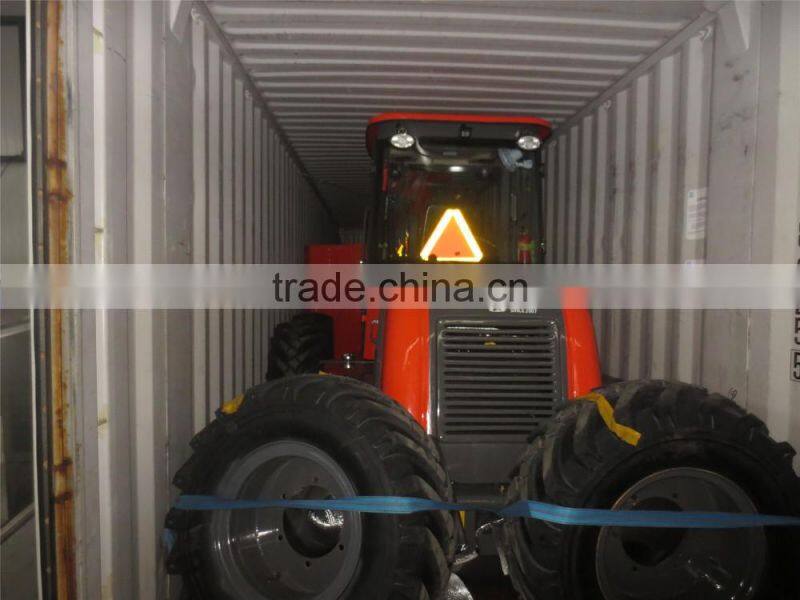

Loading pictures of ER1500 telescopic wheel loaders
·Delivery time:15 days after deposit.
·Payment term: T/T 30% in advance
·Packing: 2 units in 40HQ container.
·Warranty time:one year,supply spare parts from German warehouse
·Minimum order quantity:1 units
Rops&Fops cabin Certificate for ER wheel loaders
EVERUN other hot models ER06,ER08,ER10,ER12,ER15,ER16,ER20,ER1500,ER35
Qingdao Everun Machinery Co.,Ltd is specialized in mini wheel loaders and agricultural machines as a manufacturer and exporter in China, all of our products are CE and TUV approved. We have many customers in European and American countries, Such as:Fenland,Denmark,Poland,Norway,Germany,Sweden,Switzerland,Portugal,America etc,now you can find our machines works in almost 30 countries.
EVERUN wheel Loaders on Bauma China Exhibition
The information above just for you referrence ,if you want to know more about our products and have questions about them ,please contact me 24h freely ,I am delighted to serve you . Moreover , welcome to visit our website and our factory in china.
