EVERUN Brand construction machine 3ton ZL930 wheel loader
EVERUN Brand CE approved articulated multi-function China mini wheel loader hot sale
1. Specifications of ER35 series Small Wheel Loader:
1.0 Engine Details |
(1) Model: DEUTZ WP6G125E23 |
(2) Engine type: In-line arrangement, dry cylinder, direct injection |
(3) Rated Power: 92KW |
(4) Rated Speed: 2300 r/min (rpm) |
(5) Fuel Consumption ratio in standard working condition: ≤227g/kw.h |
2.0 Transmission System |
(1) Type: Single state,3 elements |
(2)Torque ration:3.25 |
(3)Transmission Type: Shaft power shift |
(4)Number of gear: 4 forward shift,2 reverse shift |
(5) Max speed:40km/h |
3.0 Bucket |
(1) Bucket Capacity: 1.8 m3 |
(3) Bucket type: Heavy-duty bolt on teeth |
(4) Max. Breakout Force: ≥96KN |
(5) Max Traction Force:≥96KN |
(5) Rated Load: 3000kg |
(6) Operating Weight: 10200kg |
4.0 Overall Dimensions |
(1) Overall Length (Bucket on ground position): 6970mm |
(2) Overall Height:3087mm |
(3) Overall Width:2510mm |
5.0 Operating Specifications |
(1) Steering System: Articulated Frame with hydraulic power steering |
(2) Min Turning Radius: 5100mm |
(3) Driving System: Hydraulic converter |
(4) Max.Climbing Ability:30℃ |
(5)Max Dumping Reach:2950mm |
(6)Dumping Distance:1050mm |
6.0 Brake System |
(1) Service Brake: Four Wheel Hydraulic spread-shoed brake |
(2) Parking Brake: Hand operated |
7.0 Tyre |
(1) Model: 17.5-25 Tyre |
(2)Front Tyre Pressure:0.333-0.353MPa |
(3)Rear Tyre Pressure:0.275-0.294MPa |
8.0 Front and Rear Axles |
(1)Main Transmission Type: Spiral Gear,First Stage Decelerate |
(2)Final Transmission Type: First Stage,planetary Gear Decelerate |
9.0 Fill Capacity: |
(1)Fuel:140L |
(2)Hydraulic Oil:130L |

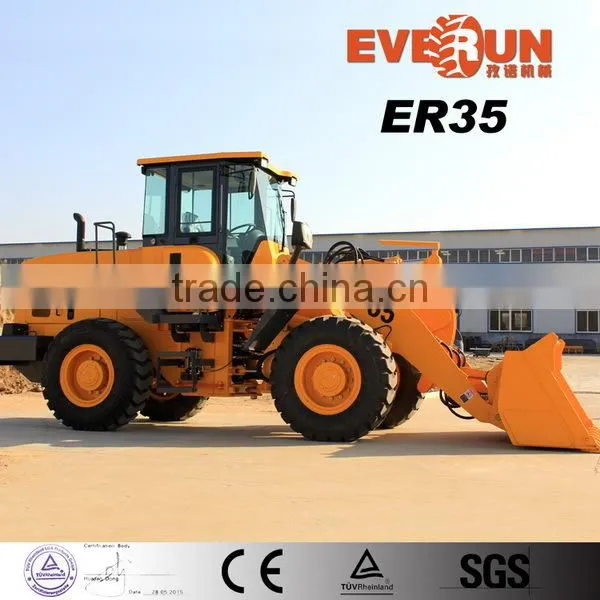

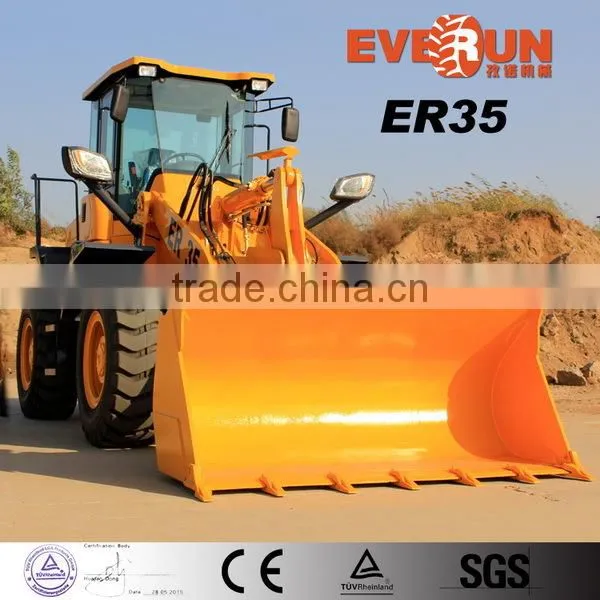

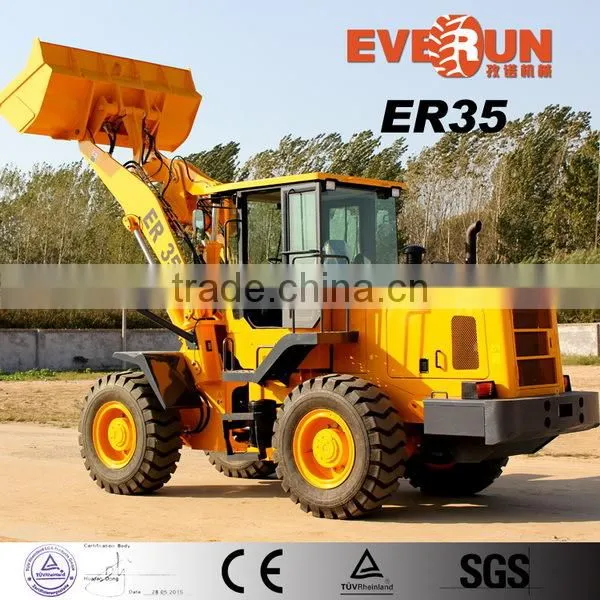

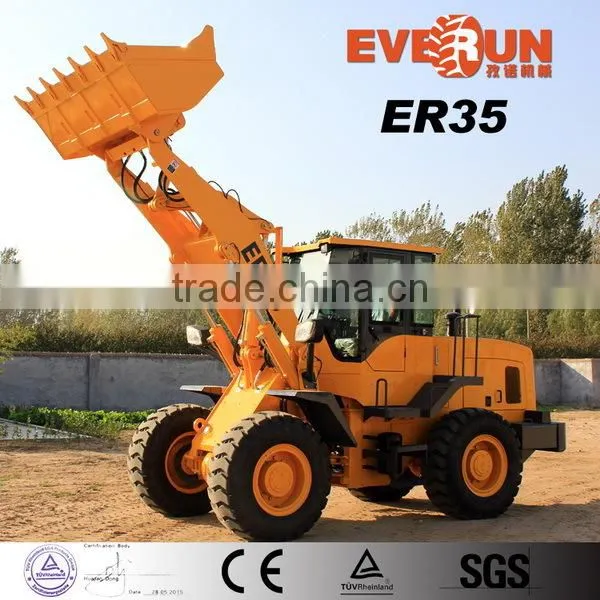

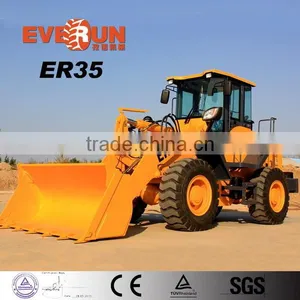

2. From detail Pictures of Wheel Loader, You can see EVERUN only produce high-quality products.
3. Pictures of EVERUN factory, so you can have a better understanding of our products capacity.
4. EVERUN has a professional sales and after-service team, We are trying our best to make a good service for every customer.
5. EVERUN shows products in many exhibitions all of world, so EVERUN dealer will have a better understanding of EVERUN products.
6. In order to improve the service for European Customers, EVERUN start to Register Everun Europe Company. Choose EVERUN, then better after-service will be guranteed.
7. In every Machine oversea-service , EVERUN will offer some Easy-damaged spare parts for Free, so EVERUN dealer will have good service for his customers.
8. EVERUN always offer customers timely delivery and perfect transport service.
9. EVERUN wheel Loader is multi-functions, she can do different job for you.
10. Now EVERUN can be found working in more than 30 countries, a good reputation is deserved.
11.Should you have any questions please let us know ,it will be our great honor to be on service of you
Welon Wong(Sales Manager)
