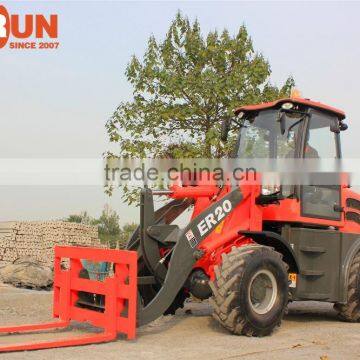

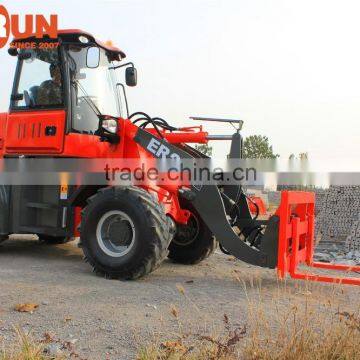

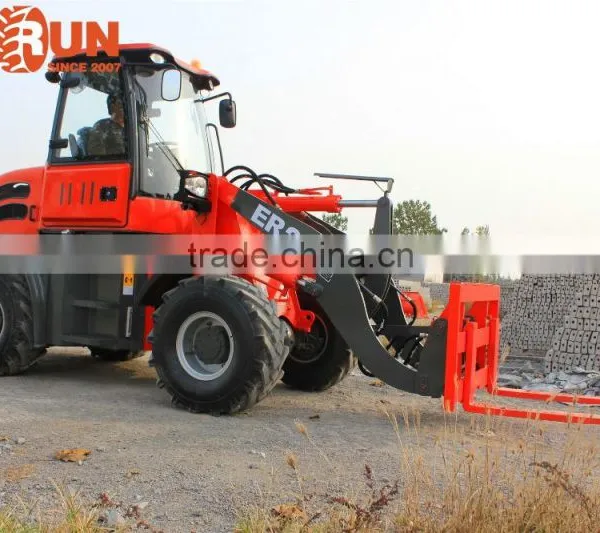

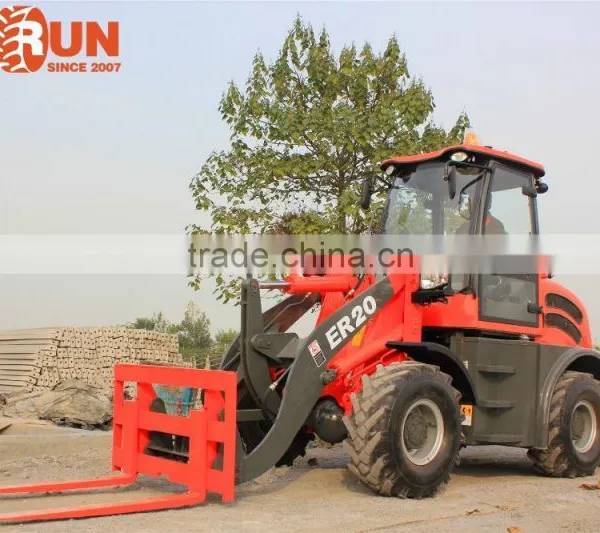

Help CenterQingdao Everun ER20 Front Loader Type Compact Wheel Loader With Wooden Forks
Related Products
-
New-design ER20 Wheel Loader With CE Enigne/Bucket for SaleUS$ 13,000 - 13,500MOQ: 1 Set -
EVERUN Brand 2 Ton Small Front End Type Wheel Loader With Wooden ForksUS$ 13,000 - 13,500MOQ: 1 Unit
-
Everun Machinery ER20 Front End Compact Wheel Loader With Adjustable Steering WheelUS$ 13,000 - 13,500MOQ: 1 Unit
-
Radlader ER20 Front Loader With Standard Bucket/CE Engine for EuropeUS$ 13,000 - 13,500MOQ: 1 Set
-
EVERUN New Designed 2.0ton Front Loader ER20 With CE Engine/Quick Hitch for SaleUS$ 13,000 - 13,500MOQ: 1 Set

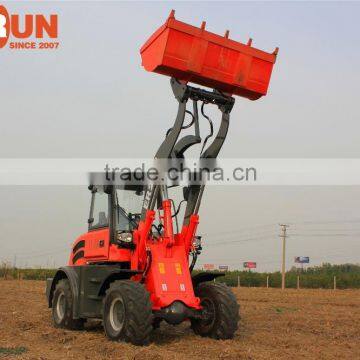

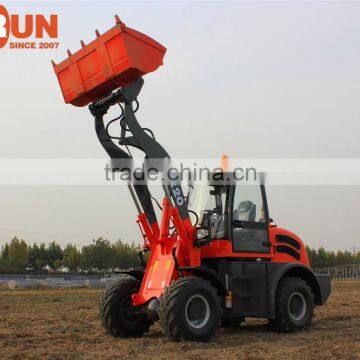

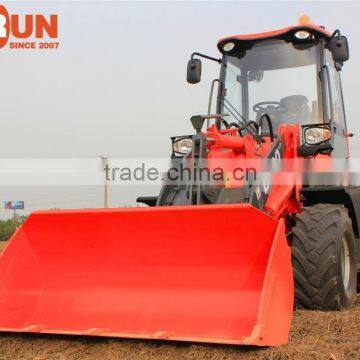

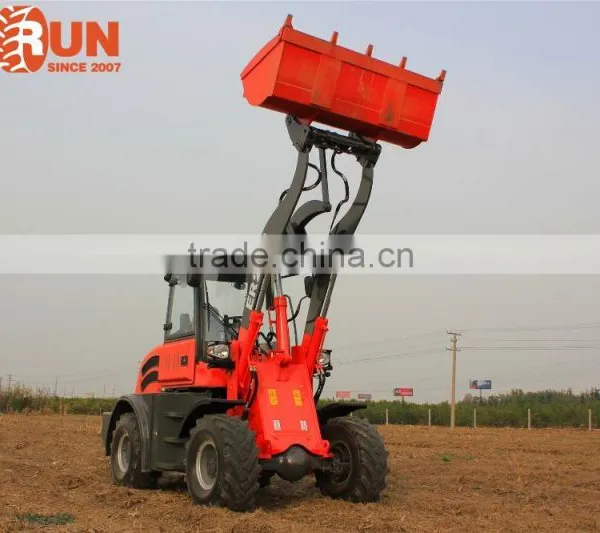

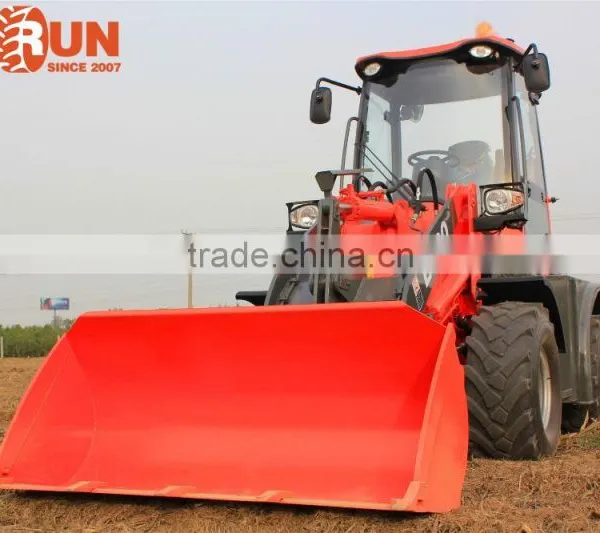

Qingdao Everun ER20 Wheel Loader
Specifications for ER20 Wheel Loader :
1.0 Engine Details: |
(1) Model: XiChai4DX21-72 |
(2) Engine Type: In-line arrangement, water-cooled |
(3) Four-cycle diesel engine |
(4) Rated power:55kw |
(5) Rated speed: 2400r/min(rpm) |
(6) Fuel Construction ratio in standard working |
(7) Condition:230g.kw.H |
2.0 Transmission System |
(1) Type: Fixed-spindle power shift |
(2) Shift gear control oil pressure: 1.2-1.5MPa |
(3) Rated input speed: 2500(rpm) |
3.0 Bucket |
(1) Bucket capacity: 1.0m³ |
(2) Bucket width: 2100mm |
(3) Bucket type: Heavy-duty bolt on teeth |
(4) Rated load: 2000kg |
4.0 Operating specifications |
(1) Steering system: Articulated frame with hydraulic power steering |
(2) Min Turning Radius: 4600mm |
(3) Driving system: Hydraulic converter |
(4) Operating weight: 5600kg |
5.0 Overall Dimentions |
(1) Overall Length: 5800mm |
(2) Overall Height: a: Ground to cabin top:2750mm b: Dumping Height: 3100mm |
c: Min. Base to the ground: 350mm d: Overall width:2000mm |
6.0 Brake system: |
(1) Service brake: Four wheel hydraulic spread-shoed brake-----Air brake |
(2) Parking brake: Hand operated |
7.0 Tyre: 16/70-20 or 23.5-16 |
Details for ER20 Wheel Loader:
Attachments for ER20 Wheel Loader:
Free Spare Parts for ER20 Wheel Loader:
·Delivery time:20-25 days after deposit.
·Payment term: T/T 30% in advance
·Packing: 2 units in 40HQ container.
·Warranty time:one year
·Minimum order quantity:1 unit
Professional Sale and After- Sales Team :We will try our best to provide you the High-quality Service.
Qingdao Everun Co.,Ltd is a exporter from China specializing in exporting mini wheel loaders.Being in these line more than 10 years,we can assure that our products are of best quality and reasoniable price. We have our own production department and experienced engineers to build your own design.All of our products are CE and TUV approved.Now you our machines can be found working in more than 30 countries.
Q:All Of Everun Wheel Loader Has CE Certification?
A:Yes.They all Have CE Certications.
Q:What Products Dose Everun Machinery Company Has?
A:We Are Mainly Specializing In Producting and Exporting Of Wheel Loader From 0.6 Ton to 5 Ton.Also We Focus On Export Other Machine Like Forklift Trucks,Execavators,Tractor etc.Agricultural and Enginnering Machinery.
Q:Dose the Everun Machinery Has Their Own Factory?
A:Yes,We Have Our Own Production Workshop and Experienced Engineers In Qingzhou.More Products Can Be Developed and Improved According to Our Customers' Requirements.
Q:Dose the Everun Machinery Has Good Service?
A:Yes,of course .We Have a Professional Sale and After-Sales Service Team.We require all the personnel of the service must be within 24 back to all customer inquiries.
