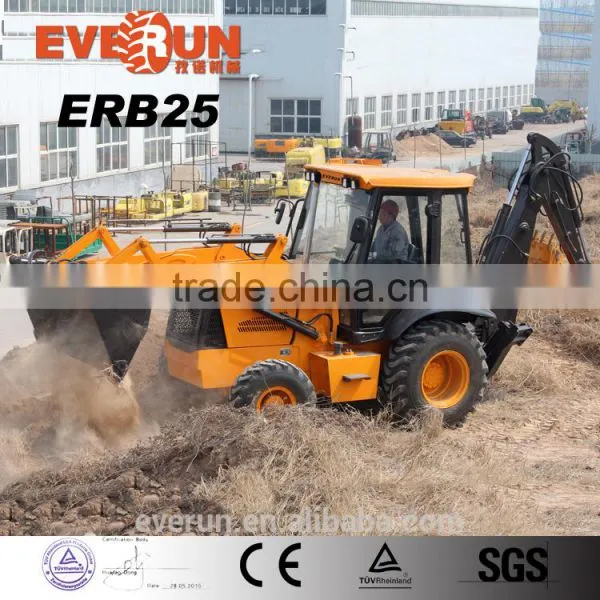

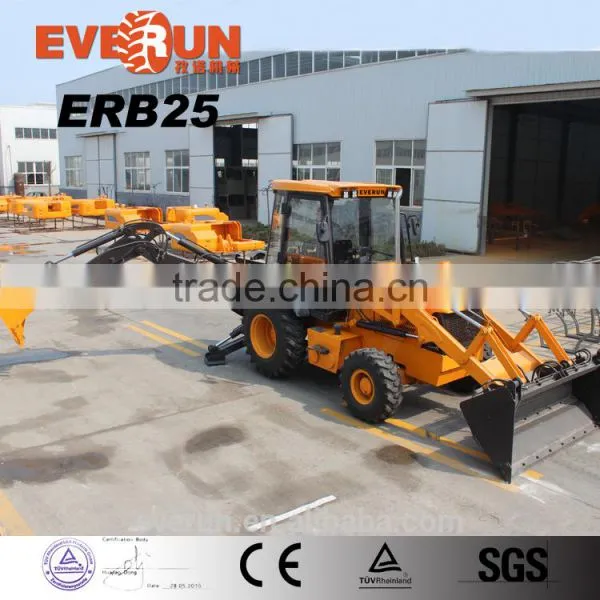

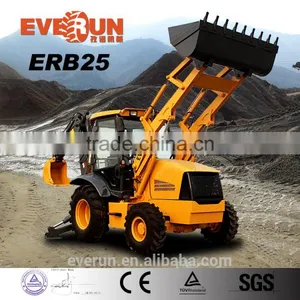

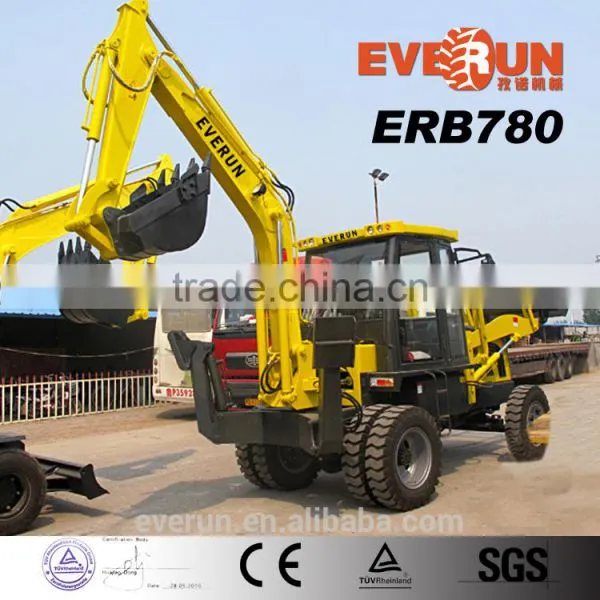

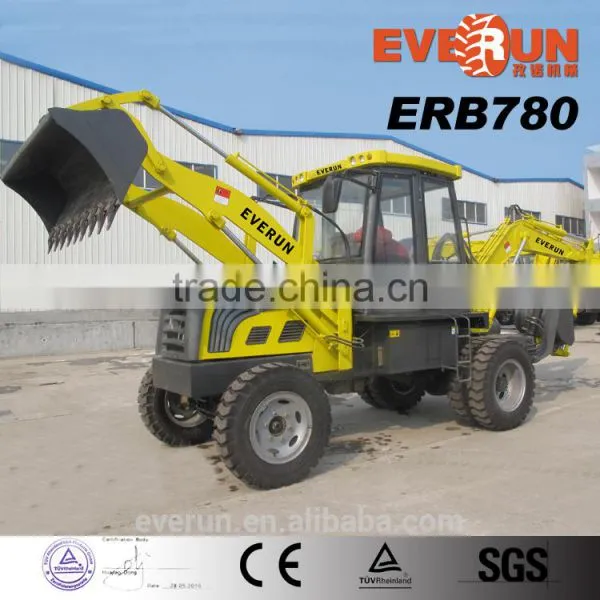

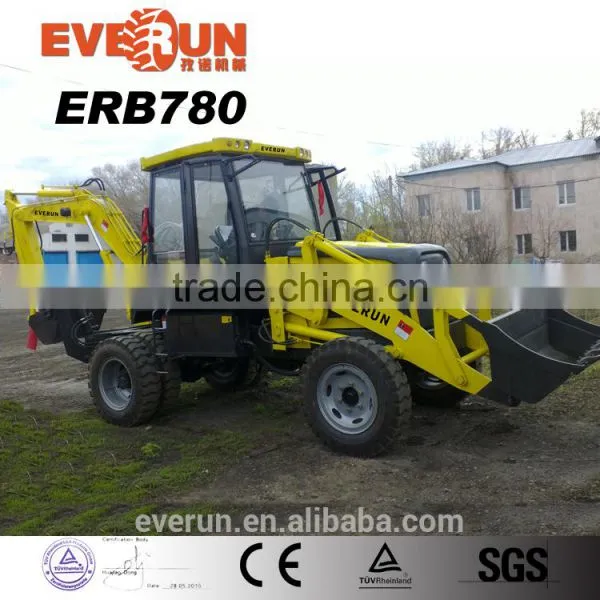

EVERUN backhoe loader 8ton 7ton 6ton, 4x4 carraro transmission, 1.15m3

(Model)

ERL25-10C

(Manufacturer)

QINGDAO EVERUN MACHINERY CO.,LTD

(Brand)

EVERUN

(Operating Weight)

7.6T

(Overall dimension)

7400x2170x2950 mm

(Diggine bucket capacity)

0.3cbm / 800kg

(Loading bucket capacity)

1.0cbm / 2200kg

(Engine type)

Japan imported Cummins(B3.3)

(Rated power/speed)

60KW

(No. of cylinders/type)

4 cylinder

(Bore and stroke)

102*120

(Voltage of start motor)

12V

(Starting type)

ELECTRIC

 (Hydraulic main pump)

USA PERMCO

(Hydraulic system pressure)

22MPa

(Hydraulic system flow)

80L/Min

(Pilot pump)

SKS

(Max travel speed)

29km/h

(Filter)

USA PERMCO

(Axle and Transmission)

YTO/CARRARO

(Gear)

Forward 1 2    Reverse 1

(Hydraulic pipe)

ITALY ( MANULI )

(Grade ability)

35 degree

(Working fuel consumption)

8.5L/h

(Diesel oil tank capacity)

125L

(Engine oil tank capacity)

9L

(Hydraulic oil tank capacity)

132L

(Cooling fluid tank capacity)

12L

(Shipping Length)

7400

(Shipping Height)

2950

(Overall Width)

2170

(Boom length)

3300

(Arm length )

2250

(Radius,Swing Center to Rear End)

2100

 (Min swing radius)

5000

(Tyre Type)

Front:21.5-16 ; Rear: 15-24

(Wheelbase)

2110

(Wheel Tread)

F:1620 ; R:1340

(Ground clearance)

300

(Drive Method 2WD/4WD)

Mechanical 2WD/4WD

(light)

All LED lights

(Backhoe part)

(Digging bucket width)

560 mm

(Digging bucket weight)

185 kg

(Maximum outrigger width (extended))

2900 mm

(Minimum outrigger width (transport))

2020 mm

(Maximum dumping height)

4350 mm

(Maximum digging depth)

4010 mm

(Maximum digging radius)

5250 mm

(Digging bucket force)

46 Kn

(Digging boom force)

35Kn

(Loader part)

(loading bucket width)

2030 mm

(Loading bucket weight)

350 kg

(Maximum loading height)

3300 mm

(Maximum loader dumped height)

2550 mm

(Maximum digging depth)

20-25 mm

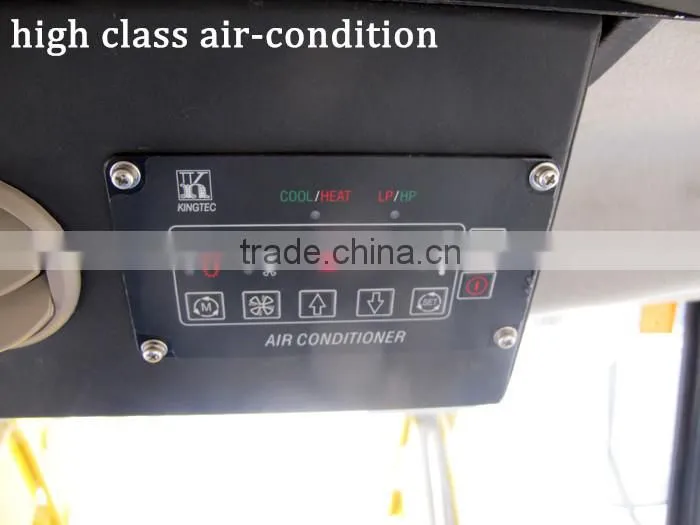

(Standard machine with A/C)

NO AC, CAN OPTIONAL

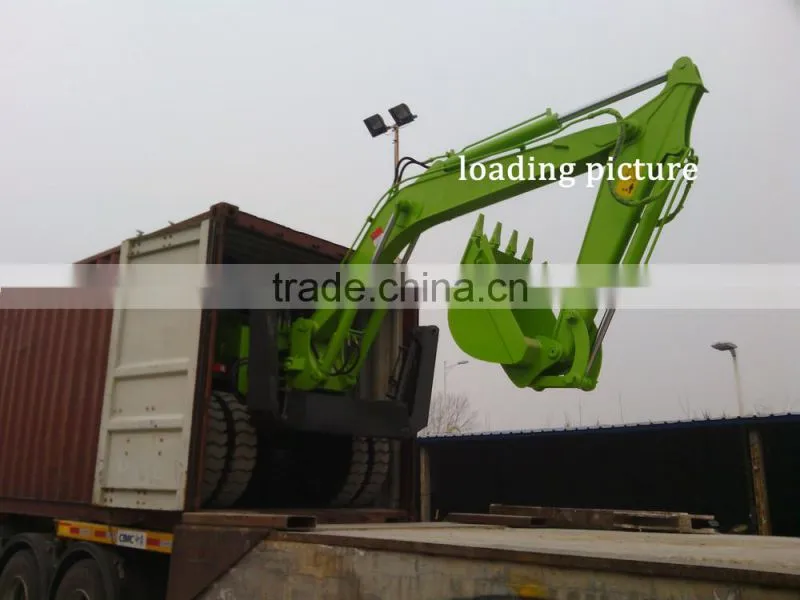

(Packing way)

one 40HQ load two units

(Passed certificates)

CE  ISO

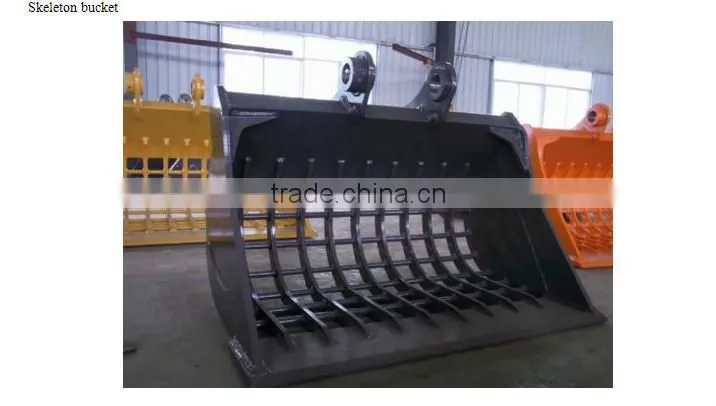

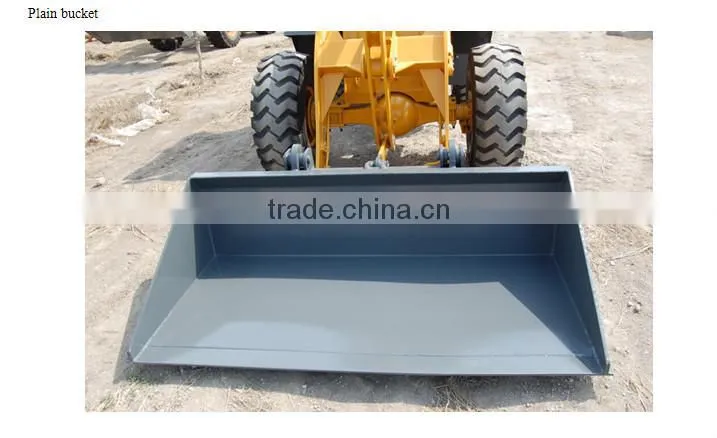

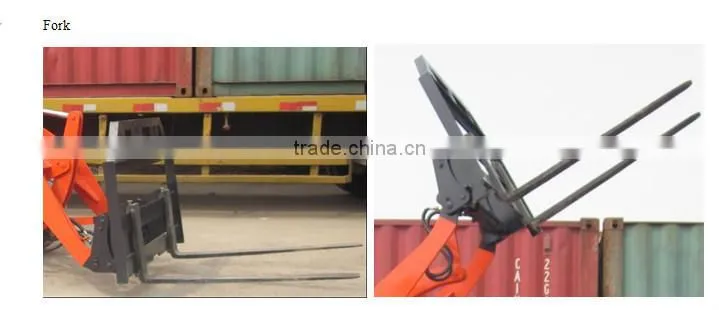

(Can add accessories)

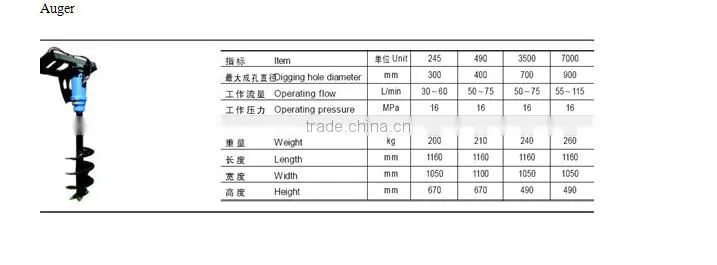

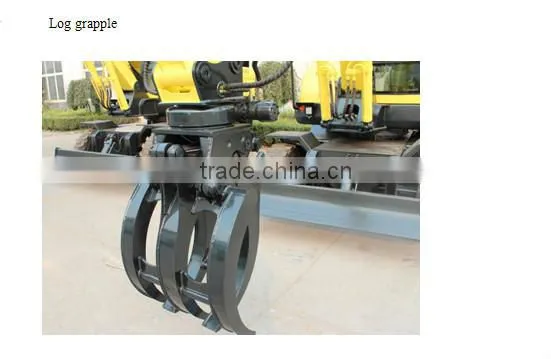

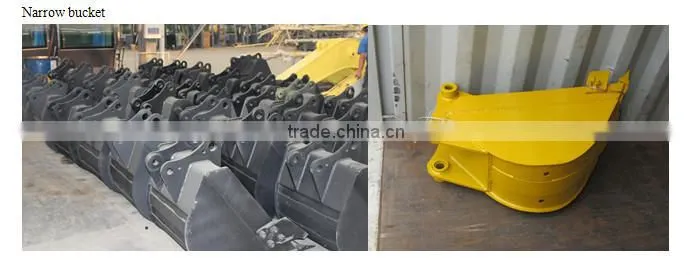

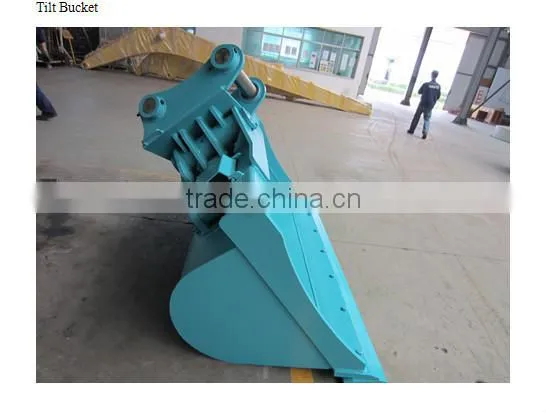

hammer,  auger,  quick hitch,  grader,  narrow bucket, tilt bucket
