Home > Transportation > Tractor & Parts > Tractor > BOTON BTA304 4WD Tractor Chagchai Engine JAPANESE Bearing

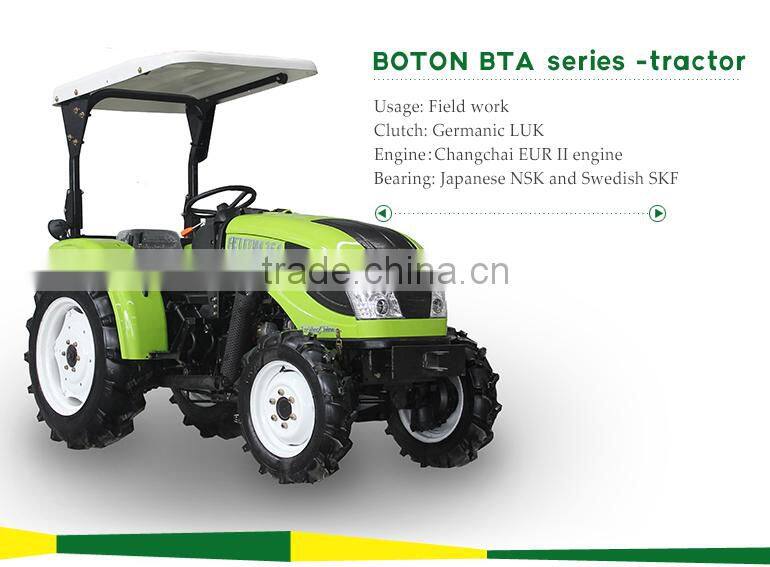

BOTON BTA304 4WD Tractor Chagchai Engine JAPANESE Bearing
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BOTON 4WD TRACTOR WITH SUNROOF 130HP FIAT CHASSIS TRACTORNegotiableMOQ: 1 Set -
BOTON 130hp 12F +4R Shift Gearbox Tractor and With 2 Pairs of Hydraulic OutputNegotiableMOQ: 1 Set
-
130HP TRACTOR WITH SUNROOF WITH 2 PAIRS OF HYDRAULIC OUTPUTNegotiableMOQ: 1 Set
-
130HP 4WD TRACTOR WITH SUNROOF AND Japan NSK BearingNegotiableMOQ: 1 Set
-
BOTON 130HP TRACTOR WITH SUNROOF FOR SALENegotiableMOQ: 1 Set
Condition
New
Type
Wheel Tractor
By wheel
4WD
Usage
Farm Tractor
Drive Type
Gear Drive
Power(W)
22050
Certificate
EPA
Brand Name
BOTON
Model Number
BTA304
Place of Origin
Henan, China
After-sales Service Provided
Engineers available to service machinery overseas
| MODEL | BTA300 | BTA304 | BTA350 | BTA354 | BTA400 | BTA404 |
| Drive type | 4*2 | 4*4 | 4*2 | 4*4 | 4*2 | 4*4 |
| GENERAL SPECIFICATION | ||||||
| Length×Width×Heigh (mm) | 3085*1352*1258 | 3085*1190*(1267-1358) | 3185*1352*1258 | 3185*1190*(1267-1358) | 3185*1352*1258 | 3185*1190*(1267-1358) |
| Constructional weight(KG) | 1070 | 1210 | 1150 | 1290 | 1150 | 1290 |
| Ttraction force (KN) | ≥6.5 | ≥7.0 | ≥7.0 | ≥8.0 | ≥7.5 | ≥9.0 |
| Wheel base (mm) | 1880 | 1880 | 1880 | 1880 | 1880 | 1880 |
| Front wheel tread (mm) | 1315 | 1315 | 1315 | 1315 | 1315 | 1315 |
| Rear wheel tread (mm) | 930-1200 | |||||
| P.T.O Max.power (Kw) | 18.8 | 18.8 | 21.8 | 21.8 | 25 | 25 |
| Ground clearance (mm) | 2WD:below of transmission case238.5(332.5);4WD:below of transmission case 210(304) | |||||
| ENGINE | ||||||
| Type | 3T30 | 3T30 | 4L22BT | 4L22BT | 4L23BT | 4L23BT |
| Rated power | 22.1 | 25.7 | 29.4 | |||
| Rated revolution (r/min) | 2350 | 2350 | 2400 | |||
| Max.torque (n.m) | ≥100 | ≥124 | ≥135 | |||
| TRANSMISSION | ||||||
| Clutch | 9 inch,single,dry,often combined,double-clutch, foot pedal contral | |||||
| The number of gearbox | 12F+4R,12F+12F | |||||
| WORKING DEVICE | ||||||
| Lifter tilling depth control | Position control and floating control | |||||
| Max.lifting capacity (KN) | ≥6.62 | |||||
| Suspension type | 1 class ,rear 3 point suspension | |||||
| Speed of P.T.O.(r/min) | 540,760,850,1000 for choicing | |||||
