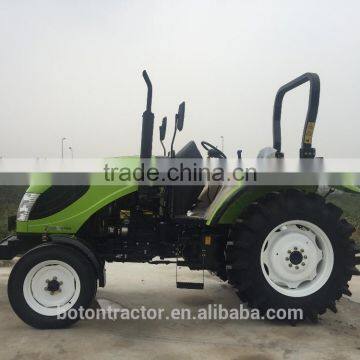

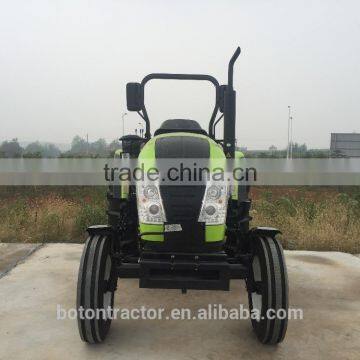

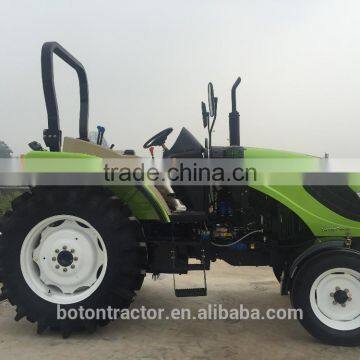

WHEELED TRACTOR BOTON 1004F WITH DEUTZ II Engine FOR SALE
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WHEELED TRACTOR BOTON 1104 110HP 4WD WITH ROPSNegotiableMOQ: 1 Set -
BOTON 100HP DEUTZ II Engine TRACTOR FOR SALENegotiableMOQ: 1 Set
-
BOTON 100hp 4wd Tractor BTC1004-01NegotiableMOQ: 1 Set
-
BOTON FIAT GEARBOX TRACTOR 110hpNegotiableMOQ: 1 Set
-
FIAT GEARBOX 4WD TRACTOR 100hpNegotiableMOQ: 1 Set
Condition
New
Type
Wheel Tractor
By wheel
4WD
Usage
Farm Tractor
Drive Type
Gear Drive
Power(W)
73500
Certificate
EPA
Brand Name
BOTON
Model Number
BTC1004F
Place of Origin
Henan, China
After-sales Service Provided
Engineers available to service machinery overseas
| Technical Specification | ||||||
| BOTON TRACTOR MODEL |
BTC800-01 | BTC804-01 | BTC900-01 | BTC904-01 | BTC1004-01 | BTC1104-01 |
| Drive type | 4*2 | 4*4 | 4*2 | 4*4 | 4*4 | 4*4 |
| GENERAL SPECIFICATION | ||||||
| Length×Width×Heigh (mm) | 4530*2100*2800 | 4530*2100*2884 | 4530*2100*2800 | 4530*2170*3000 | 4530*2170*3000 | 4530*2170*3000 |
| Ttraction force (KN) | 14.9 | 17.6 | 16 | 19.8 | 24 | 24 |
| Steering | Hydraulic | |||||
| Wheel base (mm) | 2342 or 2353 | 2314 or 2325 | 2342 or 2353 | 2314 or 2325 | 2314 or 2325 | 2314 or 2325 |
| Front wheel tread (mm) | 1400-1900 | 1630-1960 | 1400-1900 | 1630-1960 | 1630-1960 | 1822-2153(1910) |
| Rear wheel tread (mm) | 1500-2100 | 1500-2100 | 1500-2100 | 1520-2120 | 1520-2120 | 1520-2120 |
| P.T.O Max.power (Kw) | 50.2 | 50.2 | 56.3 | 56.3 | 64.3 | 64.3 |
| Ground clearance (mm) | 360 | 430 | 360 | 440 | 440 | 440 |
| ENGINE | ||||||
| Type | WP4T80E20 | WP4T80E20 | WP4T90E23 | WP4T90E23 | WP4T110E200 | WP4T110E200 |
| Bore*Stroke (mm) | 105*130 | |||||
| Rated revolution (r/min) | 2200 | 2300 | 2300 | 2300 | 2300 | 2300 |
| Max.torque (n.m) | 262 | 362 | 410 | 410 | 470 | 515 |
| Speed of Max.torque r.p.m |
1400-1600 | |||||
| TRANSMISSION | ||||||
| Clutch | Dry,independent operation of cluth dual-stage cluth | Dry,independent operation of cluth dual-stage cluth | Dry,independent operation of cluth dual-stage cluth | Dry,dual-stage cluth |
Dry,dual-stage cluth |
Dry,dual-stage cluth |
| Gear box | 12F+4R | |||||
| WORKING DEVICE | ||||||
| Lifter tilling depth control | Forced and position buried,floating control | |||||
| Max.lifting capacity (KN) | 14.2 | 14.2 | 15.9 | 15.9 | 17.6 | 19.4 |
| Suspension type | Class 2 3-point hitch | |||||
| Speed of P.T.O.(r/min) | Standard:760/1000;optional:540/1000,760/850,540/760 Standard:8teeth;6teeth or 21 teeth | |||||
