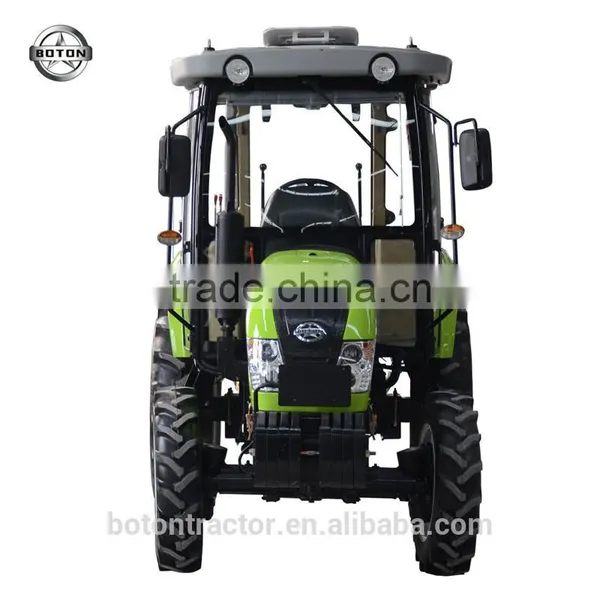

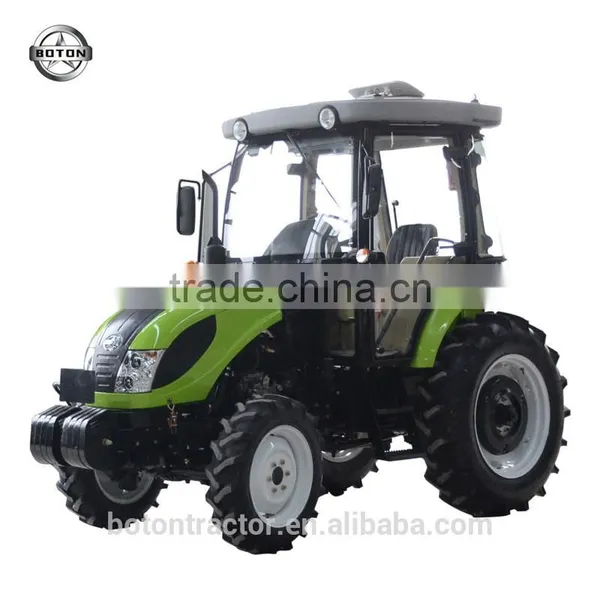

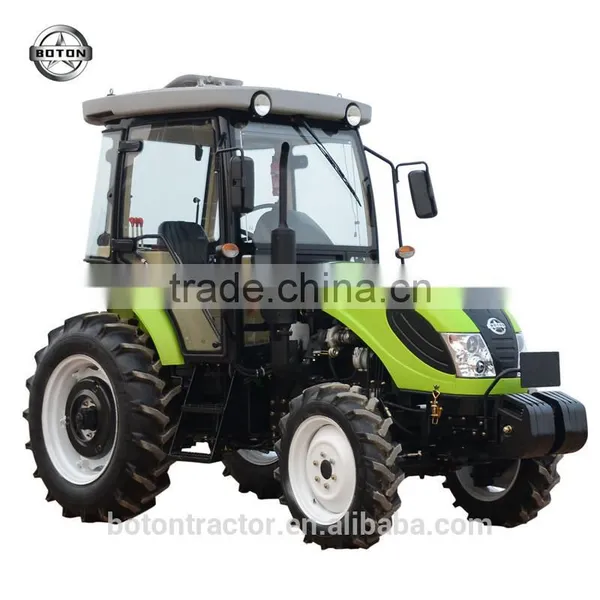

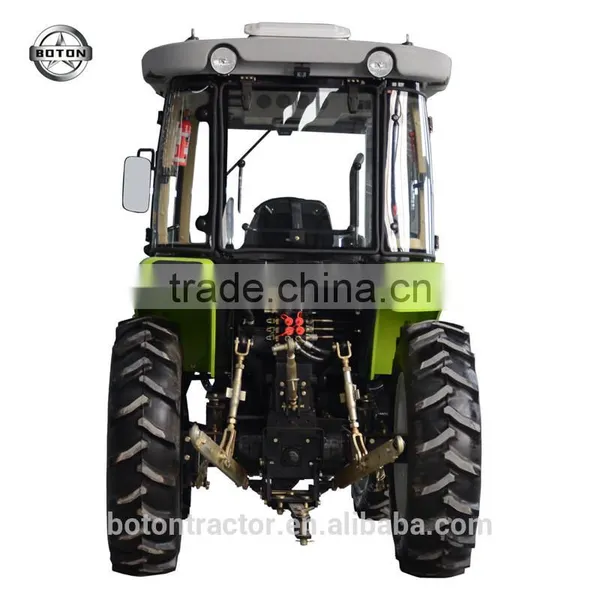

WHEELED TRACTOR BOTON 504 55hp 4wd agriculture tractor with cabin

Name: WHEELED TRACTOR BOTON 504 55hp 4wd agriculture tractor with cabin
Brand: BOTON
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Condition:	New	Type:	Wheel Tractor	By wheel:	4WD
Usage:	Farm Tractor	Drive Type:	Gear Drive	Power(W):	37284
Certificate:	EPA	Brand Name:	BOTON	Model Number:	BTB554
Place of Origin:	Henan, China	After-sales Service Provided:	Engineers available to service machinery overseas

Technical Specification
BOTON TRACTOR MODEL	BTB450-01/02	BTB454-01/02	BTB500-01/02	BTB504-01/02	BTB554-02	BTB600-01/02	BTB604-01/02
Drive type	4*2	4*4	4*2	4*4	4*4	4*2	4*4
GENERAL SPECIFICATION
Length×Width×Heigh (mm)	37001615 2200	37001615 2216	37001645 2230	37001645 2250	37001645 2065	37001645 2080	37551645 2065
Constructional Weight (KN)	1610	1900	1665	1900	2000	1765	2000
Ttraction force (KN)	10	10.5	10.7	11.7	12.8	12.8	12.8
Steering	Hydraulic
Wheel base (mm)	1200-1500	1955	1940	1955	2010	1955	2010
Front wheel tread (mm)	1320-1620	1250	1330-1630	1250	1250	1330-1630	1250
Rear wheel tread (mm)	1300-1600	1300-1600	1300-1600	1300-1600	1300-1600	1300-600	1300-1600
P.T.O Max.power (Kw)	28.1	28.1	31.5/32.5	31.5/32.5	35.6	35.6	37.5
Ground clearance (mm)	380	300	400	300	300	400	300
ENGINE
Type	4L68	4L68	4G33T	4G33T	4G33T	4L88	4L88
Bore*Stroke (mm)	95*100	95*100	95*115	95*115	105*117	95*100	95*100
Rated revolution (r/min)	2400	2400	2400	2400	2400	2300	2300
Max.torque (n.m)	≥155.4	≥155.4	≥173	≥173	≥190.2	≥216.1	≥216.1
Speed of Max.torque r.p.m	≤1800	≤1800	≤1800	≤1800	≤1800	≤1725	≤1725
TRANSMISSION
Clutch	Often-combination,Dual-stage clutch,Dry,10 inches
Gear box	12F+4R
WORKING DEVICE
Lifter tilling depth control	Forced buned
Max.lifting capacity (KN)	7.4	7.4	8.3	8.3	9.1	9.9	9.9
Suspension type	Class 1 3-point hitch
Speed of P.T.O.(r/min)	Standard:540/720;optional:540/1000,720/1000

Luoyang Boton Agriculture Equipment Co., Ltd.: Contact nameJoseph Cao; Phone0086-0379-62363667; AddressTHE ADVANCED MANUFACTURING INDUSTRY AREA Luoyang,Henan
