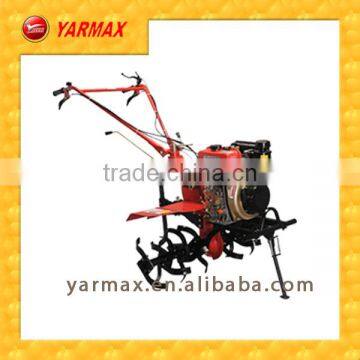

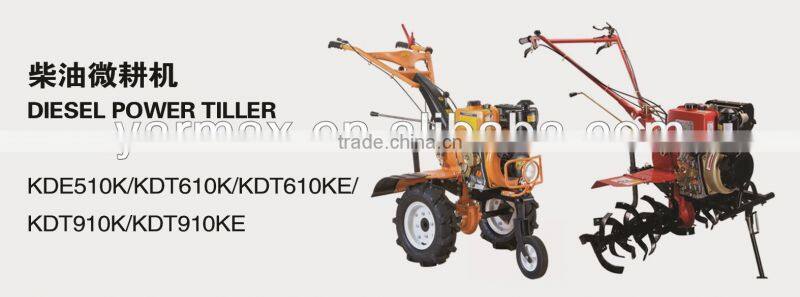

Power Tiller KAMA 178F Agricultural Rotary Power Tillage Machine

Name: Power Tiller KAMA 178F Agricultural Rotary Power Tillage Machine
Brand: SUMOKAMA
SKU: 140761176
Availability: InStock

Changzhou Yarmax Power Co., Ltd.

US$ 520 - 560 MOQ: 20 Pieces

Key Specifications

Condition:

New

Type:

Farm Cultivator

Power Type:

Diesel

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Farm Cultivator

Power Type Diesel

Power(W) 4.4kw/6hp

Certification CE ISO

Warranty 12 months

Use Agricultural

Place of Origin Jiangsu, China

Brand Name SUMOKAMA

Model Number KDE610K/KDT105FC-Z

Weight 115/120kg

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Agricultural rotary tillage machine 6HP
KAMA engine
diesel power tiller
CE ISO approval
small rotary tillage machine

Model		KDE610K/ KDT105FC-Z
Tiller	Tilling Width(cm)	105
	Tilling Depth(cm)	≥ 10
	Drive-way Transmission	Full Gear
	Gear	Fast-Slo ≥ w-N-R
	Clutch Type	Friction
	Tire	4.00-8
	Productivity(hm²/h)	≥0.04
	N.G/W.G(kg)	115/120
	Dimension(mm)
Engine	Model	178F Air-Cooled Diesel Engine
	Engine Type	single-cylinder, vertical four-stroke, Direct injection, air-cooled Diesel Engine
	Bore*Stroke(mm)	78*62
	Displacement(ml)	296
	Rated Power(kW/rpm)	4.0/3600
	Max. Power(kW/rpm)	4.4/3600
	Fuel Tank Capacity(L)	3.5
	Fuel Consumption(g/kW.h)	≤420g/kw.h
	Fuel Type	0# in summer,-10# or-20# in winter
	Oil Capacity(L)	1.1
	Lube type	SAE 10W30
	Start System	Recoil
Others	Included Parts	with dry land blade(3 pieces, 4 groups)
	Packing	Cast-iron Bracket +Caron Box
	20” GP(Set)	40 Units
	40” GP(Set)	96 Units
	40” HQ(Set)	144 Units
	MOQ	20 Sets
