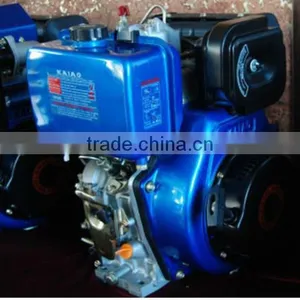

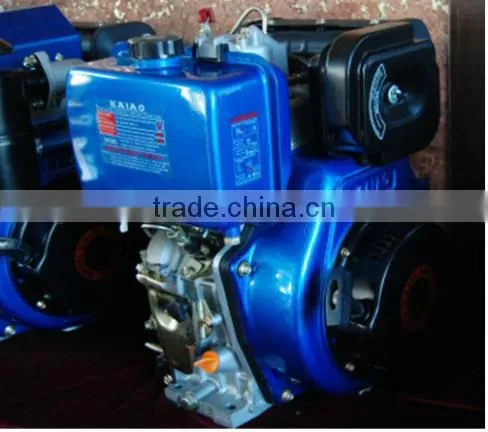

Home > Industrial Equipment & Components > Engine & Part > Engine > OEM 6.6kw/9hp Single Cylinder Diesel Engine
US$ 200 - 500
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Usage:
Other, Power
Fuel:
Diesel
Stroke:
4 Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12hp/8kw Single Cylinder Diesel Engine With Electric Start (KA188E)US$ 200 - 500MOQ: 50 Pieces -
Low Rpm 1500/1800rpm Single Cylinder Diesel EngineUS$ 200 - 500MOQ: 10 Pieces
-
4kw/5hp Vertical Single Cylinder Diesel Engine With Electric StartUS$ 200 - 500MOQ: 10 Pieces
-
Single-Cylinder Diesel Engine, for Generating Set (KM170F)US$ 200 - 500MOQ: 10 Pieces
-
11HP Air Cooled Diesel Engine KA188FUS$ 200 - 500MOQ: 10 Pieces
Usage
Other, Power
Fuel
Diesel
Stroke
4 Stroke
Cylinder
Single Cylinder
Cold Style
Other, Water-cooled
Start
Electric Start
Place of Origin
Jiangsu, China
Brand Name
Sumokama
Model Number
KM186FA
Specifications
1)OEM ACCEPT2)Spare parts avaliab
| 8Hp diesel engine | |
| Model | KM186FA |
| Rated output(HP/rpm) | 7.9HP/3000, 8.6HP/3600 |
| Rated output(KW/rpm) | 5.7KW/3000, 6.3KW/3600 |
| Engine type | Single-cylinder, vertical, four-stroke, air-cooled, direct injection |
| Cylinder Diameter*stroke(mm) | 86X72 |
| Piston displacement (L) | 0.418 |
| Compression ratio | 19 |
| Max. no-load speed(r/min) | 108% of Rated rotary speed |
| Min. no-load speed(r/min) | 1300 |
| Lubrication system | Pressure splash complex Type |
| Engine starting system | Recoil starter or Electric starter |
| Output terminal rotation | AnticlockWise |
| Fuel oil model | Summer: 0#, Winter: -10# |
| Fuel tank capacity (L) | 5.5 |
| Fuel consumption rate(g/kW. h) | 275/3000 280/3600 |
| Oil consumption rate(g/kW. h) | 4.08 |
| Oil grade | CD grade or SAE10W-30, 15W-40 |
| Valve clearance(cold state) mm | 0.10-0.15 |
| Lube oil capacity (L) | 1.65 |
| Starting motor (V, kW) | 12V 0.8kW |
| Charging generator(V, A) | 12V 3A |
| Battery capacity(V, AH) | Above 12V-36AH |
| Dimension (L*W*H)(mm) | 522*522*578 |
| Net weight(kg) | 48 |
