13HP Two Wheel Tractor, Gear Drive Tiller Cultivator, All Gear Drive Rotary Tiller

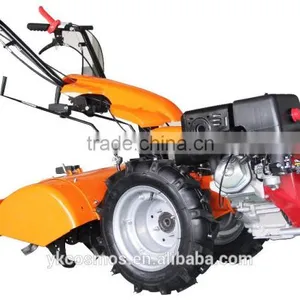

13HP Two Wheel Tractor, Gear Drive Tiller Cultivator, All Gear Drive Rotary Tiller thumbnail-1
13HP Two Wheel Tractor, Gear Drive Tiller Cultivator, All Gear Drive Rotary Tiller thumbnail-2

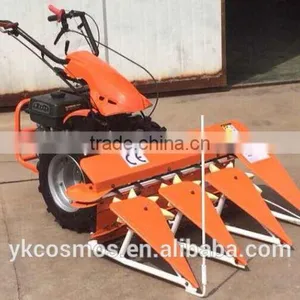

13HP Two Wheel Tractor, Gear Drive Tiller Cultivator, All Gear Drive Rotary Tiller thumbnail-3

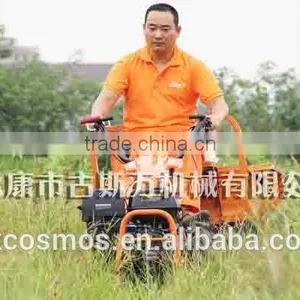

13HP Two Wheel Tractor, Gear Drive Tiller Cultivator, All Gear Drive Rotary Tiller thumbnail-4

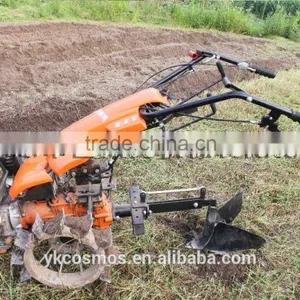

13HP Two Wheel Tractor, Gear Drive Tiller Cultivator, All Gear Drive Rotary Tiller thumbnail-5
13HP Two Wheel Tractor, Gear Drive Tiller Cultivator, All Gear Drive Rotary Tiller photo-1

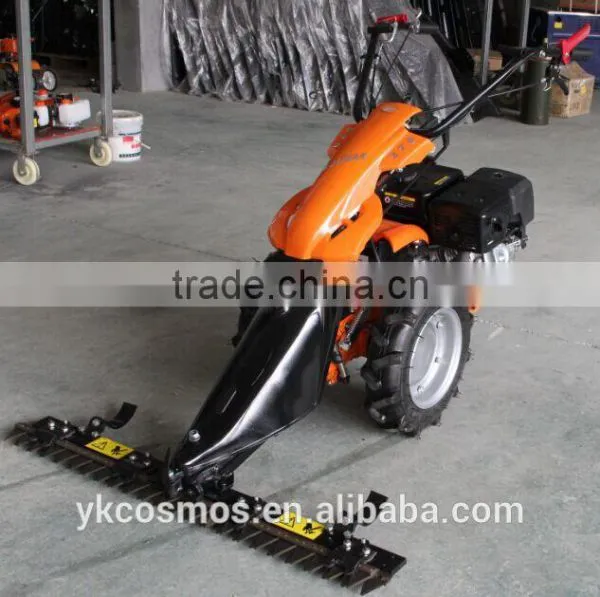

13HP Two Wheel Tractor, Gear Drive Tiller Cultivator, All Gear Drive Rotary Tiller photo-2

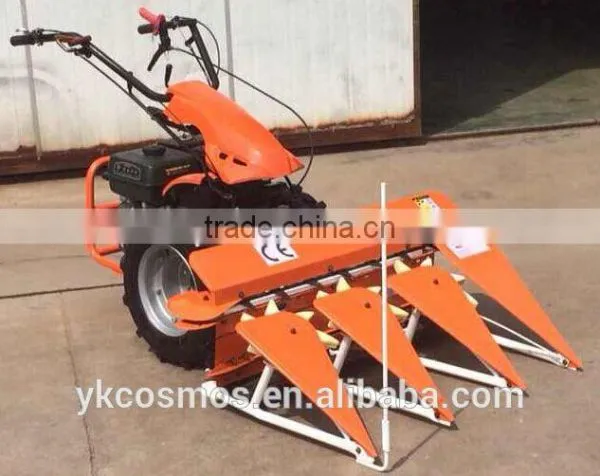

13HP Two Wheel Tractor, Gear Drive Tiller Cultivator, All Gear Drive Rotary Tiller photo-3

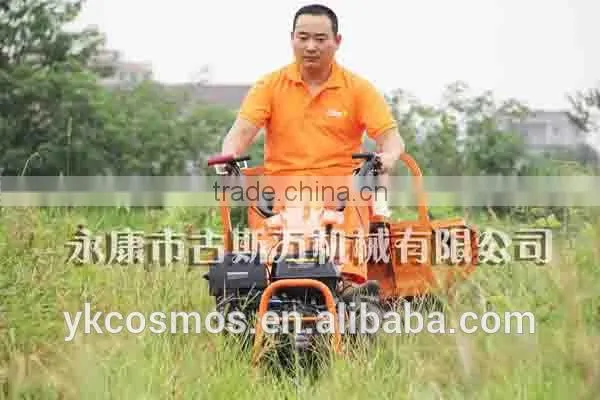

13HP Two Wheel Tractor, Gear Drive Tiller Cultivator, All Gear Drive Rotary Tiller photo-4

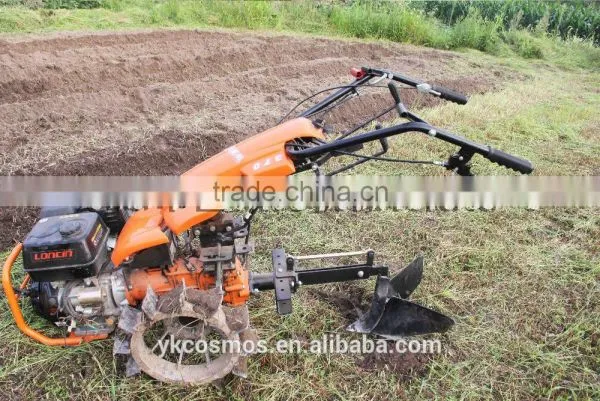

13HP Two Wheel Tractor, Gear Drive Tiller Cultivator, All Gear Drive Rotary Tiller photo-5
US$ 500 - 2,000 MOQ: 100 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Yongkang Cosmos Machinery Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Walking Tractor
By wheel 2WD
Usage Garden Tractor
Drive Type Gear Drive
Power(W) 9600
Certificate CE
Brand Name cosmos
Model Number C-MT730
Place of Origin Zhejiang, China
After-sales Service Provided No overseas service provided

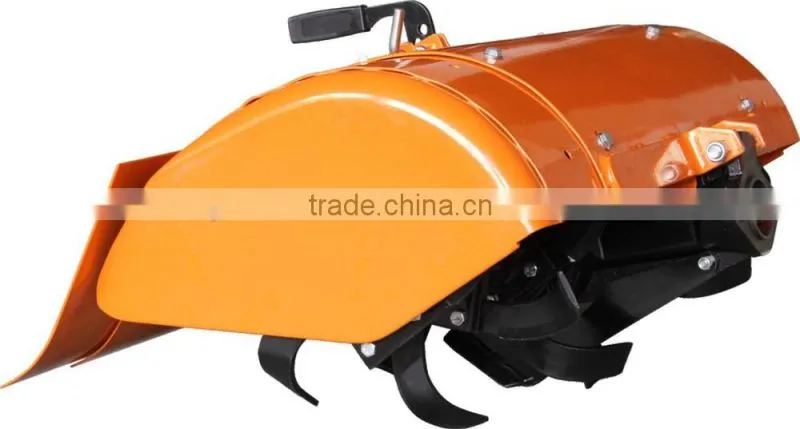

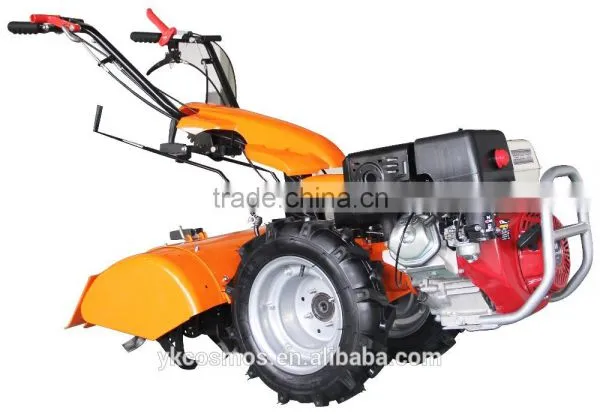

13HP two wheel tractor, gear drive tiller cultivator, all gear drive rotary tiller



C-MT370 technical features

  1. 1. Engine option:6.5hp to 13hp, gas or diesel, both ok
  2. 2. Start method: Available in recoil start or electric start
  3. 3. Weight: 120kg
  4. 4. Gears: 3 (2)forward, 2 reverse
  5. 5. Handlebar: adjustable in height and sidewise in different positions.It can be orientated of 180°
  6. 6. Working speed:forward: 1.18,2.76,12.67km/h reverse:1.24,2.91 km/h
  7. 7. Wheel Size:4.0×10.0
  8. 8. Transmission: all gear drive and direct power transmission
  9. 9. Lubricating system:oil bath lubrication
  10. 10. Clutch type: Dry clutch
  11. 11. P.T.O.:990rpm at 3600rpm of the motor
  12. 12. Gear ratio:Ⅰ264.2:1  Ⅱ 112.9:1  Ⅲ 24.5:1



Technical date for Loncin G390F engine

  1. 1. Engine: Loncin G390F electric start
  2. 2. Net power: 8.3kw/3600rpm
  3. 3. Net torque: 25.3N.m/2500rpm
  4. 4. Bore*Stroke: 88*64mm
  5. 5. Displacement:389cc
  6. 6. Fuel tank capacity:6.5L

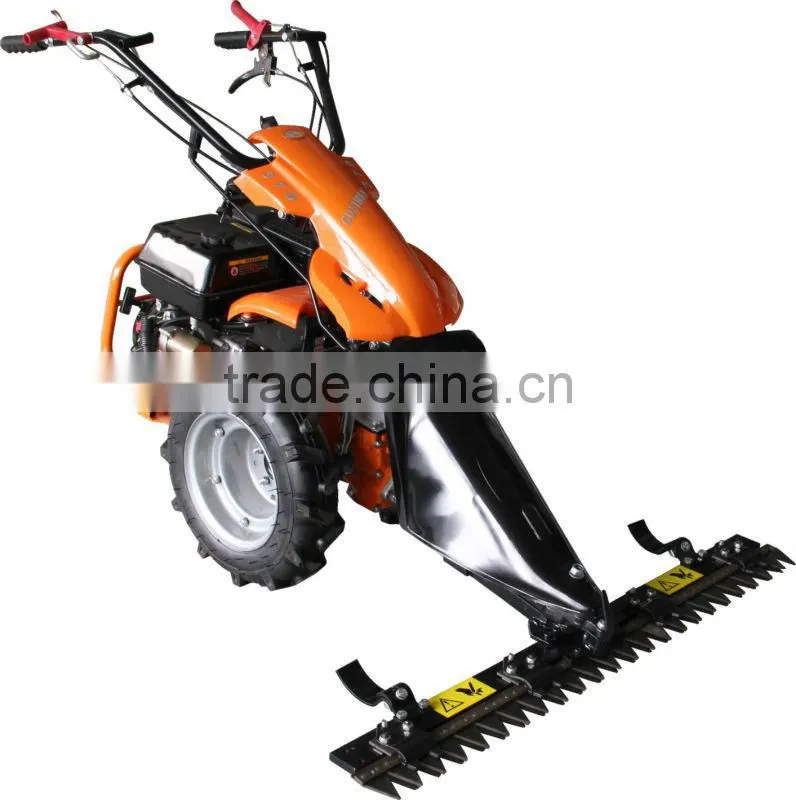

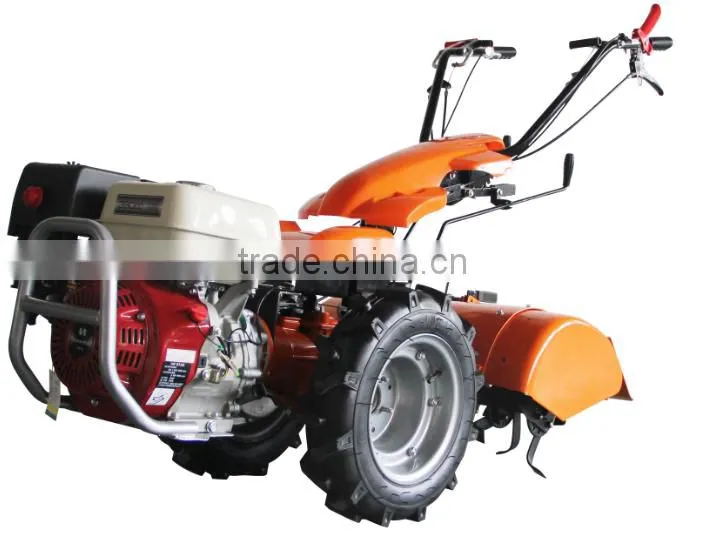

  7. 13HP two wheel tractor, gear drive tiller cultivator, all gear drive rotary tiller

13HP two wheel tractor, gear drive tiller cultivator, all gear drive rotary tiller


13HP two wheel tractor, gear drive tiller cultivator, all gear drive rotary tiller13HP two wheel tractor, gear drive tiller cultivator, all gear drive rotary tiller

 13HP two wheel tractor, gear drive tiller cultivator, all gear drive rotary tiller13HP two wheel tractor, gear drive tiller cultivator, all gear drive rotary tiller
