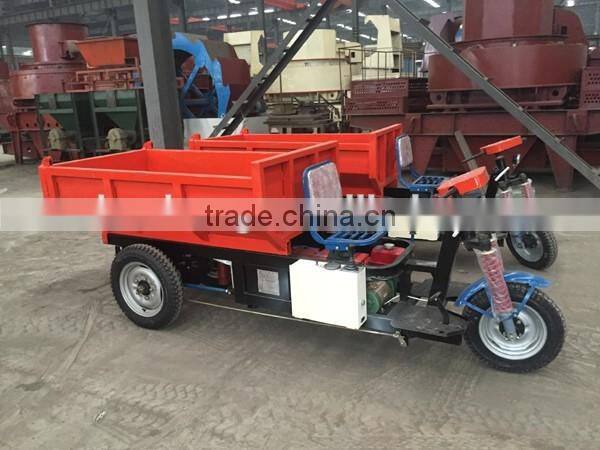

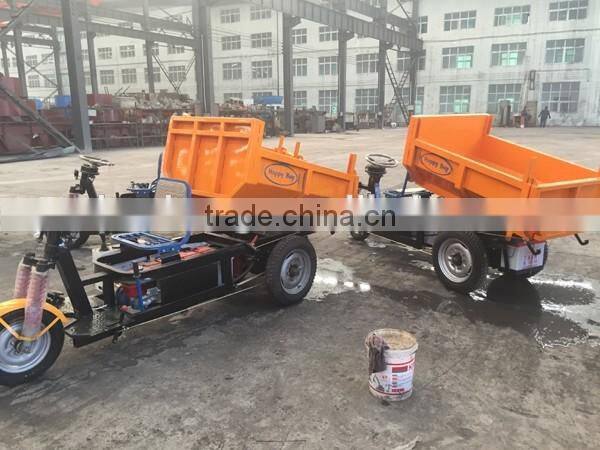

Electro-tricycle for Mining,3 Wheel Electric Bicycle,motorcycles,cargo Bicycle

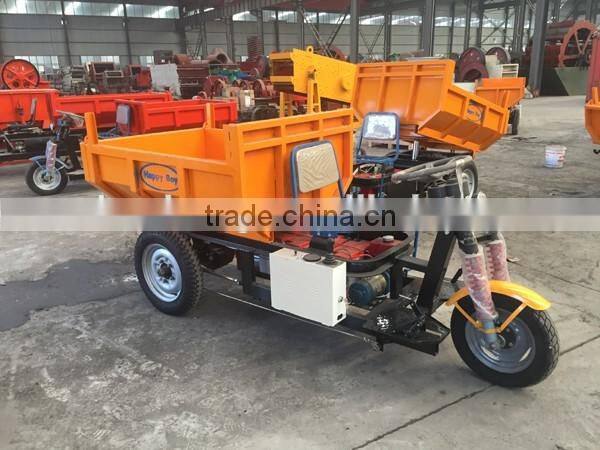

Electro-tricycle for Mining,3 Wheel Electric Bicycle,motorcycles,cargo Bicycle photo-1

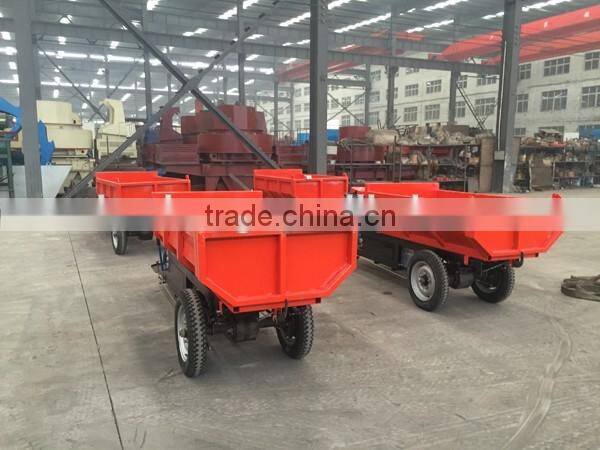

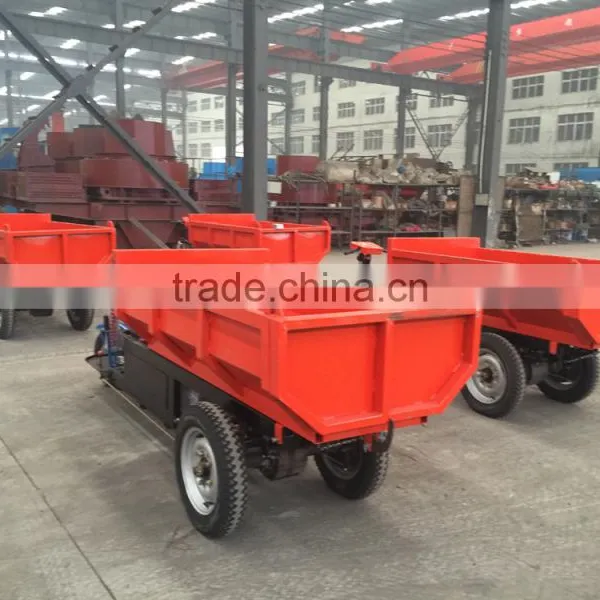

Electro-tricycle for Mining,3 Wheel Electric Bicycle,motorcycles,cargo Bicycle photo-2

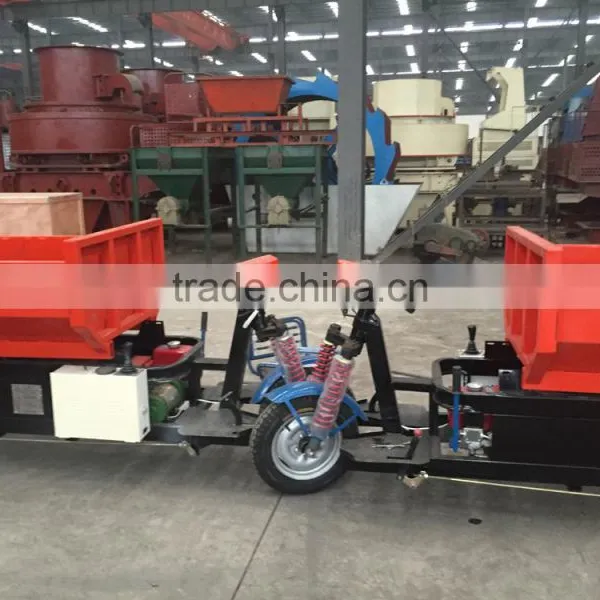

Electro-tricycle for Mining,3 Wheel Electric Bicycle,motorcycles,cargo Bicycle photo-3

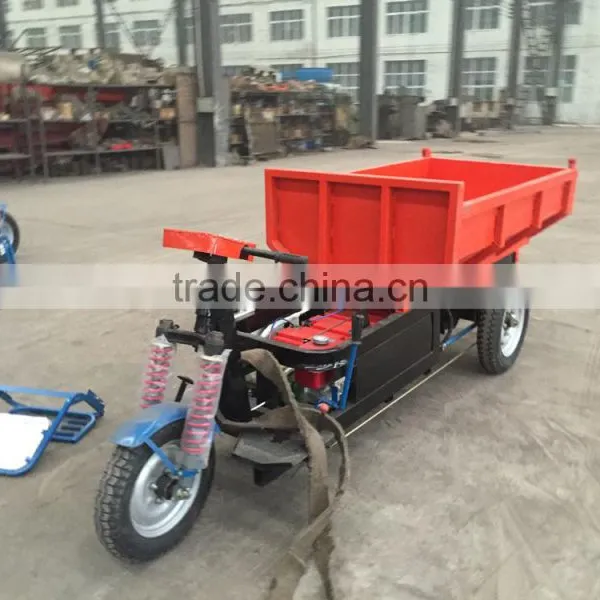

Electro-tricycle for Mining,3 Wheel Electric Bicycle,motorcycles,cargo Bicycle photo-4

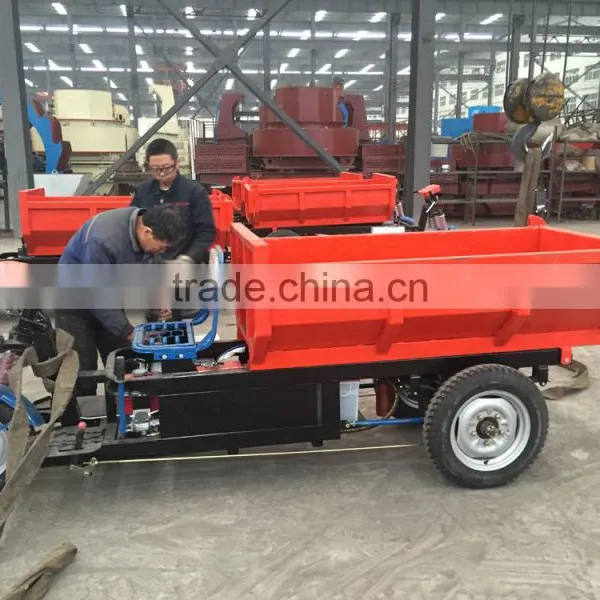

Electro-tricycle for Mining,3 Wheel Electric Bicycle,motorcycles,cargo Bicycle photo-5

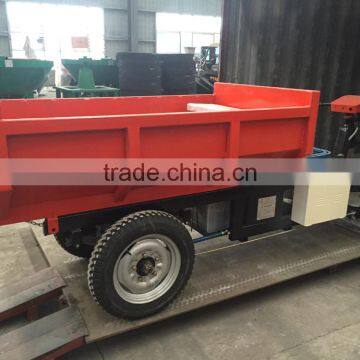

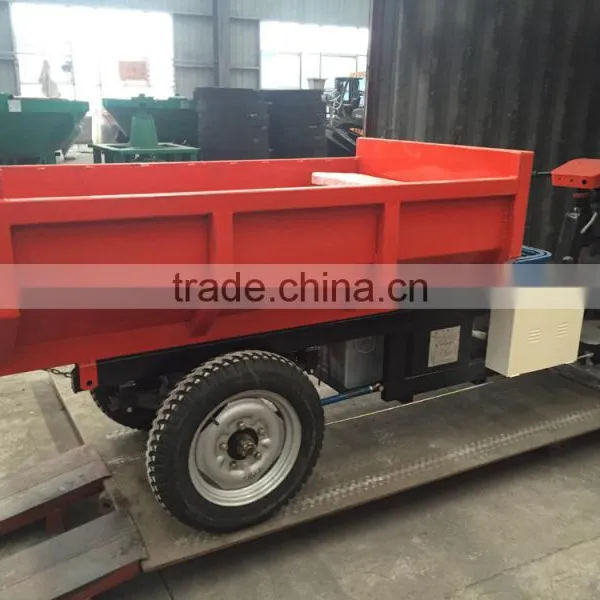

Electro-tricycle for Mining,3 Wheel Electric Bicycle,motorcycles,cargo Bicycle photo-6
US$ 1,000 - 2,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Use For:
Cargo
Driving Type:
Electric
Power:
200 - 250W
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao shanghai
Delivery Detail:
Delivery time depends on order quantity.
Use For Cargo
Driving Type Electric
Power 200 - 250W
Voltage 36V
Body Type Open
Certification CE
Brand Name huahong
Place of Origin Henan, China
Model Number zy
Size 3200*1200*1400mm

Product Description



Electric tricycle (Electrically operated tricycle) is used for battery-powered, motor-driven goods or pull people with three-wheeled transport. Electric tricycle with large capacity tube, left and right lining, deep discharge, traction battery, can adapt to the requirements of continuous discharge for a long time, the battery normal use of two years, the content volume diminished.

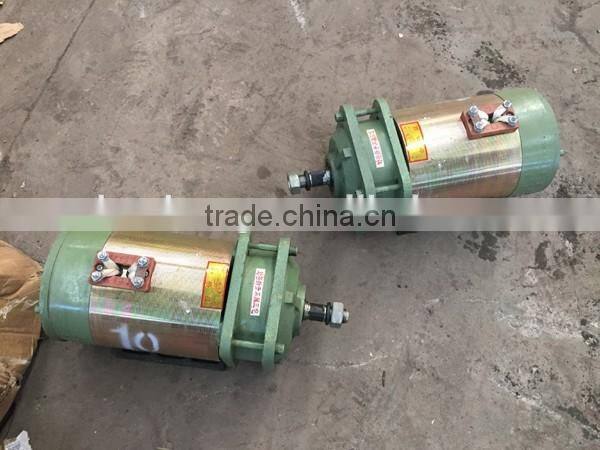

Electric tricycle motor using DC series traction brush or brushless motor, the motor with internal speed control device by force, the normal use is not easy to damage, to ensure a strong output power.

electro-tricycle for mining,3 wheel electric bicycle,motorcycles,cargo bicycleelectro-tricycle for mining,3 wheel electric bicycle,motorcycles,cargo bicycleelectro-tricycle for mining,3 wheel electric bicycle,motorcycles,cargo bicycleelectro-tricycle for mining,3 wheel electric bicycle,motorcycles,cargo bicycleelectro-tricycle for mining,3 wheel electric bicycle,motorcycles,cargo bicycle

Technical parameters
Item
technical
ZY155
ZY165
ZY180

Weight
Loading capacity
1000kg
1500kg
2000kg
Net weight
520kg
850kg
1000kg


Battery
Voltage
48V
60V
72V
Battery type
140Ah
160Ah
185Ah
Charging hour
First with 12 hours, then normal with 8 hours
Working hour
10 to 12 hours with a full charge


Motor
Lifting motor power
1000w
1000w
1000w
Driving motor power
1000w
1500w
2000w
Rotating speed
3500r/min

Tire
Front type
400-12
450-14
450-14
Rear type
450-14
500-14
600-16


Size
Overall Size(L×W×H)
2600×900×1200mm
3200×1100×1200mm
3600×1200×1400mm
Box Size(L×W×H)
1400×900×400mm
1700×1100×500mm
1800×1200×500mm
Thickness of Box
5mm
5mm
5mm
Workbench Height
600mm
700mm
720mm

Others
Operating speed
15-20Km/h
Maximun gradeability
25 degrees

electro-tricycle for mining,3 wheel electric bicycle,motorcycles,cargo bicycleelectro-tricycle for mining,3 wheel electric bicycle,motorcycles,cargo bicycleelectro-tricycle for mining,3 wheel electric bicycle,motorcycles,cargo bicycleelectro-tricycle for mining,3 wheel electric bicycle,motorcycles,cargo bicycle

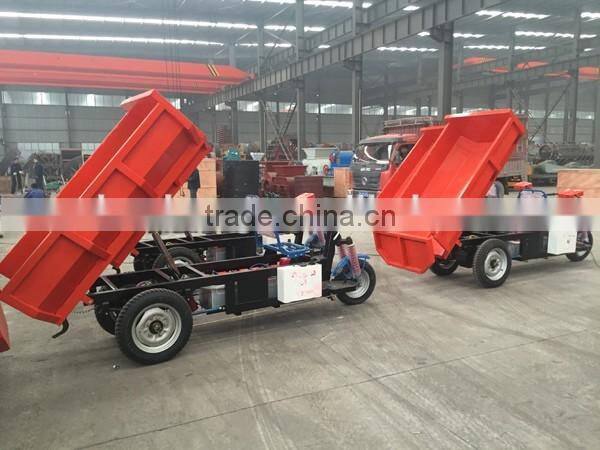

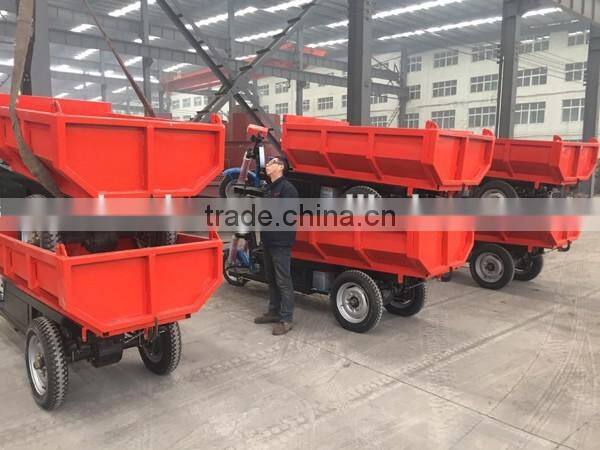

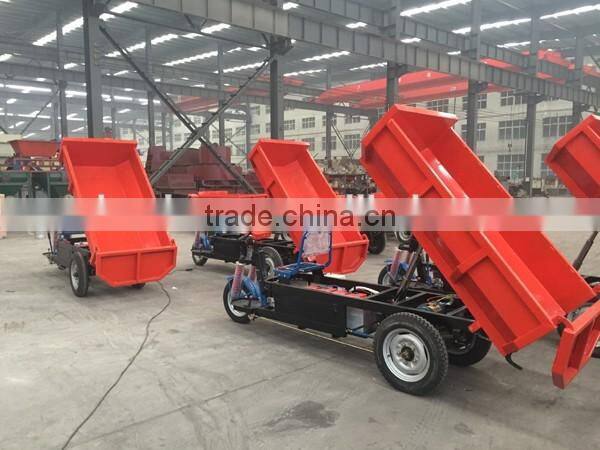

Features for small dump truck:

1) No pollution, high performance, low loss and energy saving.

2) Easy to operate and maintain without technical training.

3) Heavy load,wide applying.

4) It is the ideal transport in mining,flourmill,brickyard,etc.

clients vitist factory

electro-tricycle for mining,3 wheel electric bicycle,motorcycles,cargo bicycleelectro-tricycle for mining,3 wheel electric bicycle,motorcycles,cargo bicycle

Notice :

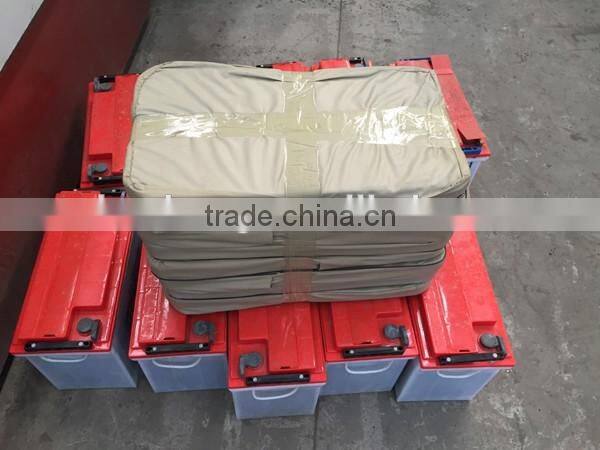

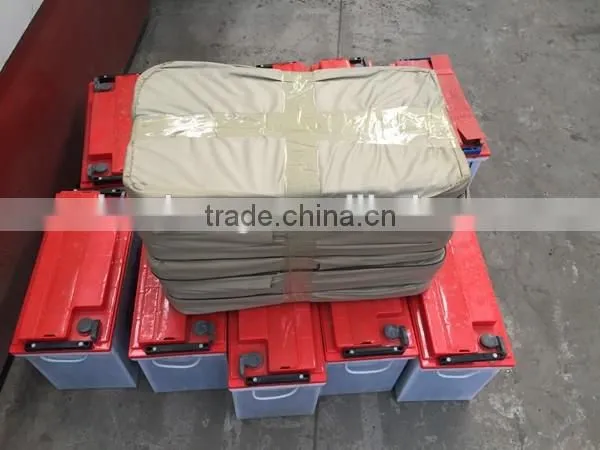

Electric tricycle main power comes from the battery, most of the electric tricycle battery is lead-acid batteries, so the life of the battery affect the driving distance of electric tricycle, battery maintenance from the following six aspects.

1, the correct time to master the battery to charge the discharge depth of 60% -70% when the best charge of a charge.

2, is strictly prohibited when the loss of electricity Deficiency status is not charged in time after use of the battery. In the loss of power storage battery, it is prone to sulfate, lead sulfate crystals attached to the plate, plug the ion channel, resulting in insufficient charge, the battery capacity decreased. Loss of power state The longer the idle time, the more battery damage. Therefore, the battery is not idle, it should be charged once a month, so that can better maintain the battery health.

3, to avoid large current discharge electric vehicles in the start, manned, uphill, please use the pedal power, try to avoid instantaneous high-current discharge. High current discharge lead to lead sulfate crystals easily lead to damage the physical properties of the battery plate.

4, to prevent exposure to high temperature environment will increase the internal pressure of the battery so that the battery pressure limiting valve was forced to automatically open, the direct consequence is to increase the battery water loss, and battery water loss will inevitably lead to decreased cell activity, accelerated plate softening , Charging the shell heat, the shell from the drum, deformation and other fatal injuries.

5, to avoid charging the plug when the charger output plug loose, the contact surface oxidation and other phenomena will lead to charging plug heating, heating time is too long will cause the charging plug short-circuit, direct damage to the charger, bring unnecessary losses. So found that the situation should be promptly removed oxide or replace the connector.

6, the periodic inspection in the course of the use of electric vehicles if the continued mileage in a short time a sudden drop of more than ten kilometers, it is very likely that at least one battery pack cell breakage, plate softening, plate active substance Shedding and other short-circuit phenomenon. At this point, should be promptly to the professional battery repair institutions to check, repair or with groups. This can extend the life of the battery pack to the greatest extent possible to save money.

Packaging & Shipping

 electro-tricycle for mining,3 wheel electric bicycle,motorcycles,cargo bicycleelectro-tricycle for mining,3 wheel electric bicycle,motorcycles,cargo bicycleelectro-tricycle for mining,3 wheel electric bicycle,motorcycles,cargo bicycleelectro-tricycle for mining,3 wheel electric bicycle,motorcycles,cargo bicycle



contact information



Name ;Jessica

we chat ;+8613949058207

QQ;2623204968

whatsapp;+8613949058207

phone number ;+8613949058207

I always being on serve you.
