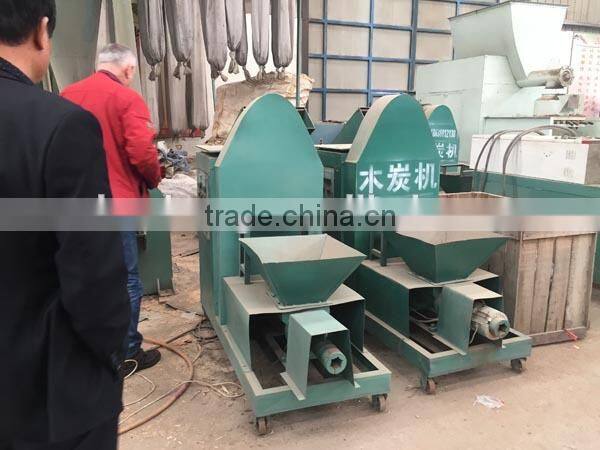

Working Principle of wood sawdust briquette machine:
It's a device to make the coal powder into different shapes bar or rod shape briquettes.
The working process is like the following: the motor transfers the power to the transmission through
triangle belt, then the output shaft on the transmission transfers the power to the propeller shaft, finally
the propeller on the propeller shaft pushes the coal powder into the mold and out, then the ideal high
pressure coal rod is generated. This process is very simple, and it's easy to operate.
Introduction of wood sawdust briquette machine:
The new charcoal making machines we have designed ensure higher product quality.
The machines have a higher capacity.
The Briquette press can be used to extrude charcoal bar in different shape as hexagon, cylinder or
quadrangle under high pressure and high temperature.
This charcoal press owns the advantages of high production capacity,high density, low power
consumption, low wear and also the output is with high heat, no pollution, and longer burning.
Technical parameter:
| Model | LTM-50 | LTM-60 | LTM-80 |
| Capacity (kg/h) | 180-200 | 200-250 | 200-300 |
| Motor power(kw) | 15 | 15-18.5 | 18.5 |
| Diameter of briquettes | 40mm,45mm,50mm | 50mm,60mm | 70mm,80mm |
| size | 1.7x0.66x1.5mm | 1.7x0.66x1.6mm | 1.7x0.66x1.6mm |
