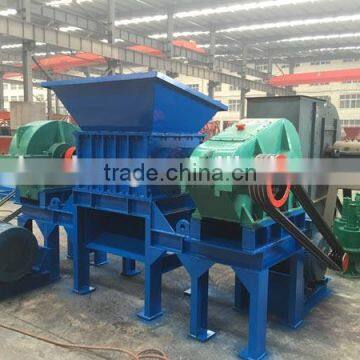

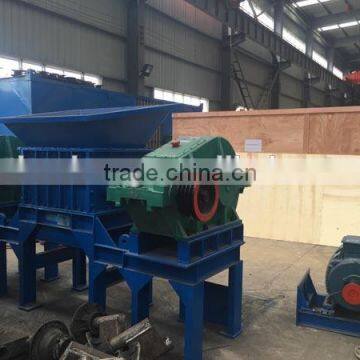

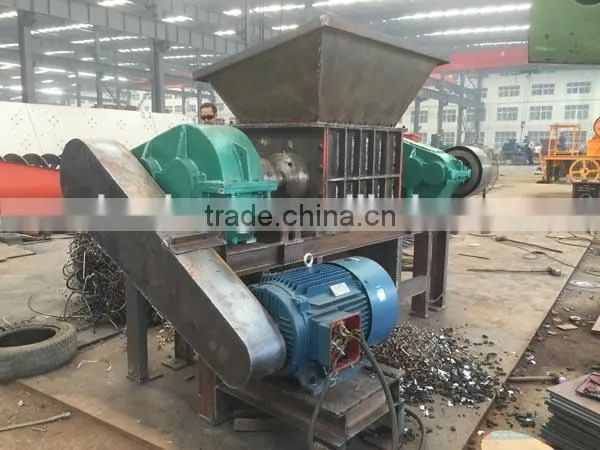

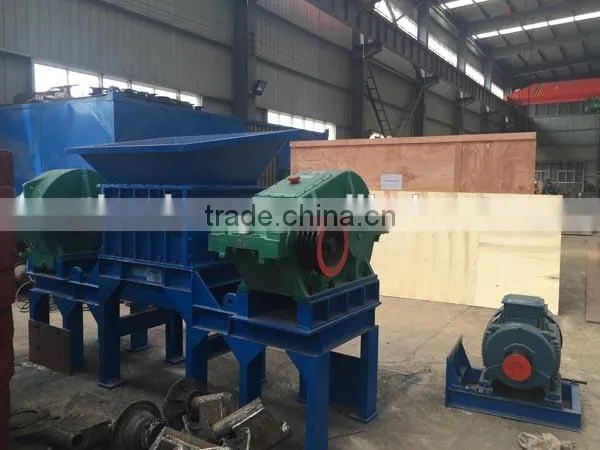

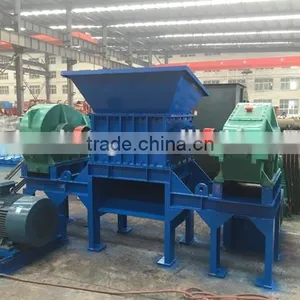

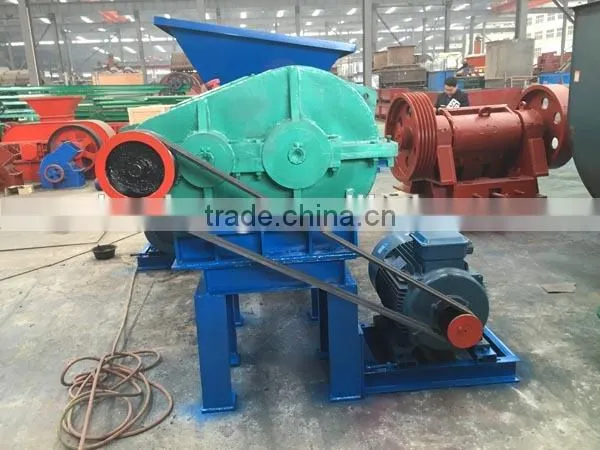

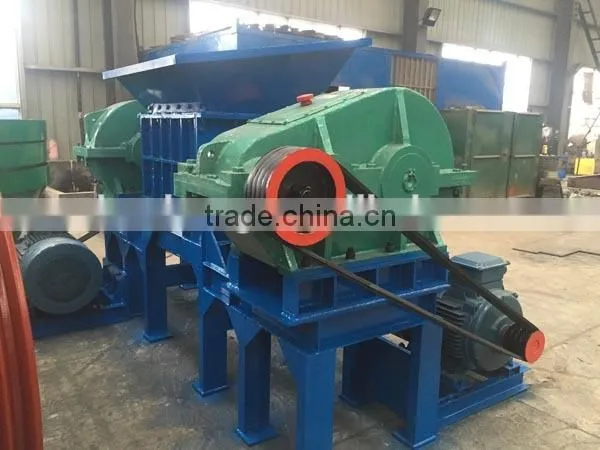

Help CenterScrap Shredder, Plastic Buckets Shredder Machine
Related Products
-
Rubber Recycling Machine ,scrap ShredderUS$ 5,000 - 10,000MOQ: 1 Set -
Durable Double Shafts Waste Tire ShredderUS$ 11,000 - 12,000MOQ: 1 Set
-
Waste Tire Shredder Machine.rubber Crusher ,tyre Recycling MachineUS$ 4,000 - 10,000MOQ: 1 Set
-
Large Life Garbage Crusher for RectclingUS$ 1 - 99,999MOQ: 1 Set
-
Good Quality Used Tire Shredder Machine for Sale/Tire Recycling/Car Tyre RecyclingUS$ 6,000 - 10,000MOQ: 1 Set
Double Shaft Shredder for pulverized material as follows:
1, all kinds of hollow containers: Plastic beverage cans, plastic buckets, drums, crates, drums
2, discarded appliances: TV, washing machine, refrigerator case
3, pipe: a large pipe, pipe fittings, PE pipe
4, waste templates: wooden pallets, plastic pallets, pallet truck
5, discarded tires: car tires, truck tires
6, scrap metal: car shell, aluminum, scrap aluminum casting, engine casing, as well as the thickness of the steel plate in the lead 5mm or less
7, food waste, garbage, animal carcasses, RDF derivatives, medical waste, biological straw, garden garbage
8, the first plastic material, paper mills strand

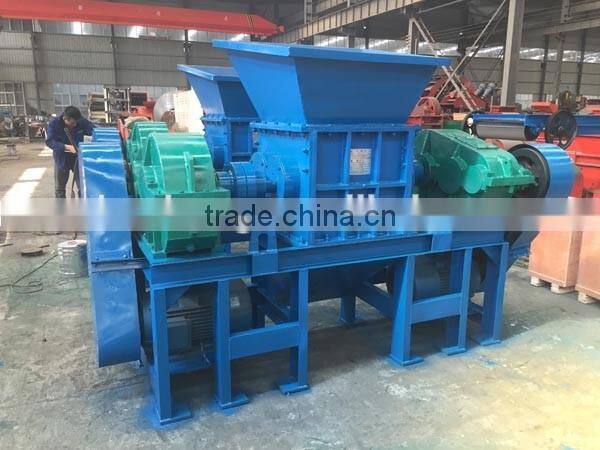

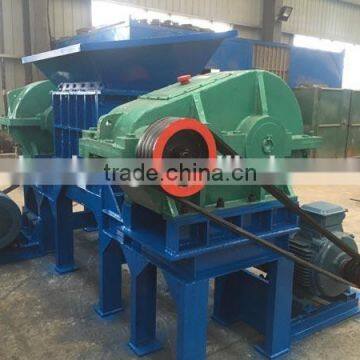

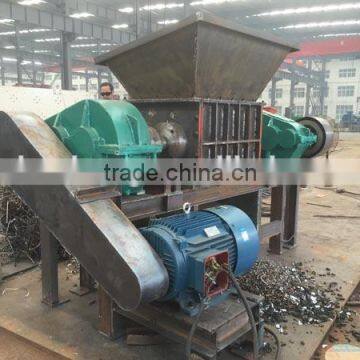

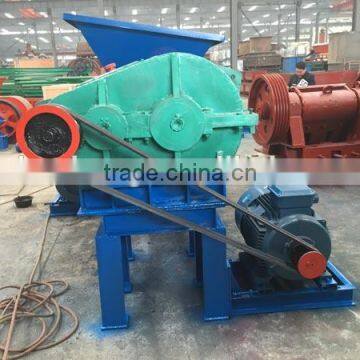

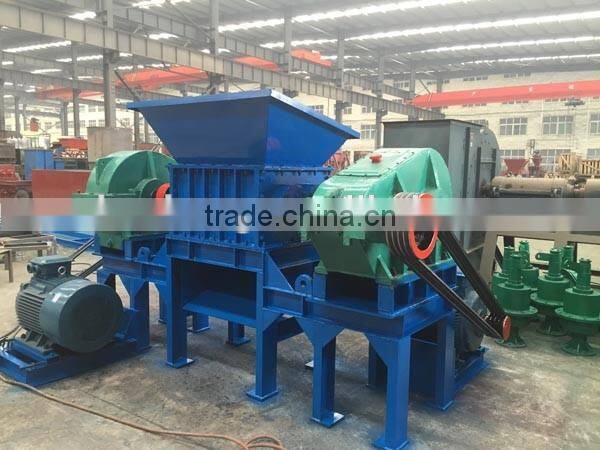

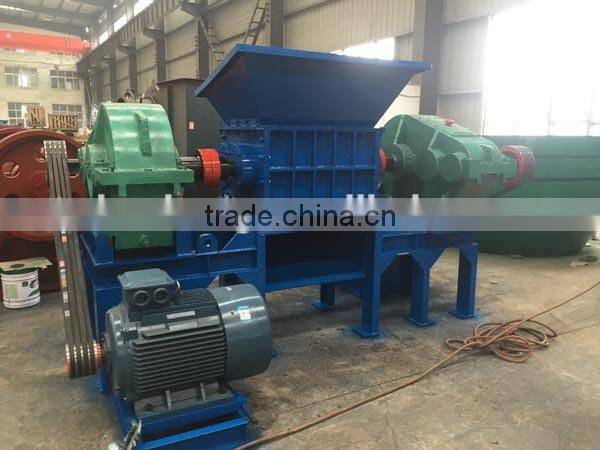

Double shaft shredder machine working principle
The driving force is two motors, there is a spacer between the blades Split Level installation between the blade and the blade installation,and the formation of a mutual shearing force by the motor,so that can shredder the rubbish in the double shaft shredder machine
1 Main breaker
Equipment main body welded steel body with high-quality residual stress elimination / overall machining, to make sure the stability of the equipment in the long time heavy-duty.

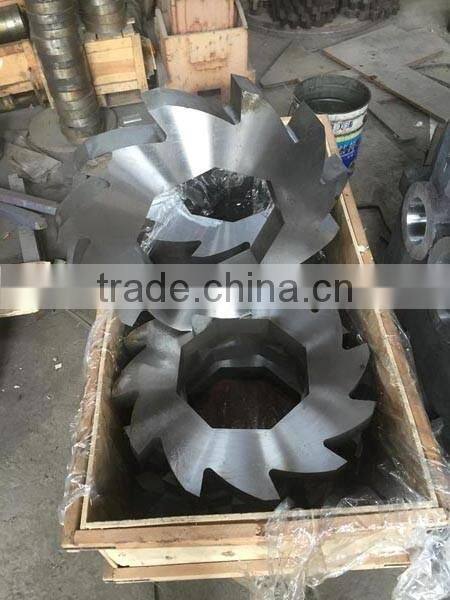

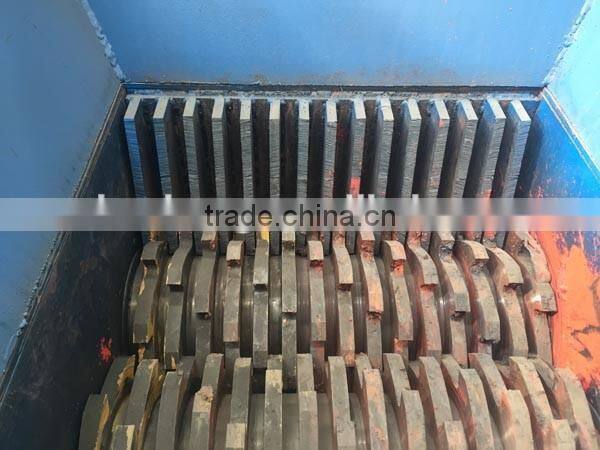

2.the part of blade
Knife material adopt special alloy tool steel rough forging, precision machining, heat-treatment and repeatedly frozen heat treatment technology is made consistent with the overall hardness and toughness can use repeated repair, and ensure that the blade ‘s excellent cutting performance and long service life
the shredder blade thickness is divided into 15mm, 20mm, 40mm, 50mm, 75mm, 100mm according to the particle size after crushing the object to select blade
3.Bearing / seal.
Bearing pedestal easy to remove
, can quickly remove the moving knife, fixed blade, bearings and other components, easy maintenance and replacement of tools, the unique seal structure effectively blocking the contact was broken and fats, processed liquid material can protect the bearings and other gear
4.cutter shaft
Heavy-duty high-strength special steel processing refined, more reasonable fit for the cutting tool to provide a strong impetus.
Double shaft shredder machine technical parameters
Model |
2000 |
1600 |
1200 |
1000 |
800 |
600 |
Power(kw) |
55*2 |
45*2 |
37*2 |
30*2 |
15*2 |
11*2 |
Speed(r/min) |
30 |
30 |
30 |
30 |
30 |
30 |
Capacity(t/h) |
10-25 |
5-15 |
3-10 |
2-10 |
1-5 |
1-3 |
Weight(t) |
18 |
15 |
12 |
8 |
3.5 |
2.8 |
No. Of Blades(pic) |
50 |
40 |
30 |
26 |
20 |
20 |
according to the particle size after crushing the object to select blade | ||||||
Blade diameter(mm) |
Φ550 |
Φ400 |
Φ400 |
Φ400 |
Φ300 |
Φ300 |
Output size (cm) |
3-10 |
30-10 |
3-10 |
3-10 |
3-10 |
3-10 |
according to the particle size after crushing the object to select blade | ||||||
Size (m) |
5.5*2.2*2.9 |
4.5*2.2*2.4 |
4*2.1*2.2 |
3*2*1.9 |
3*1.2*1.8 |
2.9*1.2*1.8 |
